Parking Distance Warning operation

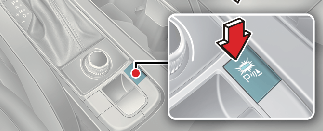

Control switch

Parking Safety button

Press the Parking Safety () button to turn on Forward/Reverse Parking Distance Warning. Press the button again to turn off the function.
When the gear is shift to R (Reverse), Parking Distance Warning will automatically turn on (Parking Safety button indicator on).

Forward Parking Distance Warning

Forward Parking Distance Warning will operate under the following conditions.

The gear is shifted from R (Reverse) to D (Drive) with Reverse Parking Distance Warning on
The gear is in D (Drive) and the Parking Safety () button indicator light is on
Forward Parking Distance Warning warns the driver when the vehicle is in D (Drive)

(If Settings → Driver Assistance → Parking Safety → Parking Distance Warning Auto On on the instrument cluster or Settings → Vehicle → Driver Assistance → Parking Safety → Parking Distance Warning Auto On on the infotainment system selected)

NOTICE

Forward Parking Distance Warning operate when the vehicle's speed is below 6 mph (10 km/h).
When in R (Reverse), no warning is issued for objects in front. Only objects within 24 in (60 cm) outside the front will be alerted.
If you do not select Parking Distance Warning Auto On, the Forward Parking Distance Warning function will turn off (the indicator light in the button will turn off) when the vehicle speed exceeds 18 mph (30 km/h). Even if you drive below 6 mph (10 km/h) again, the function will not turn on automatically.

Warning indication and warning sound

Distance from object	Warning indicator	Warning sound
24~40 in (60~100 cm)		Buzzer beeps intermittently
12~24 in (30~60 cm)		Beeps more frequently
within 12 in (30 cm)		Beeps continuously

Distance

from object

Warning indicator

Warning

sound

24~40 in

(60~100 cm)

Buzzer beeps

intermittently

12~24 in

(30~60 cm)

Beeps more

frequently

within 12 in

(30 cm)

Beeps

continuously

The corresponding indicator will appear whenever each ultrasonic sensor detects a person, animal or object in its sensing range. Also an audible warning will sound.
When more than two objects are detected at the same time, the closest one will be warned with an audible warning.
When the distance from the object is more than 24 in (60 cm), it is not displayed on the instrument cluster.
The shape of the indicator in the illustration may differ from the actual vehicle.

Reverse Parking Distance Warning

Reverse Parking Distance Warning will operate under the following conditions.

The gear is shifted to R (Reverse).
Vehicle speed is below 6 mph (10 km/h).
