Lane Keeping Assist operation
Turning Lane Keeping Assist On/Off
-
With the vehicle ON, press and hold the Lane Driving Assist button to turn on/off Lane Keeping Assist. If Lane Keeping Assist is activated, the indicator (
) will be displayed on the cluster.
-
The gray indicator light (
) will be displayed on the cluster when Lane Keeping Assist is on standby.
-
The green indicator light (
) will be displayed on the cluster when Lane Keeping Assist is available.
Warning and control
The Lane Keeping Assist function is warned and controlled in the following way.
-
Lane Departure Warning
-
Lane Keeping Assist

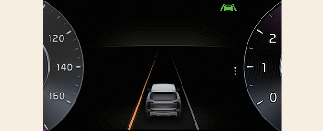

Lane Departure Warning
Lane Departure Warning will warn the driver that the vehicle is departing from with a green () indicator light, lane blinking in the direction the vehicle departed from, an audible warning, and steering wheel vibration.
Lane departure warning can be activated in the following conditions.
-
Your driving speed: Approximately 40~120 mph (60~200 km/h)

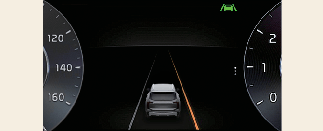

Lane Keeping Assist
The green () indicator light will blink on the cluster, and the steering wheel will make adjustments to prevent that the vehicle is departing
from the projected lane in front.
Lane Keeping Assist can be activated in the following conditions.
-
Your driving speed: Approximately 40~120 mph (60~200 km/h)

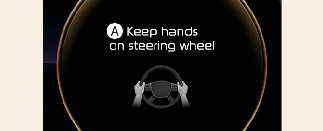

Hands-off warning
A: Keep hands on steering wheel
If the driver takes their hands off the steering wheel for several seconds, the warning message will appear on the cluster, and an audible warning will sound in stages.
-
The steering wheel may not be assisted if the steering wheel is held very tight or the steering wheel is steered over a certain degree.
-
Lane Keeping Assist does not operate at all times. It is the responsibility of the driver to safely steer the vehicle and to maintain the vehicle in its lane.
-
The hands–off warning message may appear delayed depending on road conditions. Always have your hands on the steering wheel while driving.
-
If the steering wheel is held very lightly, the hands–off warning message may appear because Lane Keeping Assist may not recognize that the driver has their hands on the steering wheel.
-
If you attach objects to the steering wheel, the hands-off warning may not work properly.
-
Even though the steering is assisted by Lane Keeping Assist, the driver may control the steering wheel.
-
The steering wheel may feel heavier or lighter when the steering wheel is assisted by Lane Keeping Assist than when it is not.
-
When lane markings (or road edges) are detected, the lane lines on the cluster will change from gray to white and the green (
) indicator light will appear.
-
With Lane Keeping Assist on, when lane markings (or road edges) are detected, the green lane lines on the cluster may appear.

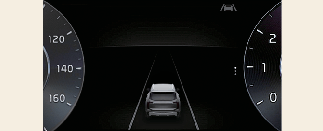

Lane undetected

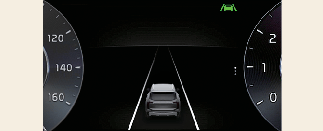

Lane detected
-
The images and colors in the instrument cluster may differ depending on the cluster type or theme selected from the settings menu.
-
For more details on setting the functions in the infotainment system Vehicle Settings, refer to More Details.
