Adjusting the rear seat

The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

WARNING

  • The purpose of the fold-down rear seatbacks is to allow you to carry longer objects that could not be accommodated in the cargo area.

  • Never allow passengers to sit on top of the folded down seatback whilst the vehicle is moving. This is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sudden stop. Objects carried on the folded down seatback should not extend higher than the top of the front seatbacks. This could allow cargo to slide forward and cause injury or damage during sudden stops.

  • When you fold the seatback, hold the seatback and fold it slowly. If the seat back is folded without holding, the back of the seat could spring forward resulting in injury caused by being struck by the seat back.

  • Do not put your head or part of your body into the seat during folding seat.

  • Ensure the seatback is completely locked into its upright position by pushing on the top of the seatback. Failure to adhere to any of these instructions could result in serious injury or death in the event of crush.

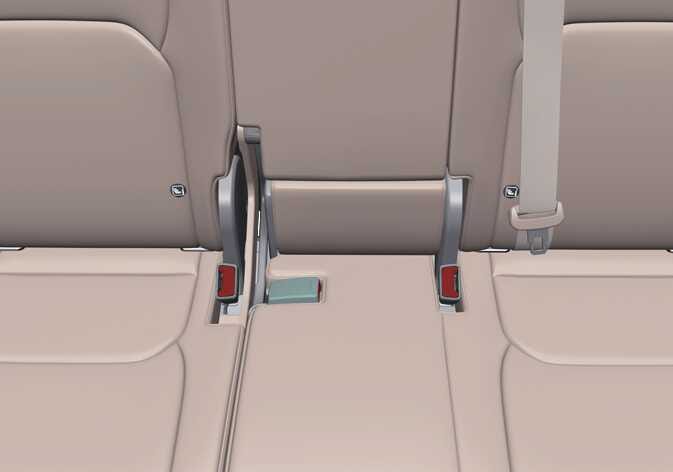

  1. Insert the rear seat belt buckle in the pocket and inside the band between the rear seatback and cushion.

    OOV025022
    OOV025023

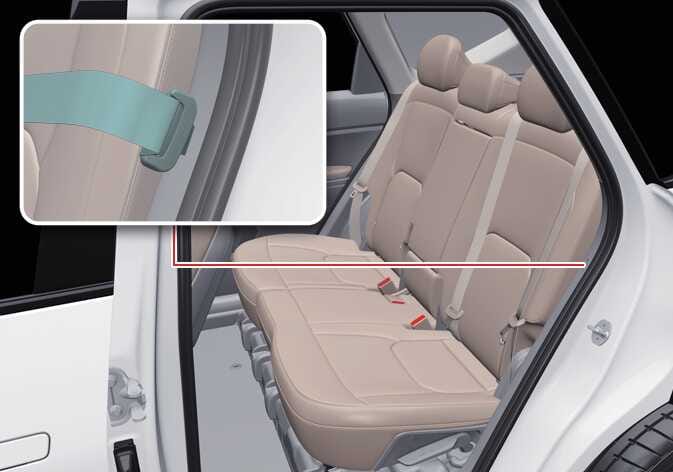

    Then, insert the seat belt into the two holes located on both sides.

  2. Set the front seatback to the upright position and if necessary, slide the front seat forward.

  3. Lower the rear headrests to the lowest position.

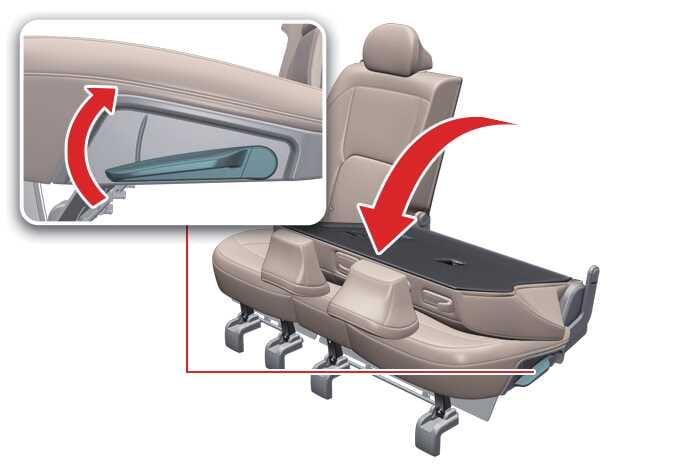

  4. Pull on the seatback folding lever, then carefully lean back on the seat and adjust it to the desired position.

    When the adjustment is complete, release the lever.

    OOV025024
CAUTION

Damaging rear seat belt buckles

When you fold the rear seatback, insert the buckle in the pocket between the rear seatback and cushion. Doing so can prevent the buckle from being damaged by the rear seatback.

CAUTION

Rear seat belts

When returning the rear seatback from a folded to an upright position, hold the seatback and return it slowly. Ensure that the seatback is completely locked into its upright position by pushing on the top of the seatback. In an accident or sudden stop, the unlocked seatback could allow cargo to move forward with great force and enter the passenger compartment, which could result in serious injury or death.

WARNING

Cargo

Cargo should always be secured to prevent it from being thrown about the vehicle in a collision and causing injury to the vehicle occupants. Do not place objects in the rear seats, since they cannot be properly secured and may hit the front seat occupants in a collision.

WARNING

Cargo loading

Make sure the vehicle is off, the gear is in P (Park) and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shifter dial is inadvertently moved to another position.

To unfold the rear seat

WARNING

Uprighting seat

When you return the seatback to its upright position, hold the seatback and return it slowly. If the seatback is returned without holding it, the back of the seat could spring forward resulting in injury caused by being struck by the seatback.

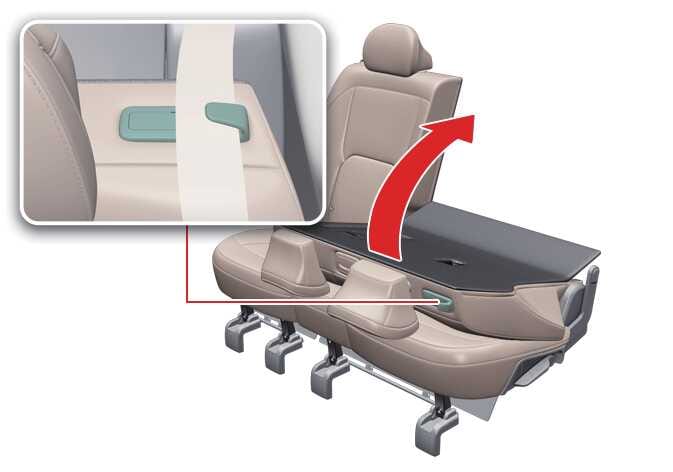

  1. Lift and push the seatback rearward by lifting up the folding lever. Be careful not to be located the seat belt between the rear seat and vehicle body. Push the seatback firmly until it clicks into place.

    OOV025025

  2. Make sure the seatback is locked in place. When returning the rear seatback from a folded to an upright position, hold the seatback and return it slowly. Ensure that the seatback is completely locked into its upright position by pushing on the top of the seatback.

  3. Return the rear seat belt to the proper position.

  4. When the seatback is completely installed, check the seatback folding lever again.

  5. If you want to tilt the rear seatback a bit more, whilst pulling on the seatback folding lever and push the top of the rear seatback towards the rear. Then release the lever and make sure that the rear seat is firmly locked.

CAUTION

  • Avoid excessive force when unfolding rear seat back.

  • Unfolding the seat with excessive force may lead to lock seat back in 2nd step. This is natural phenomenon and adjust to the desired position if necessary.
