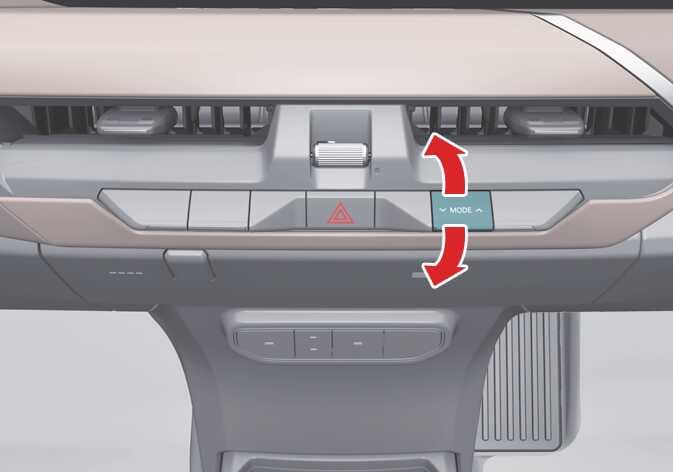

The mode selection icon/lever controls the direction of the air flow through the ventilation system.

Face-Level (2, 4, 6)

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Bi-Level (2, 3, 4, 5, 6)

Air flow is directed towards the face and the floor.

Floor-Level (1, 3, 4, 5)

Most of the air flow is directed to the floor, with a small amount of the air being directed to the windscreen, side window defrosters and side air vents.

Floor/Defrost-Level (1, 3, 4, 5)

Most of the air flow is directed to the floor and the windscreen with a small amount directed to the side window defrosters and side air vents.

Defrost-Level (1, 4)

Most of the air flow is directed to the windscreen with a small amount of air directed to the side window defrosters and side air vents.

Defrost mode

When you select the defrost mode, the following system settings will be made automatically:

• The air conditioning system will be turned on.

• The outside (fresh) air position will be selected.

• The fan speed will be set to the high speed.

To turn the defrost mode off, touch the mode icon or defrost icon again or AUTO icon.

Instrument panel vents

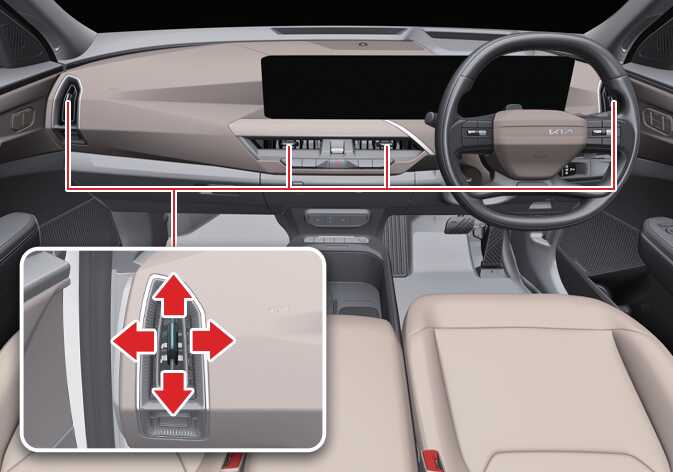

OOV035302R

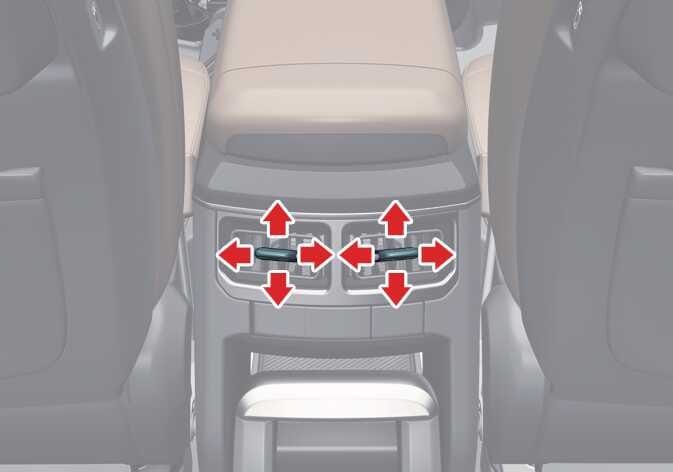

OOV035303

You can adjust the direction of air delivered from these vents using the vent control lever as shown.
