Specifications
|
Item |
DC |
AC |
|
|---|---|---|---|
|
Shape |

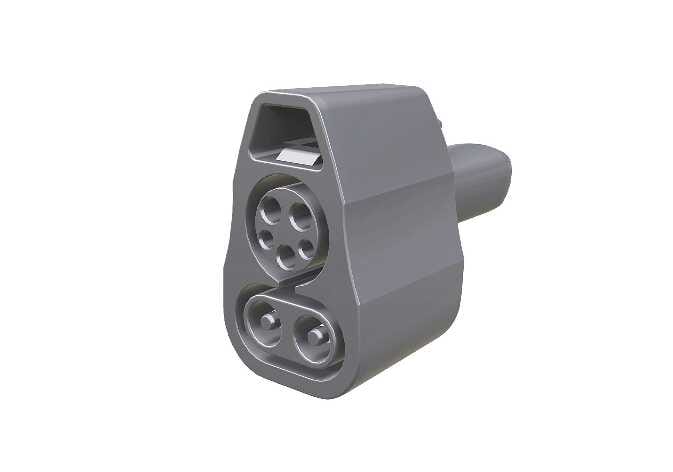

 N_CT25_A07_015_A |

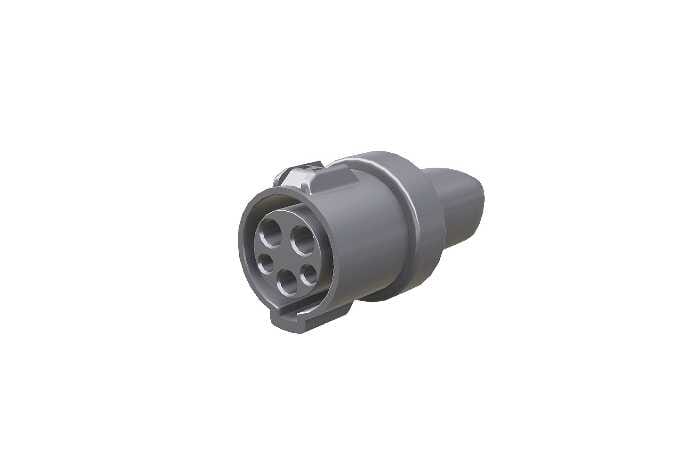

 N_CT25_A07_016_A |
|
|
Performance |
Type |
DC Adapter |
AC Adapter |
|
Rated Voltage |
1,000 VDC |
250 VAC |
|
|
Rated Current |
350 ADC at 35℃ Boost Current: 400 A for 10 min |
80A |
|
|
Maximum Current |
400 ADC |
80A |
|
|
Insulation Resistance |
100 MΩ or above |
100 MΩ or above |
|
|
Technical Specifications |
Dimensions |
120 x 75 x 140 mm (4.7 x 3.0 x 5.5 in) |
61 x 61 x 109 mm (4.7 x 3.0 x 5.5 in) |
|
Exterior Material |
Polycarbonate |
Polycarbonate |
|
|
Terminal Material |
Copper—Silver Plated |
Copper—Silver Plated |
|
|
Environmental specifications |
Operating Temperature |
-22℉–122℉ (-30℃–50℃) |
-22℉–122℉ (-30℃–50℃) |
|
Waterproof Rating |
TYPE 3R (Equivalent to IP67) |
TYPE 3R (Equivalent to IP67) |
|
|
International Standard |
UL2251 |
UL2251 |
|
You can purchase approved CCS1 Adapters from an authorized Kia dealer.
