AWD precautions

Tires

Always pay attention to tires for AWD vehicles.

AWD applies driving force to all four wheels, which means the condition of the tires greatly affects driving performance:

  • When replacing tires, be sure all 4 tires are of the same size, type, tread, brand, and load-carrying capacity. Do not equip your vehicle with tires of a different size or type than what was originally installed on your vehicle. This can affect the safety and performance of your vehicle, which could lead to steering failure or rollover and cause serious injury.

  • Rotate the front and rear tire positions every 6,000 miles (10,000 km).

  • When it is cold outside, you should check each tire monthly and maintain the inflation pressure recommended on your Kia placard or tire inflation pressure label.

  • Install tire chains only on the front tires of your AWD vehicle, and keep your travel distance as short as possible to prevent damage to the AWD system. For more information, refer to Winter driving.

Towing

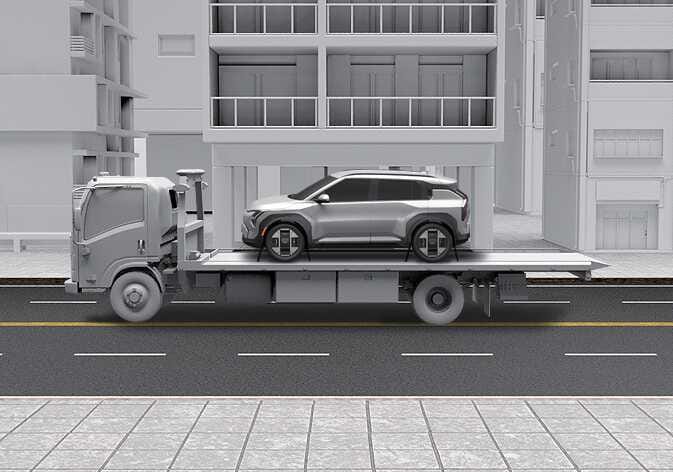

OSVM116002N

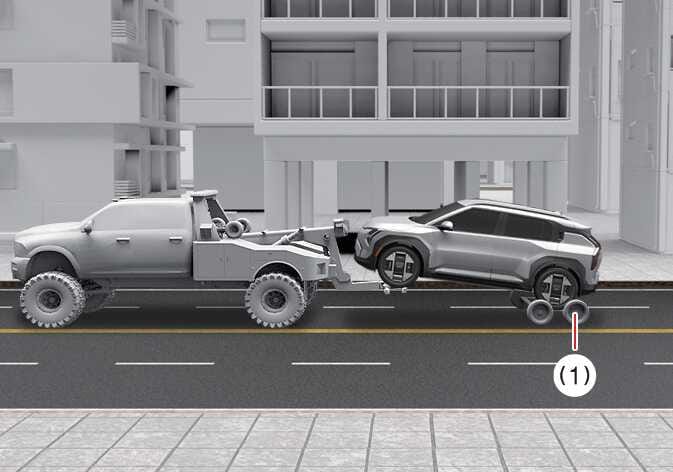

OSVM116003N

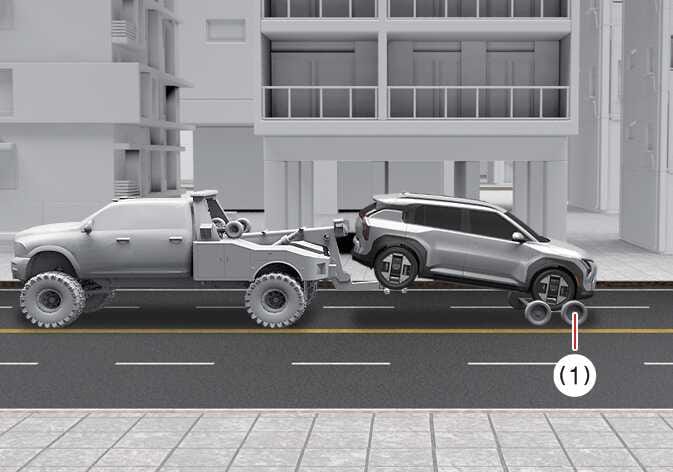

OSVM116004N

  1. Wheel dollies

CAUTION

The AWD vehicle should never be towed with the wheels on the ground. Always use wheel dollies or flatbed. If not, the power electric system and the AWD system could be seriously damaged.

For more information, refer to Towing.

Vehicle inspection

  • When the vehicle is on a lift, do not operate the front and rear wheels separately. Operate all four wheels together.

  • Never apply the parking brake while running the vehicle on a lift, as this might damage the AWD system.

WARNING

Your vehicle is equipped with tires that make handling and riding in your vehicle safer. Do not use tires or wheels that are different in size and type from the original ones. This can affect the safety and performance of your vehicle, which could lead to steering failure or a rollover and result in serious injury. When replacing the tires, be sure that all four tires and wheels are the same size, type, tread, and brand and have the same load-carrying capacity.

CAUTION

Jacked vehicle

While AWD vehicle is being raised on a jack, never start the vehicle or cause the tires to rotate. If rotating tires touch the ground, your vehicle could move the jack and jump forward.

TIP

AWD vehicle cannot be towed with sling-type equipment. Use a wheel lift or flatbed equipment.

Dynamometer testing

AWD vehicles must be tested with a special 4-wheel chassis dynamometer.

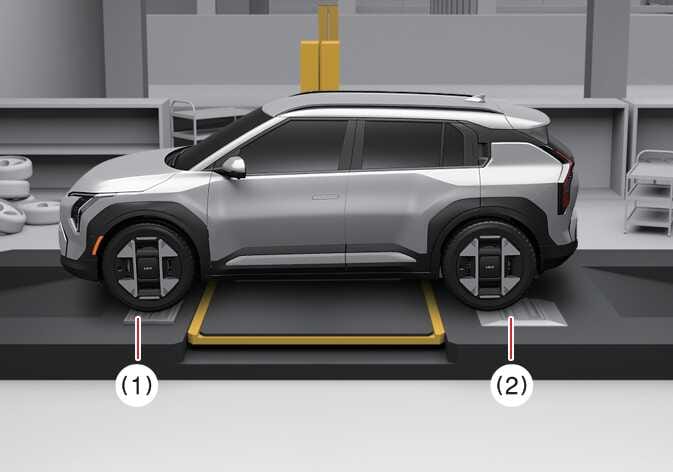

OSVM096027N

  1. Roll tester

  2. Temporary free roller

If you must use a 2WD roll tester, perform the following procedure:

  1. Check the recommended tire pressure for your vehicle.

  2. Place the driven wheels on the roll tester (1) for a speedometer test.

  3. Release the parking brake.

  4. Place the non-driven wheels on the temporary free roller (2).

WARNING

Dynamometer testing

  • Do not use tires and wheels of a different size and type from the ones originally installed on your vehicle. Doing so can affect the safety and performance of your vehicle, leading to steering failure or a rollover and causing serious injury.

  • Never start or run AWD vehicle while it is raised on a jack. The vehicle can slip or roll off the jack, causing serious injury or death to you or those nearby.

  • Keep away from the front of the vehicle while it is in gear on the dynamometer. The vehicle can jump forward and cause serious injury or death.

TIP

Never apply the parking brake while performing these tests.
