Hands-off warning
OCL4M055099N

  1. Keep hands on steering wheel

If the driver takes their hands off the steering wheel for several seconds, the warning message will appear and an audible warning will sound in stages.

  • First stage: Warning message

  • Second stage: Warning message (red steering wheel) and audible warning

OOV055188L

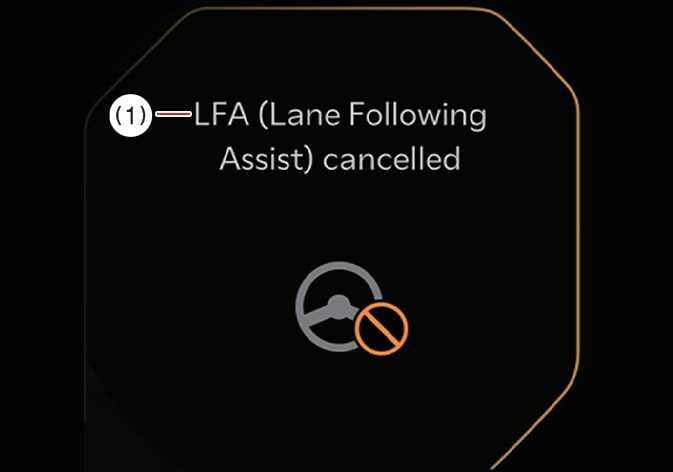

  1. LFA (Lane Following Assist) cancelled

If the driver still does not have their hands on the steering wheel after the hands-off warning the warning message will appear and Lane Following Assist will be automatically canceled.

If the driver fails to respond to the Hands-off Level 2 warning while Smart Cruise Control is operating, the Emergency Stop function will activate. For details, refer to Smart Cruise Control (SCC).

WARNING

  • The steering wheel may not be assisted if the steering wheel is held very tight or the steering wheel is steered over a certain degree.

  • Lane Following Assist does not operate at all times. It is the responsibility of the driver to safely steer the vehicle and to maintain the vehicle in its lane.

  • The hands-off warning message may appear late depending on road conditions. Always have your hands on the steering wheel while driving.

  • If gloves are worn or the steering wheel is held very lightly, the hands-off warning message may appear because Lane Following Assist may not recognize that the driver has their hands on the steering wheel.

  • If you attach objects to the steering wheel, the hands-off warning may not work properly.

  • When Lane Keeping Assist reaches its system limits, the indicator will blink white and a warning sound will alert the driver.

    • System limits: when the driver’s hands are off the steering wheel and the vehicle departs from the lane while Lane Keeping Assist is operating.

  • Lane Keeping Assist may not operate or may operate abnormally when driving on sharp curves.

TIP

  • When both lane markings are detected, the lane lines on the cluster will change from gray to white.

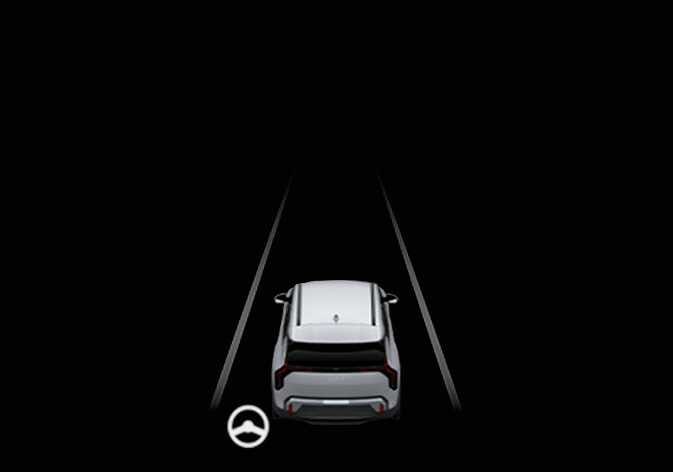

    Figure 1. Lane undetected
    OSVM006023L

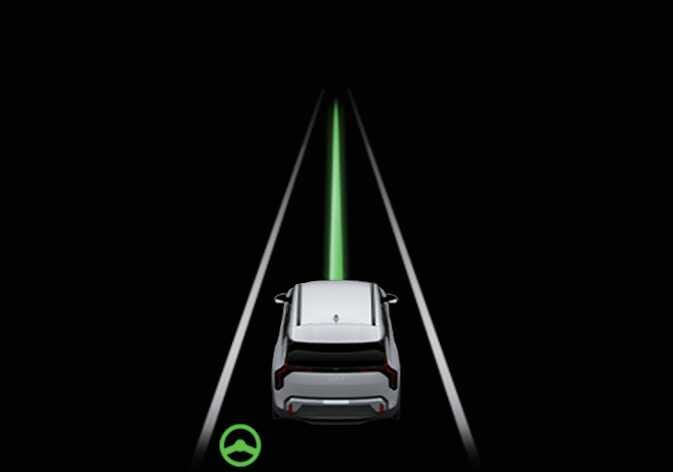

    Figure 2. Lane detected
    OSVM006022L

  • The images and colors in the instrument cluster may differ depending on the cluster type or theme selected from the settings menu.

  • The lane lines shown on the instrument cluster may differ from the actual lane markings.

  • If lane markings are not detected, steering wheel control by Lane Following Assist can be limited depending on whether a vehicle is in front or the driving conditions of the vehicle.

  • Even though the steering is assisted by Lane Following Assist, the driver may control the steering wheel.

  • The steering wheel may feel heavier or lighter when the steering wheel is assisted by Lane Following Assist than when it is not.
