Operating conditions

If Parking Collision-Avoidance Assist detects a risk of collision around the vehicle with a pedestrian or an object, it will warn the driver with an audible warning, steering wheel vibration, and warning message on the instrument cluster. When the rear monitor is activated, a warning message will also appear on the infotainment system. Emergency braking will operate in a collision-imminent situation.

Parking Collision-Avoidance Assist operates for the front and sides when in D (Forward), and for the sides and rear when in R (Reverse).

Forward/Side Safety Function

Forward/Side Parking Collision-Avoidance Assist system may operate when the following conditions are met:

  • Forward/Side Safety has been selected in the Parking Safety Settings Menu of the Infotainment System

  • The liftgate and doors are closed

  • Electronic parking brake (EPB) has been turned off

  • Shifting into R (Reverse) or D (Drive)

  • Driving at 2.5 mph (4 km/h) or less (for pedestrians and objects)

  • Parking Collision-Avoidance Assist components such as the Wide view camera and the ultrasonic sensors are in normal conditions

The braking control is released approximately 2 seconds after shifting to D (Forward). Immediately press the brake pedal and check the surroundings. The braking control is also released in the following situations:

  • Shifting to P (Parking) or R (Reverse)

  • Applying sufficient force to the brake pedal

Rear Safety Functions

Reverse Parking Collision-Avoidance Assist system may operate when the following conditions are met:

  • The liftgate and doors are closed

  • Electronic parking brake (EPB) has been turned off

  • Shifting into R (Reverse)

  • Driving at 6.2 mph (10 km/h) or less (for pedestrians)

  • Driving at 2.5 mph (4 km/h) or less (for objects)

  • Parking Collision-Avoidance Assist components such as the wide-rearview camera and the rear ultrasonic sensors are in normal conditions

The braking control is released approximately 5 minutes later. Before it is released, press the brake pedal and check the surroundings. The braking control is also released in the following situations:

  • Shifting to P (Parking) or D (Forward)

  • Applying sufficient force to the brake pedal

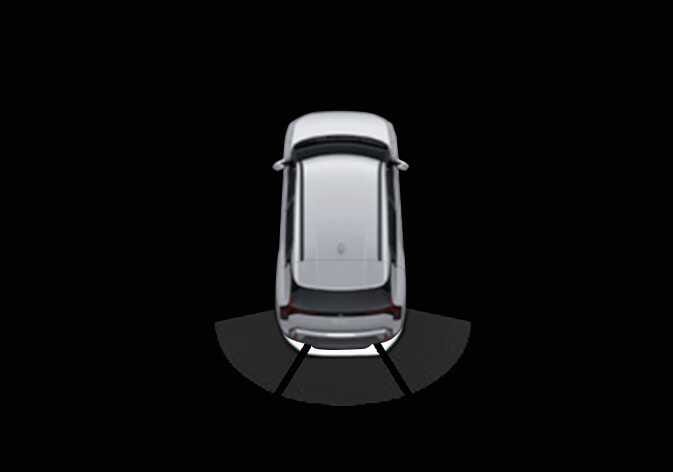

OSVM006045L

When Parking Collision-Avoidance Assist activates, a line appears behind the vehicle image in the instrument cluster.
