Front wiper blade replacement (Type A)

OSVM126006L_2

To replace the wiper blade, lift the arm first and replace the windshield wiper blades as per procedure.

NOTE

Wiper arms

Do not allow the wiper arm to fall against the windshield, as it may crack or chip the glass.

  1. Raise the wiper arm.

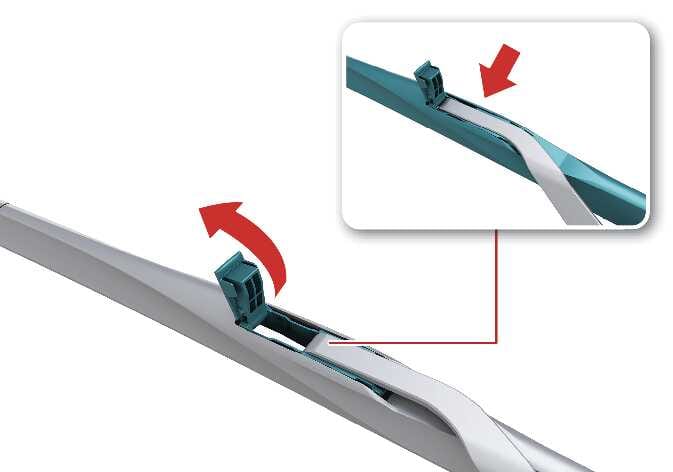

  2. Lift up the wiper blade clip. Then pull down the blade assembly and remove it.
    N_SP3i26_B12_006_1_E

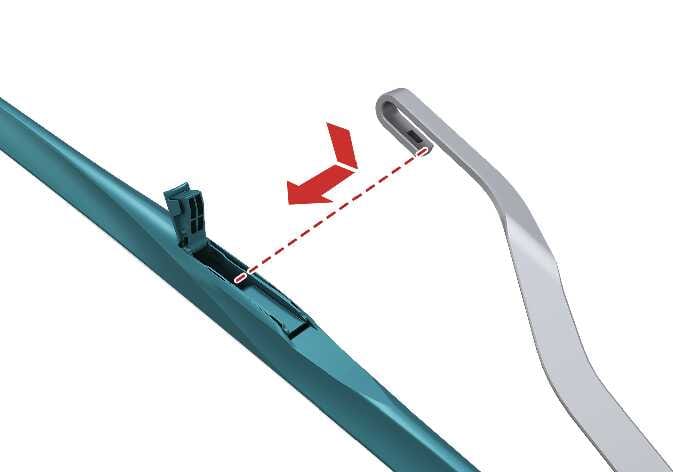

  3. Install the new blade assembly.
    N_SP3i26_B12_007_E
  4. Make sure that both blade assemblies are installed firmly by trying to pull them slightly.
  5. Return the wiper arms to the windshield.
  6. Start the vehicle to the ON position to return the wiper arms to their normal operating position.
