Fuse/relay panel description
Refer to the owner's manual for fuse/relay names and capacities.
While the fuse panel descriptions in this manual are accurate at the time of printing, not all fuse panel descriptions may apply to your vehicle.

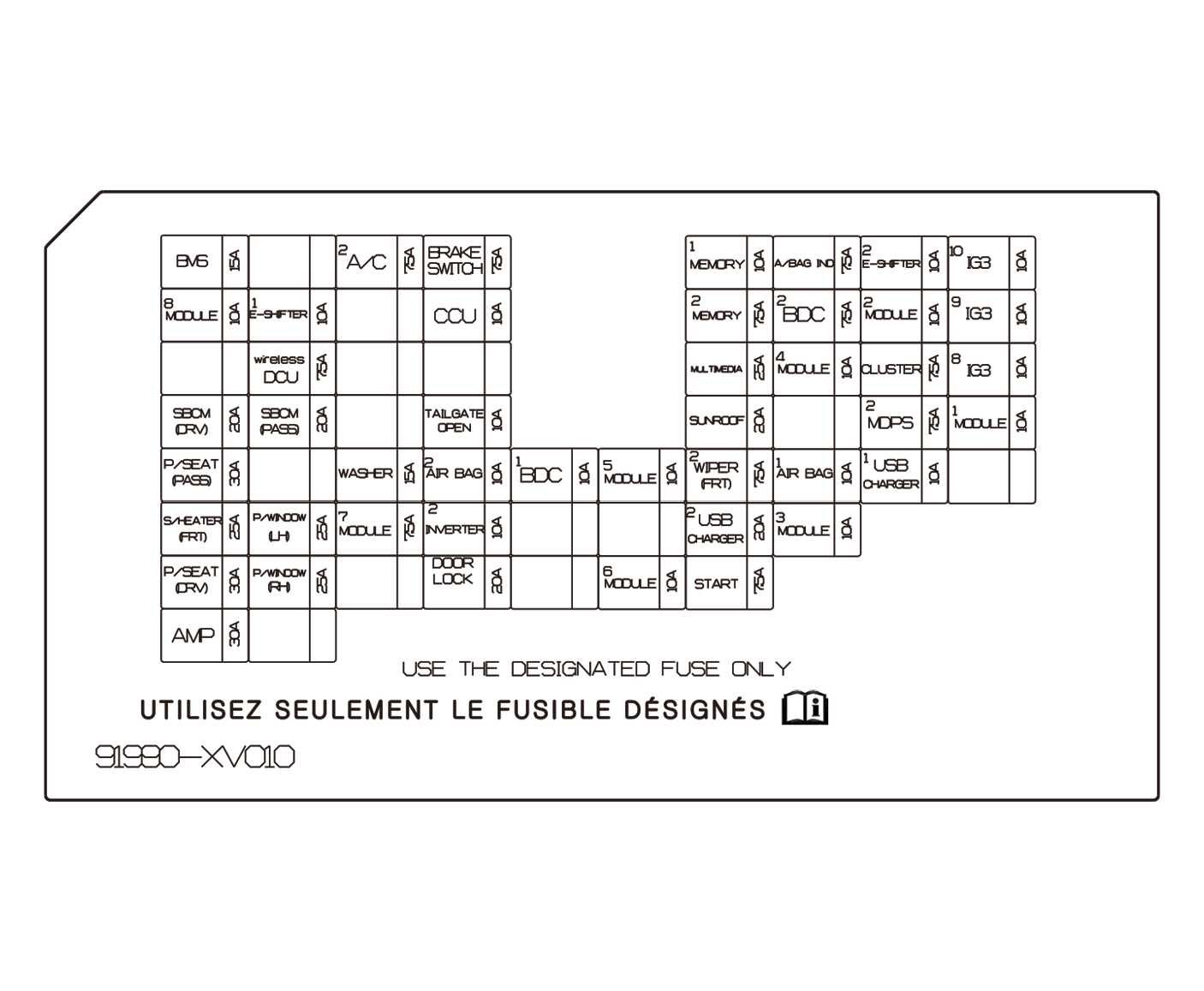

Driver side fuse panel
 OSVM126010L |
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
START |
MICRO 7.5A |
|
|
USB CHARGER1 |
MICRO 10A |
|
|
MODULE1 |
MICRO 10A |
IBU,ADAS_PRK,DCU,CCNC,IAU,VDMS, ADP, ADAS, AMP_HARM |
|
AIR BAG1 |
MICRO 10A |
ACU, ODS |
|
A/BAG IND |
MICRO 7.5A |
OHC LAMP |
|
E-SHIFTER2 |
MICRO 10A |
SBW_LEVER |
|
CLUSTER |
MICRO 7.5A |
CLUSTER, HUD |
|
BDC2 |
MICRO 7.5A |
BDC |
|
MDPS2 |
MICRO 7.5A |
MDPS |
|
MODULE2 |
MICRO 10A |
CCU, P/WDW SW, BRAKE SW |
|
MODULE3 |
MICRO 10A |
FR CAMEARA,ADAS, ADAS, RR INVERTER, C_RADAR_RR/RL, FCA |
|
MODULE4 |
MICRO 10A |
CCNC, ICC, CPAD(HLLD), CDU, I_S_MIRR, SEAT EXTN,WPC, AMP, ADP, OBD |
|
A/C2 |
MICRO 7.5A |
DATC |
|
WASHER |
MICRO 15A |
WASHER MTR |
|
MODULE7 |
MICRO 7.5A |
BDC |
|
IG3 8 |
MICRO 10A |
CCU |
|
IG3 9 |
MICRO 10A |
CCNC, CDU, DATC, INCAR, USB CHARGER, PTC HTR SIG |
|
IG3 10 |
MICRO 10A |
DOOR SW(DRV&PASS), V2L |
|
BMS |
MICRO 15A |
BMS |
|
AMP |
MICRO 30A |
AMP |
|
P/SEAT DRV |
MICRO 30A |
DRV SEAT |
|
P/SEAT PASS |
MICRO 30A |
PASS SEAT |
|
S/HEATER FRT |
MICRO 25A |
FRT SEAT |
|
P/WINDOW LH |
MICRO 25A |
FRT LH WINDOW SW, REAR LH WINDOW SW |
|
P/WINDOW RH |
MICRO 25A |
FRT RH WINDOW SW, REAR RH WINDOW SW |
|
SBCM DRV |
MICRO 20A |
SBCM DRV |
|
SBCM PASS |
MICRO 20A |
SBCM PASS |
|
wireless DCU |
MICRO 7.5A |
DCU |
|
E-SHIFTER1 |
MICRO 10A |
SBW_LEVER SSB |
|
MODULE8 |
MICRO 10A |
ICC, ADAS, RAIN SNSR, OBD, BLOWER RLY, CC LAMP |
|
MULTIMEDIA |
MICRO 25A |
CCNC |
|
MEMORY2 |
MICRO 7.5A |
USB JACK, DATC, DATC, BDC, DATC CONT |
|
MEMORY1 |
MICRO 10A |
CLUSTER, MOOD LAMP, HUD ,ADP, ADAS, COSOLE EXTN, RADAR |
|
CCU |
MICRO 10A |
CCU |
|
BDC1 |
MICRO 10A |
BDC, UWB, DR_HDL_SW |
|
BRAKE SWITCH |
MICRO 7.5A |
STOP LAMP |
|
DOOR LOCK |
MICRO 20A |
DOOR LOCK |
|
TAILGATE OPEN |
MICRO 10A |
T_GATE LATCH |
|
MODULE5 |
MICRO 10A |
VESS |
|
AIR BAG2 |
MICRO 10A |
ACU |
|
INVERTER2 |
MICRO 10A |
REAR INVERTER |
|
MODULE6 |
MICRO 10A |
P/WDW,PTG,SEAT EXTN |
|
SUNROOF |
MICRO 20A |
SUNROOF |
|
USB CHARGER2 |
MICRO 20A |
USB CHARGER(100W) |
|
WIPER FRT2 |
MICRO 7.5A |
FRT WIPER MTR PASS'G |
|
RESERVE-START INHIBIT RLY |
PCB 4P |
Not Used |
|
LongTermLoadLatchRelay |
PCB 5P |
|
|
DOOR LOCK |
PCB 5P |
|
|
DOOR UNLOCK |
PCB 5P |
|
|
T/TURN UNLOCK RLY |
PCB 5P |
|
|
RESERVE |
PCB 5P |
Not Used |
|
RESERVE-CHILD UNLOCK |
PCB 5P |
Not Used |
|
TAILGATE OPEN |
PCB 4P |
|

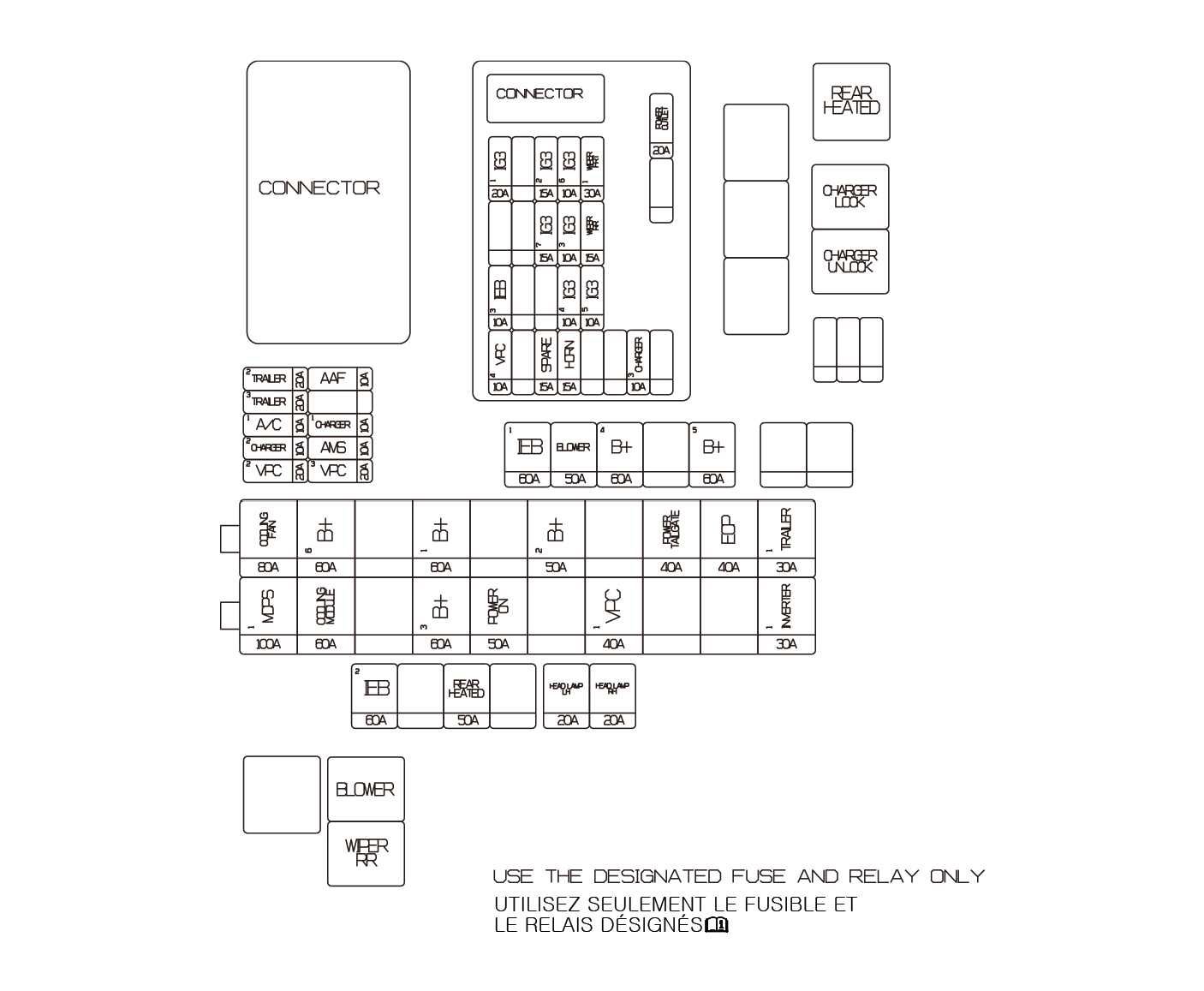

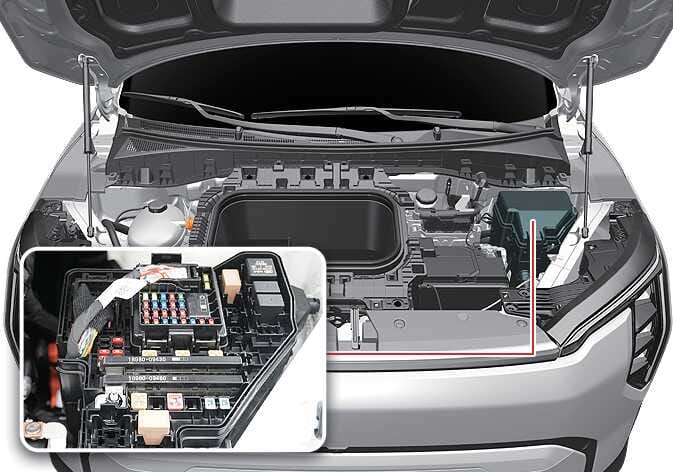

Motor compartment fuse panel
 OSVM126012L |
|
Fuse Type |
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
MULTI FUSE-1 |
MDPS1 |
MULTI 100A |
C_MDPS |
|
COOLING MODULE |
MULTI 60A |
COOLING MODULE |
|
|
RESERVE |
MULTI 60A |
Not Used |
|
|
B+3 |
MULTI 60A |
PDC B+3 |
|
|
POWER ON |
MULTI 50A |
PDC IG1/2 |
|
|
RESERVE |
MULTI 40A |
Not Used |
|
|
VPC1 |
MULTI 40A |
VPC |
|
|
RESERVE |
MULTI 40A |
Not Used |
|
|
RESERVE |
MULTI 40A |
Not Used |
|
|
INVERTER1 |
MULTI 30A |
INVERTER |
|
|
MULTI FUSE-2 |
COOLING FAN |
MULTI 80A |
COOLING FAN BLDC |
|
B+6 |
MULTI 60A |
PE JB PCB |
|
|
RESERVE |
MULTI 60A |
Not Used |
|
|
B+1 |
MULTI 60A |
PDC B+1 |
|
|
RESERVE |
MULTI 50A |
Not Used |
|
|
B+2 |
MULTI 50A |
PDC B+2 |
|
|
RESERVE |
MULTI 40A |
Not Used |
|
|
POWER TAILGATE |
MULTI 40A |
PTG |
|
|
EOP |
MULTI 40A |
EOP |
|
|
TRAILER1 |
MULTI 30A |
TRAILER |
|
|
MICRO FUSE |
TRAILER2 |
MICRO 20A |
TRAILER |
|
AAF |
MICRO 10A |
AAF |
|
|
RESERVE |
MICRO 20A |
Not Used |
|
|
A/C1 |
MICRO 10A |
DATC |
|
|
CHARGER1 |
MICRO 10A |
CDM |
|
|
CHARGER2 |
MICRO 10A |
CHARGER LOCK/UNLOCK |
|
|
AMS |
MICRO 10A |
AMS |
|
|
VPC2 |
MICRO 20A |
VPC |
|
|
VPC3 |
MICRO 20A |
VPC |
|
|
RESERVE |
MICRO 15A |
Not Used |
|
|
RESERVE |
MICRO 15A |
Not Used |
|
|
RESERVE |
MICRO 20A |
Not Used |
|
|
S/B M FUSE |
RESERVE |
S/B M 20A |
Not Used |
|
RESERVE |
S/B M 20A |
Not Used |
|
|
HEAD LAMP LH |
S/B M 20A |
H/LP |
|
|
HEAD LAMP RH |
S/B M 20A |
H/LP |
|
|
S/B LP FUSE |
IEB1 |
S/B LP 60A |
IEB |
|
BLOWER |
S/B LP 50A |
BLOWER MTR |
|
|
B+4 |
S/B LP 60A |
PDC B+4 |
|
|
RESERVE |
S/B LP 40A |
Not Used |
|
|
B+5 |
S/B LP 60A |
PDC B+5 |
|
|
IEB2 |
S/B LP 60A |
IEB |
|
|
RESERVE |
S/B LP 60A |
Not Used |
|
|
REAR HEATED |
S/B LP 50A |
REAR HEATED |
|
|
RESERVE |
S/B LP 50A |
Not Used |
|
|
PCB BLOCK |
CHARGER3 |
MICRO 10A |
VCMS, ICCU |
|
RESERVE |
MICRO 15A |
Not Used |
|
|
RESERVE |
MICRO 10A |
Not Used |
|
|
IG3 1 |
MICRO 20A |
IG3_1/2/3, E-COMP |
|
|
RESERVE |
MICRO 20A |
Not Used |
|
|
IG3 2 |
MICRO 15A |
VPC |
|
|
IG3 3 |
MICRO 10A |
ICCU_SIG |
|
|
IG3 4 |
MICRO 10A |
R_S_MODULE, COOLING FAN BLDC |
|
|
IG3 5 |
MICRO 10A |
BMS |
|
|
IG3 6 |
MICRO 10A |
RR INVERTER, FRT INVERTER |
|
|
IG3 7 |
MICRO 15A |
VCMS, CDM |
|
|
RESERVE |
MICRO 10A |
Not Used |
|
|
HORN |
MICRO 15A |
DUAL HORN, SRC |
|
|
B/ALARM HORN |
MICRO 15A |
B/ALARM HORN, PDC |
|
|
WIPER FRT1 |
MICRO 30A |
WIPER MTR |
|
|
WIPER RR |
MICRO 15A |
REAR WIPER MTR |
|
|
POWER OUTLET |
MICRO 20A |
P/OUTLET |
|
|
RESERVE |
MICRO 20A |
Not Used |
|
|
IEB3 |
MICRO 10A |
IEB |
|
|
RESERVE |
MICRO 10A |
Not Used |
|
|
RESERVE |
MICRO 15A |
Not Used |
|
|
RESERVE |
MICRO 7.5A |
Not Used |
|
|
RESERVE |
MICRO 10A |
Not Used |
|
|
RESERVE |
MICRO 10A |
Not Used |
|
|
VPC4 |
MICRO 10A |
VPC |
|
Relay |
Relay Name |
Number |
Relay Type |
|---|---|---|---|
|
Relay |
REAR HEATED |
1,2,3,4 |
3725 MINI 4P |
|
CHARGER LOCK |
5,6,7,8,9 |
H/C MICRO 5P |
|
|
CHARGER UNLOCK |
10,11, 12,13,14 |
H/C MICRO 5P |
|
|
RESERVE |
15,17, 18,19 |
H/C MICRO 4P |
|
|
RESERVE |
20,21, 22,23,24 |
H/C MICRO 5P |
|
|
RESERVE |
25,26 27,28,29 |
H/C MICRO 5P |
|
|
RESERVE |
89,90 91,92 |
3725 MINI 4P |
|
|
BLOWER |
79,81 82,83 |
H/C MICRO 4P |
|
|
WIPER RR |
84,85, 86,87,88 |
H/C MICRO 5P |

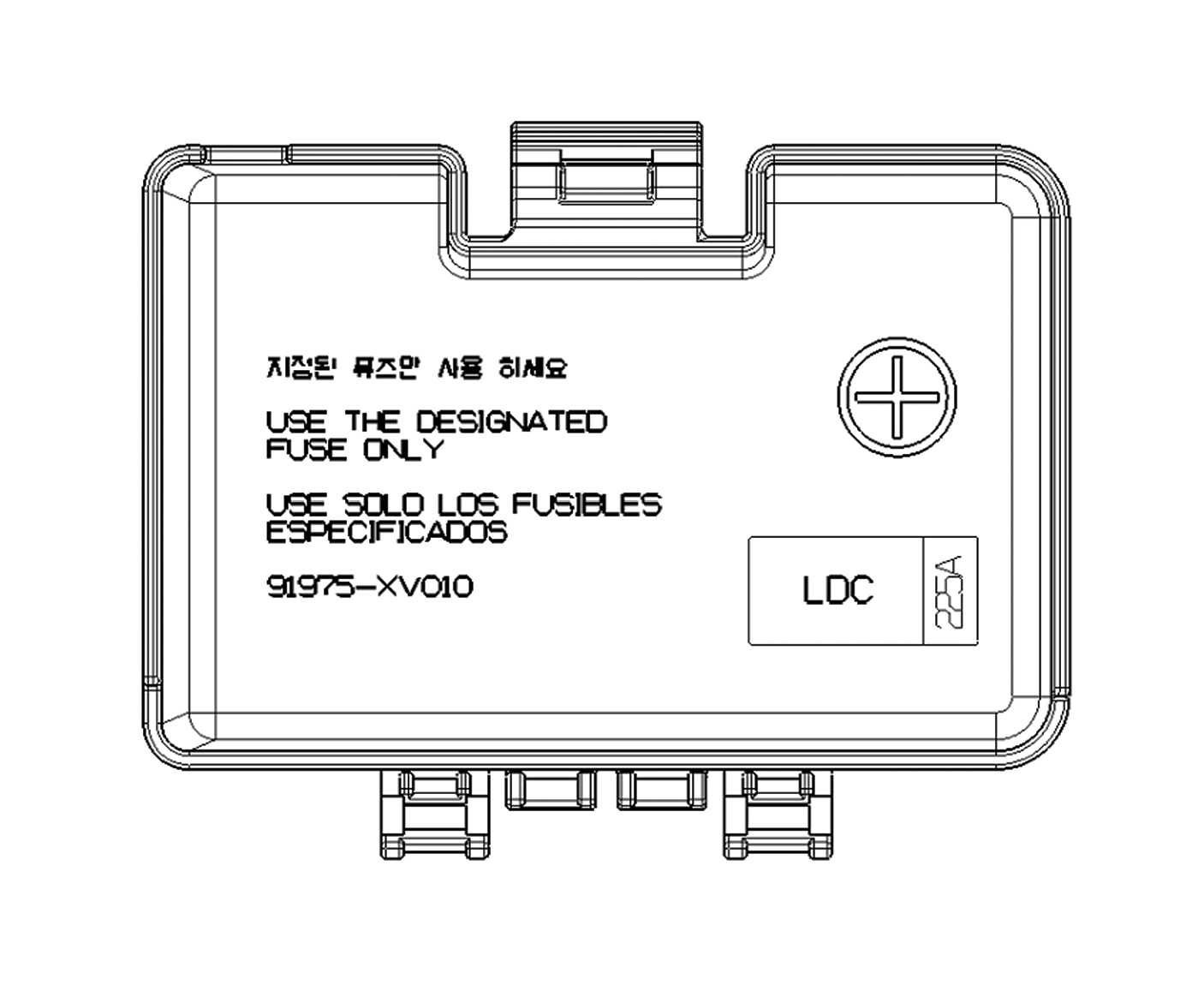

12V battery junction block fuse panel
