SRS components and functions

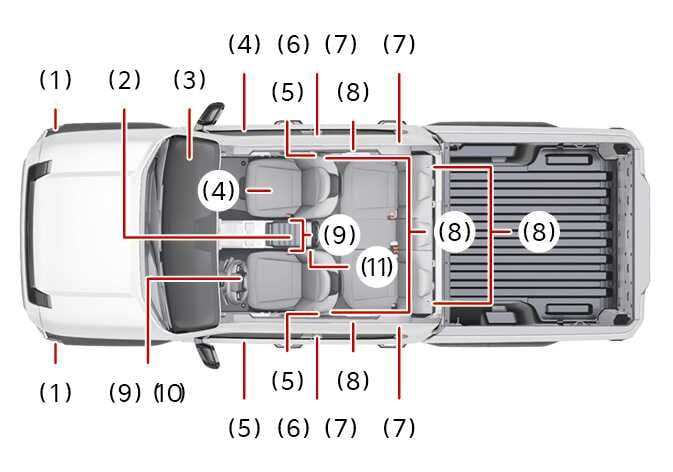

2026 Kia Tasman SRS components image. A top-down view indicates locations of sensors (1, 4, 7), air bags (3, 5, 6, 9, 11), and pre-tensioners (8) using red lines and numbers. Explains the arrangement of the supplemental restraint system.
N_TK25B008_E

  1. Front impact sensors*

  2. SRS control module (SRSCM)/rollover sensor*

  3. Passenger's front air bag module

  4. Side pressure sensors*

  5. Front side air bag modules*

  6. Curtain air bag modules*

  7. Side impact sensors*

  8. Retractor pre-tensioner assemblies*

  9. Driver's front air bag module

  10. Air bag warning light

  11. Driver's center side air bag module*

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

*: if equipped

Operating condition(s)

  • When vehicle is in ON position, the SRS air bag warning light will appear for approximately 6 seconds and go out.

WARNING

If any of the following conditions occurs, this indicates a malfunction of the SRS. In this case, have the system inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer/service partner.

  • The light does not turn on briefly when you turn the vehicle ON.

  • The light stays on after illuminating for approximately 6 seconds.

  • The light comes on while the vehicle is in motion.

  • The light blinks when the vehicle is in ON position.
