Driver's and passenger's front air bags

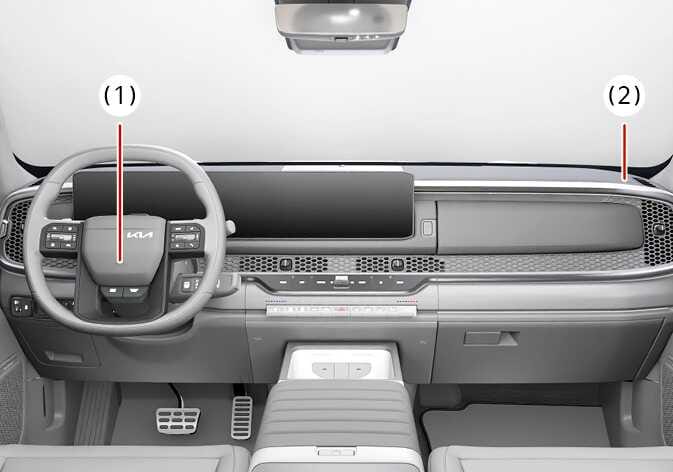

2026 Kia Tasman driver's and passenger's front air bags image. Red lines indicate the air bag locations at the center of the steering wheel (1) and the passenger's side front panel pad (2). Explains the location of the front air bag modules.
N_TK25B03_2

The indications of the system's presence are the words AIRBAG intagliated on the air bag pad cover on the steering wheel and the passenger's side front panel pad above the glove box.

The air bag modules are located both in the center of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects a sufficiently severe impact to the front of the vehicle, it will automatically deploy the front air bags

Upon deployment, tear seams molded directly into the pad covers will separate under pressure from the expansion of the air bags. Further opening of the covers then allows full inflation of the air bags.

A fully inflated air bag, in combination with a properly worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head and chest injury.

After complete inflation, the air bag immediately starts deflating, enabling the driver to maintain forward visibility and the ability to steer or operate other controls.

WARNING

Refer to the WARNING, CAUTION and NOTE of 'Air bag Precautions.'
