Mode selection
The mode selection levers control the direction of the air flow through the ventilation system.
 N_TK25C035_E |
|
Mode |
Operation |
Air flow |
|---|---|---|
|
|
Air flow is directed toward the upper body and face. |
2, 4, 6 |
|
|
Air flow is directed towards the face and the floor. |
2, 3, 4, 5, 6 |
|
|
Most of the air flow is directed to the floor, with a small amount of air directed to the windshield, side-window defrosters, and side air vents. |
1, 3, 4, 5, 6 |
|
|
Most of the air flow is directed to the floor and the windshield, with a small amount directed to the side-window defrosters and side air vents. |
1, 3, 4, 5, 6 |
|
|
Most of the air flow is directed to the windshield, with a small amount of air directed to the side-window defrosters and side air vents. |
1, 4 |

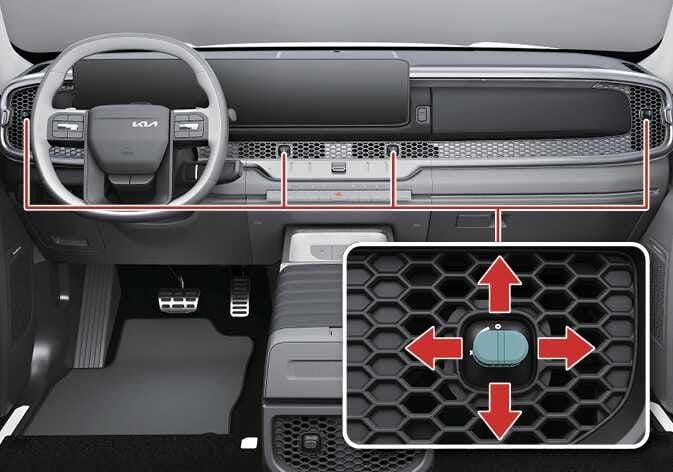

Instrument panel vents
 N_TK25C048_1_E |
 N_TK25C099 |

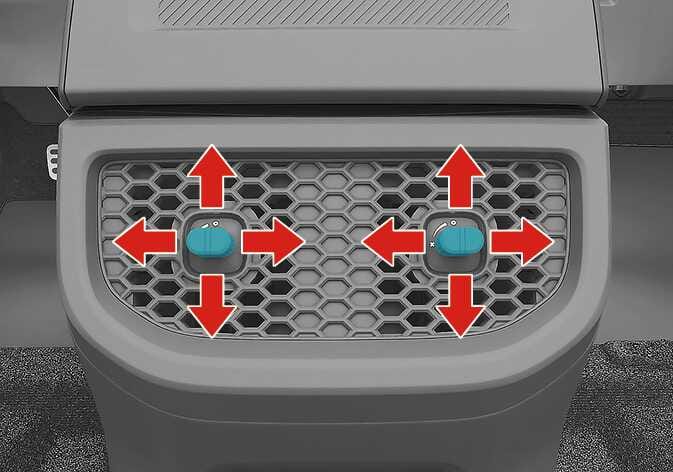

You can adjust the direction of air delivered from these vents using the vent control lever as shown.
