Overview

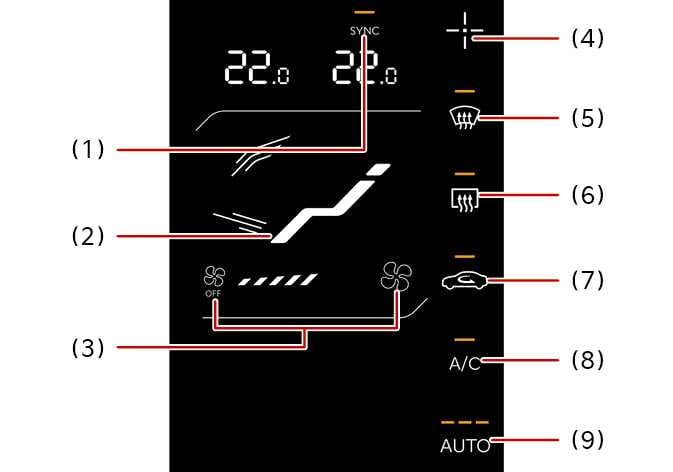

2026 Kia Tasman climate control panel overview image. Numbered callouts indicate (1) SYNC, (2) Mode selection, (3) Fan speed/OFF, (4) Infotainment screen ON/OFF, (5) Front defroster, (6) Rear defroster, (7) Air intake control, (8) A/C, and (9) AUTO icons. Explains the layout of the automatic climate control system.
N_TK25C026_E

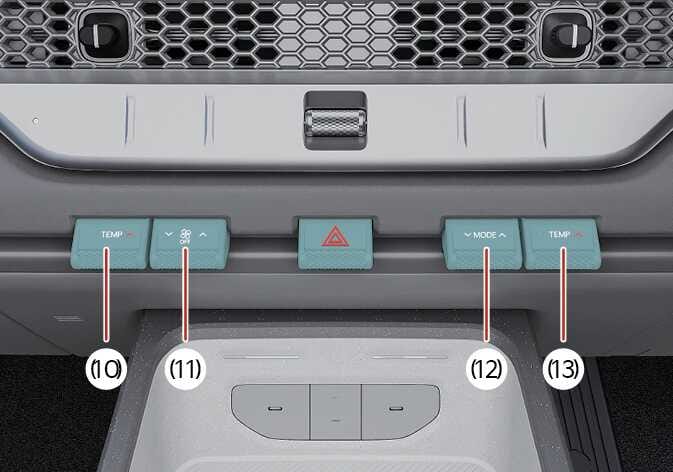

2026 Kia Tasman climate control levers image. The image shows teal-highlighted switches with callout numbers, identifying the (10) driver's side temperature control lever, (11) fan speed control/OFF lever, (12) mode selection lever, and (13) passenger's side temperature control lever. This explains the functions for adjusting the cabin temperature, fan speed, and air flow direction.
N_TK25C027_E

  1. SYNC icon

    • Touch the SYNC icon to adjust the driver and passenger side temperature to same value.

  2. Mode selection icon

  3. Fan speed control/OFF icon

  4. Infotainment system screen ON/OFF icon

  5. Front-windshield defroster icon

  6. Rear-window defroster icon

  7. Air intake control icon

  8. Air conditioning A/C icon

  9. AUTO (automatic control) icon

  10. Driver's side temperature control lever

  11. Fan speed control/OFF lever

  12. Mode selection lever

  13. Passenger's side temperature control lever
