AC inverter : (if equipped)

Bed

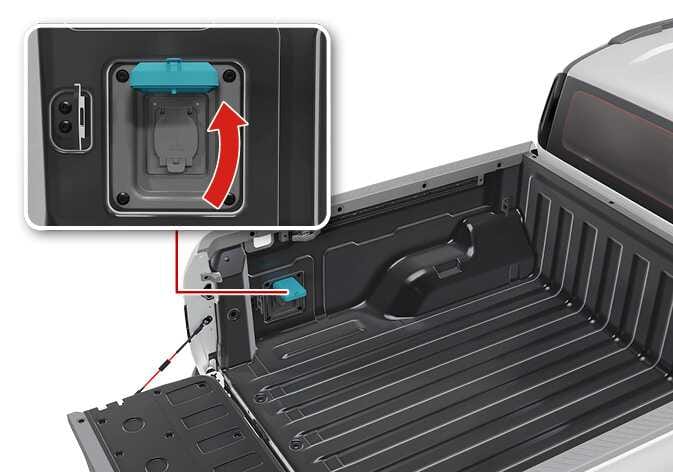

2026 Kia Tasman AC inverter image. The image shows the AC inverter located on the inner side wall of the truck bed, highlighted in cyan. A close-up inset view displays the outlet cover with a red curved arrow indicating the upward opening motion. This explains the location of the AC inverter in the bed and how to open the cover.
N_TK25C132_1

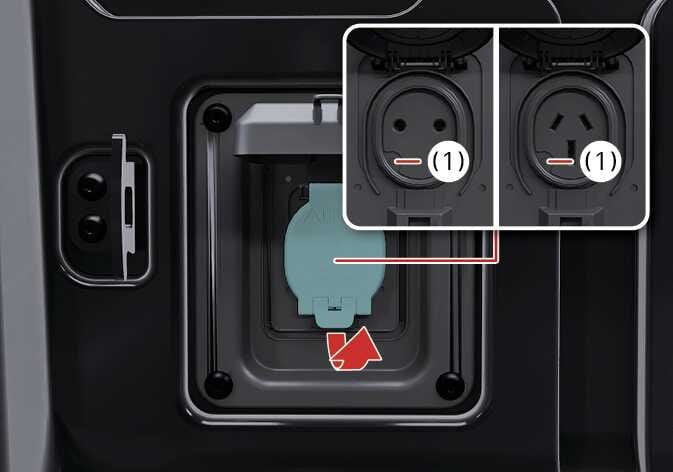

2026 Kia Tasman AC inverter image. A red arrow indicates the direction to open the cover upwards. Inset images show the socket with an indicator light (1). Explains the method of opening the cover and the location of the indicator light.
N_TK25C044_2_E
Back of the console

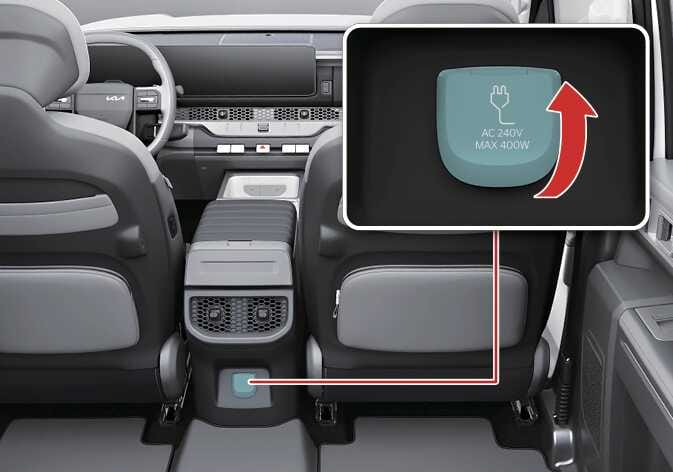

2026 Kia Tasman AC inverter image. The image shows the outlet located on the back of the center console. A detailed view highlights the cover in teal with 'AC 240V MAX 400W' text, and a red curved arrow indicates opening it upwards. This explains the location and opening method of the AC inverter.
N_TK25C045_1_E

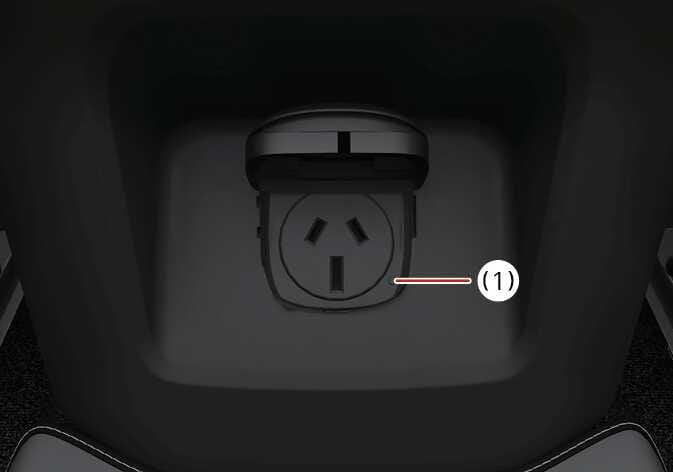

2026 Kia Tasman AC inverter outlet image. It displays the AC power socket with its cover open, located at the back of the console. A red line points to the indicator light (1) on the socket face. This explains the function where the indicator light turns on when the inverter is supplying power.
N_TK25C046_E

  1. Indicator light

The AC inverter supplies 220V/200W or 240V/400W electric power to operate electric accessories or equipment in the vehicle.

If you wish to use the AC inverter, open up the AC inverter cover and connect a plug to it. The AC inverter supplies electric power when vehicle is running and the indicator light (1) will turn on.

NOTE

  • Rated voltage : AC 220V or 240V

  • Maximum electric power : 200W or 400W

  • In order to avoid an electrical system failure, electric shock, etc., be sure to read owner's manual before use.

  • Be sure to close the cover except for when in use.

  • To prevent the battery from being discharged, do not use the AC inverter while the vehicle is not running.

  • When not using the AC inverter, make sure to close the AC inverter cover.

  • After using an electric accessory or equipment, pull the plug out. Leaving the accessory or equipment plugged in for a long time may cause battery discharge.

  • Do not use an electric accessory or equipment the power consumption of which is greater than 200W (220V) or 400W (240V).

  • When the AC inverter input voltage is less than 11.3V, automatically turn off the power.

    AC inverter will operate as normal when the voltage is increased.

  • When the AC inverter input voltage is less than 10.7V, power will turn off. The AC inverter will operate as normal when the voltage is increased.

  • While the power consumption of some electrical devices/appliances may be within the AC inverter's electric power range, it may malfunction in below cases.

    • If the device/appliance requires high electric power for initial start up

    • If the device/appliance processes precise/very accurate data

    • If the device/appliance requires very stable supply of electricity

  • The AC inverter provides 220V, 60Hz or 240V, 50Hz power with a maximum output of 200W or 400W. Using appliances that do not match these specifications may lead to reduced performance, overheating, damage, or a shorter appliance lifespan. Always ensure your appliance is compatible with a 220V, 60Hz or 240V, 50Hz AC power supply before use.

CAUTION

Electric accessory devices

  • Do not use broken electric accessories which may damage the AC inverter and electrical systems of the vehicle.

  • Do not use two or more electric accessories at the same time. It may cause damage to the electrical systems of the vehicle.
