Replacing front turn signal lamp (Bulb type)

Operation

  1. Before turning off the vehicle, operate the steering wheel in the opposite direction of the lamp to be replaced to steer the tyres toward the inside of the vehicle body.

    • When replacing the right headlamp: operate to the left

    • When replacing the left headlamp: operate to the right

  2. Turn off vehicle and disconnect the (-) battery connector.

  3. Remove the wheel guard fasteners using a tool and then remove the wheel guard.

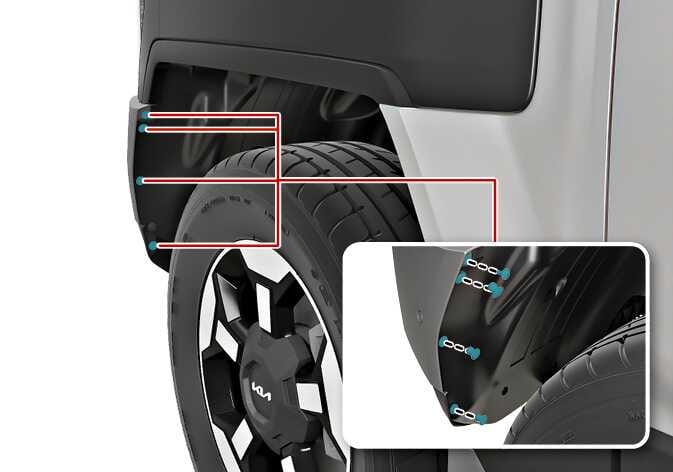

    2026 Kia Tasman front wheel guard fasteners image. Red lines connect the front wheel arch area to an inset view displaying the inner wheel liner, where the fasteners are highlighted in cyan. Explains the location of the fasteners that must be removed to detach the wheel guard.
    N_TK25G044_1

  4. Remove the front turn signal lamp assembly from the body of the vehicle.

  5. Disconnect the front turn signal lamp connector.

  6. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

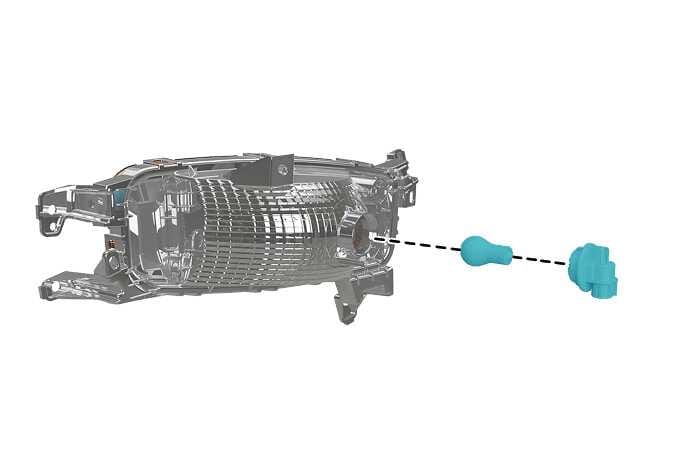

    2026 Kia Tasman front turn signal lamp replacement image. The lamp assembly is shown with the bulb and socket highlighted in cyan. A black dashed line indicates the direction for removing the socket and bulb. Explains the process of replacing the turn signal bulb.
    N_TK25G046

  7. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

  8. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

  9. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

  10. Install the rear combination lamp assembly to the body of the vehicle.

  11. Install the service cover.
