Mode selection
The mode selection button controls the direction of the air flow through the ventilation system.
The air flow outlet ports are switched in the following sequence:
Face-Level (B, D, H, G)
Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.
Bi-Level (B, C, D, E, F, H, G)
Air flow is directed towards the face and the floor.
Floor-Level (A, C, D, E, F, H)
Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield, side window defrosters and side air vents.
Floor/Defrost-Level (A, C, D, E, F, H)
Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters and side air vents.
Defrost-Level (A, D)
Most of the air flow is directed to the windshield with a small amount of air directed to the side window defrosters and side air vents.

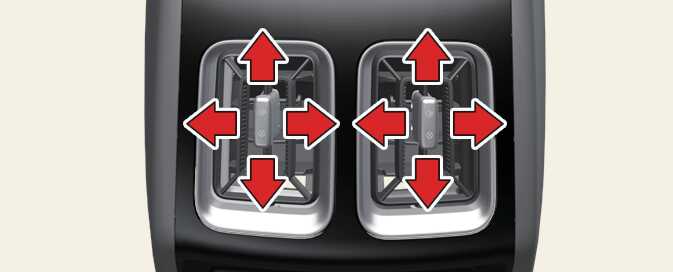

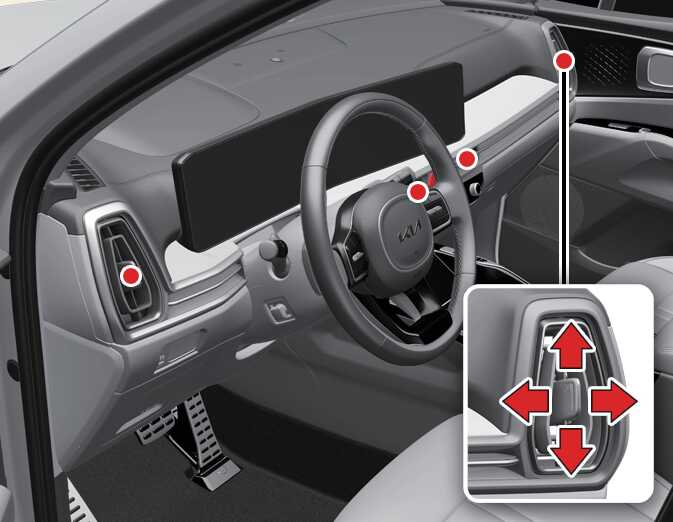

Instrument panel vents
You can adjust the direction of air delivered from these vents using the vent control levers as shown.
