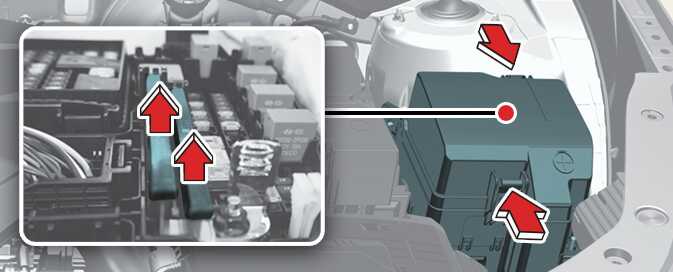

Main fuse (Multi-fuse)

OMQ4073040

If the main fuse is blown, it must be removed as follows:

  1. Turn off the engine.
  2. Disconnect the negative battery cable.
  3. Remove the nuts shown in the picture above.
  4. Replace the fuse with a new one of the same rating.
  5. Reinstall in the reverse order of removal.
CAUTION

Visually inspect the battery cap for secure closing. If the battery cap is not securely latched, the electrical system may be damaged to due influx of moisture into the system.
