Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

NOTE

While the fuse panel descriptions in this manual are accurate at the time of printing, not all fuse panel description may be applicable to your vehicle.

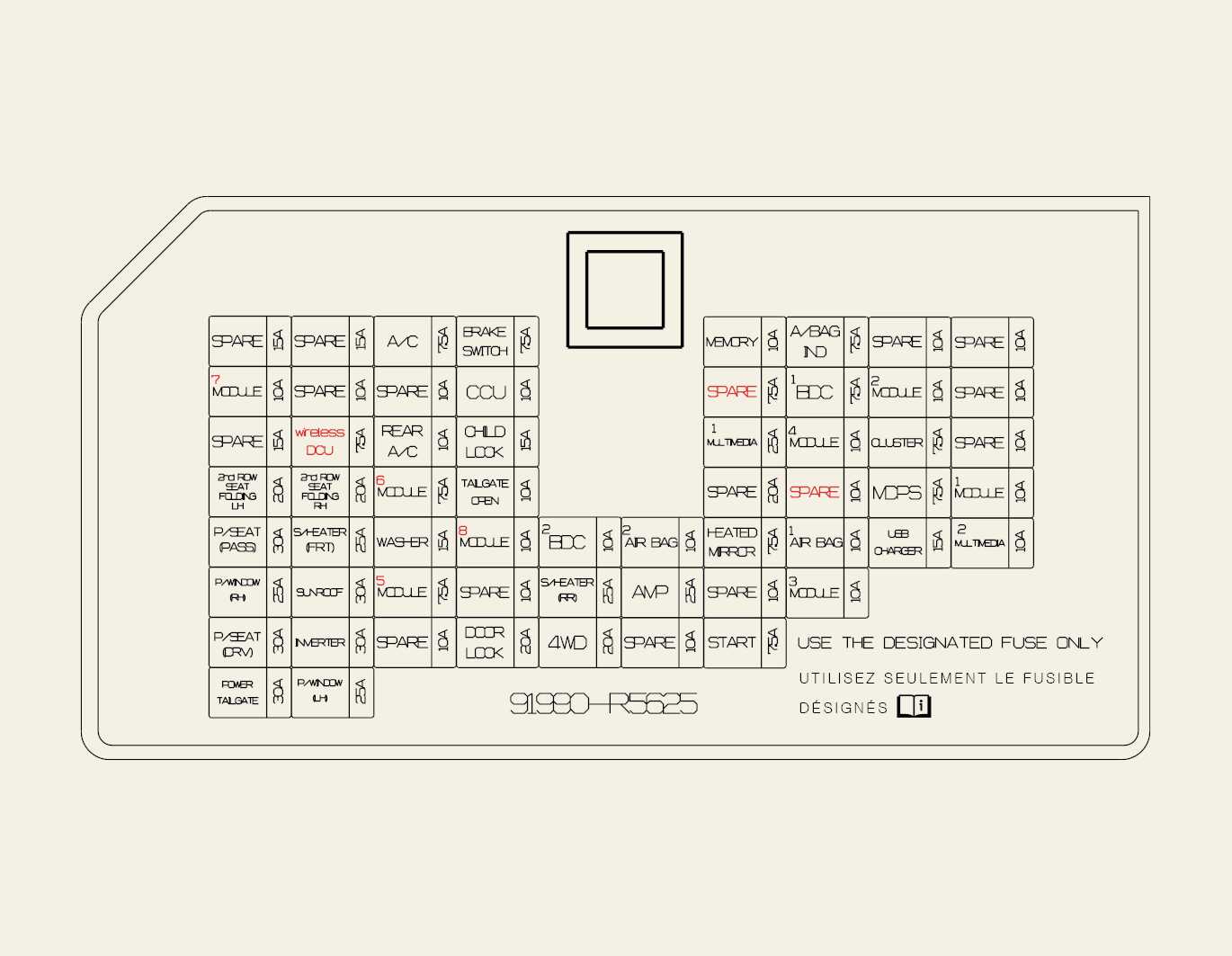

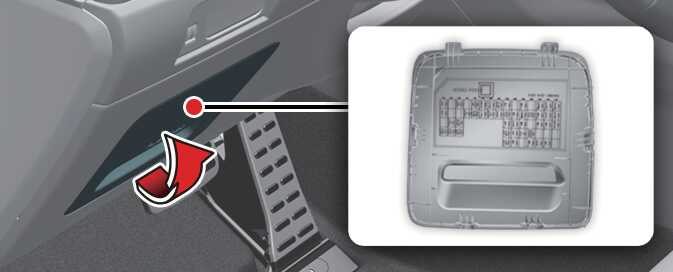

Driver's side fuse panel

OMQ4073041
OMQ4A073027
PDC

Fuse Name

Fuse rating

Circuit Protected

A/C

7.5A

MTC/DATC, ERJB(PTC HEATER2 RELAY)

BRAKE SWITCH

7.5A

BDC (Body Domain Contoller), Stop Lamp Switch

MEMORY

10A

Cluster, ISG LDC 450W, Mood Lamp Unit, Mood Lamp LH/RH, BDC, Built-in Camera Unit, MTC/DATC, ADAS PRK ECU, Rear Aircon Switch

A/BAG IND

7.5A

Overhead Console

CCU

10A

CCU (Central Communication Unit)

BDC1

7.5A

BDC (Body Domain Contoller)

MODULE3

10A

CCU (Central Communication Unit), DCU (Data Connectivity Unit), Stop Lamp Switch

wireless DCU

7.5A

DCU(Data Connectivity Unit)

RR A/CON

10A

Rear Aircon Switch, Rear Aircon Blower Motor

CHILD LOCK

15 A

Rear Door Child Lock LH/RH

MULTI MEDIA1

25A

ISG LDC 200W, CCNC (Connected Car Navigation Cockpit)

MODULE5

7.5A

Wireless Charger, OBD, MTC/DATC, ECM/DCM Mirror, Built-in Camera Unit, CCNC (Connected Car Navigation Cockpit), ISG LDC 200W/450W, 1st Seat Power Seat Unit, Amplifier, HLLD (Head Lamp Leveling Device

CLUSTER

7.5A

Cluster

2nd ROW SEAT FOLDING LH

20A

2nd Seat Folding Actuator LH

2nd ROW SEAT FOLDING RH

20A

2nd Seat Folding Actuator RH

MODULE8

10A

P_LBM (Parking-Lithium Battery Module)

T/GATE OPEN

10A

Tail Gate Latch

MODULE6

7.5A

Multi Function Switch, Power Window Main Switch

MDPS

7.5A

MDPS (Motor Driven Power Steering) Unit

MDPS (Motor Driven Power Steering) is same as EPS (Electric Power Steering).

MODULE2

10A

CCNC (Connected Car Navigation Cockpit) Keyboard, BDC (Body Domain Contoller), CCU (Central Communication Unit), USB Charger, Built-in Camera Unit, CCNC (Connected Car Navigation Cockpit), MTC, DCU (Data Connectivity Unit), Overhead Console, Amplifier, ADAS Parking Unit

P/SEAT PASS

30A

Passenger Power Seat Motor

S/HEATER FRT

25A

1st Seat Warmer/Ventilation LH/RH

WASHER

15A

Multi Function Switch

BDC2

10A

BDC (Body Domain Contoller), Driver Outside Handle Switch, Passenger Outside Handle Switch, ATM Lever, Digitalkey 2.0 Unit/Sensor

A/BAG2

10A

Airbag Contol Unit

HEATED MIRROR

7.5A

Outside Mirror Heated LH/RH

A/BAG1

10A

Airbag Contol Unit

USB CHARGER

15A

Luggage USB Charger LH/RH, 1ST Seat USB Charger LH/RH

MULTI MEDAI2

10A

Cluster, MTC, Wireless Charger, ADAS Parking Unit, Rear Corner Radar LH/RH

P/WINDOW RH

25A

Power Window Motor RH

SUNROOF

30A

Panorama Sunroof Motor

S/HEATER RR

15A

2nd Seat Warmer LH/RH

AMP

25A

Amplifier, ISG LDC 450W

MODULE4

10A

Front View Camera, Tilt-Tele Unit, C/PAD Switch, ADAS Drive Unit, Rear Corner Radar LH/RH, 4WD ECU, DCU(Dosing Control Unit), Console Switch, ADAS Parking Unit, Front Radar, Front Corner Radar LH/RH

P/SEAT DRV

30A

Driver Power Seat Motor

DR LOCK

20A

All Door Lock/Unlock

4WD

20A

4WD ECU

START

7.5A

Ignition Switch

POWER

TAILGATE

30A

Power Tailgate Unit

P/WINDOW LH

25A

Power Window Motor LH

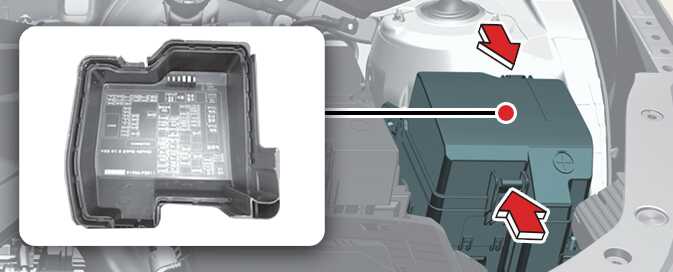

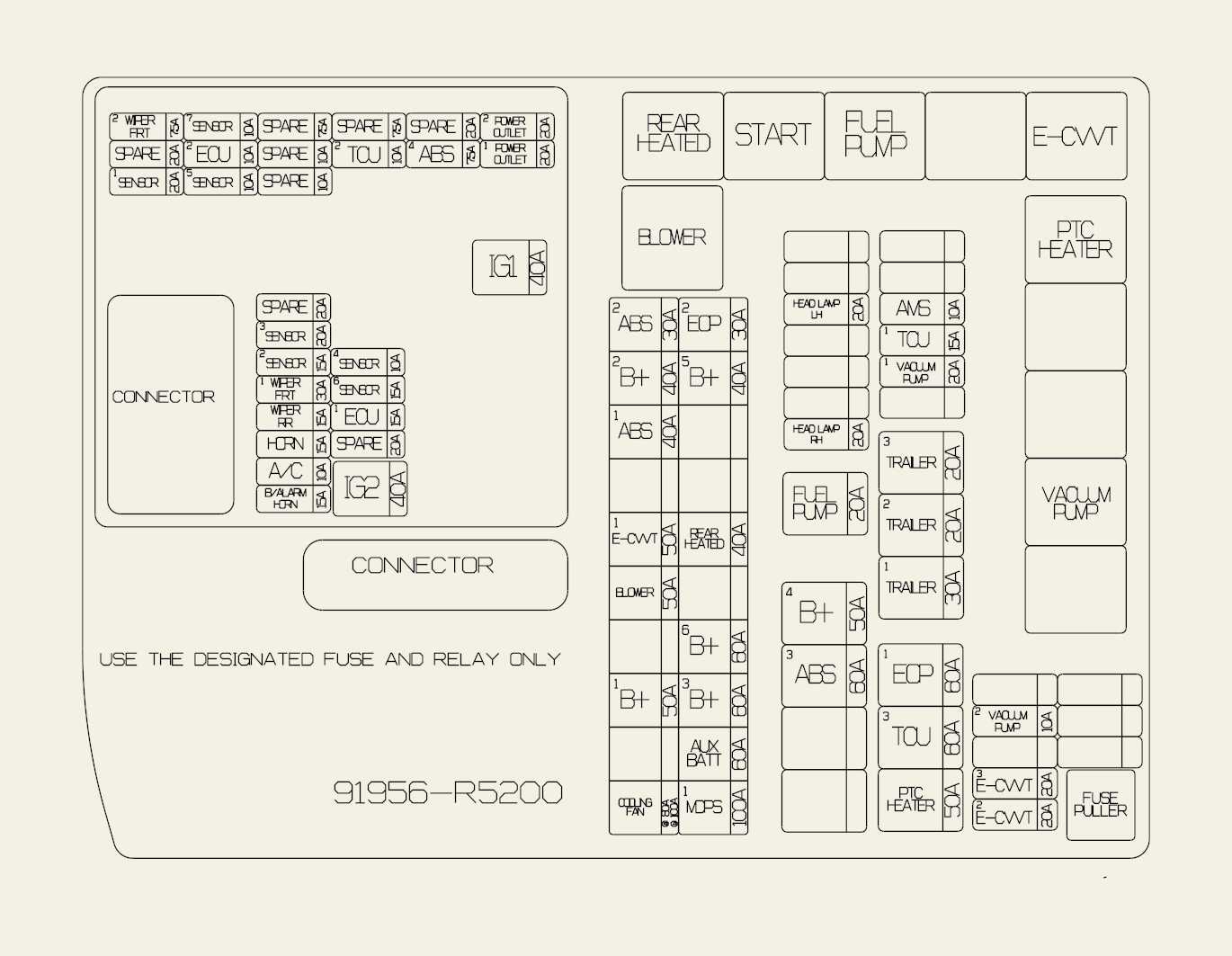

Engine compartment fuse panel

OMQ4073044
OMQ4A073026
Engine Compartment Junction Block

Fuse Name

Fuse r Ating

Circuit Protected

COOLING FAN

80 A

100 A

Cooling Fan Motor

B+2

40 A

PDC (Power Domain Controller)

BLOWER

50 A

Blower Relay

ABS1

40 A

ABS/ESC

ABS2

30 A

ABS/ESC

TRAILER1

50 A

Trailer Module

MDPS1

100 A

MDPS (Motor Driven Power Steering) Unit

MDPS (Motor Driven Power Steering) is same as EPS (Electric Power Steering).

AUX BATT

60 A

Parking Lithium Battery Module

B+3

60 A

PDC (Power Domain Controller)

B+6

60 A

PCB Block

REAR HEATED

40 A

Rear Glass Heated Relay

B+1

50 A

PDC (Power Domain Controller)

ABS3

60 A

ABS/ESC

B+4

50 A

PDC (Power Domain Controller)

FUEL PUMP

20 A

Fuel Pump Relay

HEAD LAMP RH

20 A

HEAD LAMP RH

HEAD LAMP LH

20 A

HEAD LAMP LH

PTC HEATER

50A

PTC Heater Relay1

TCU3

60 A

DCT TCU

EOP1

60 A

EOP (Electric Oil Pump)

B+5

40 A

PDC (Power Domain Controller)

TRAILER2

20 A

Trailer Module

TRAILER3

20 A

Trailer Module

TCU1

15 A

TCU

AMS

10 A

Battery Sensor

E-CVVT1

50 A

E-CVVT Relay

EOP2

30 A

Electric Oil Pump

VACUUM PUMP1

20 A

Vacuum Pump Relay

E-CVVT2

20A

[Smartstream G2.5 T-GDi] ECU(Engine Control Unit)

E-CVVT3

20A

[Smartstream G2.5 T-GDi] ECU(Engine Control Unit)

VACUUM PUMP2

20A

ABS/ESC
Process Control Block (PCB)

Fuse Name

Fuse r Ating

Circuit Protected

IG1

40 A

PCB Block (IG1 Relay, ACC relay)

IG2

40 A

PCB Block (IG2 Relay), Start Relay

FRT WIPER2

7.5 A

BDC(Body Domain Controler), ECU (Engine Control Unit)

SENSOR6

15 A

Injector #1/#2/#3/#4

SENSOR1

20 A

Ignition Coil #1/#2/#3/#4

ECU2

10 A

ECU (Engine Control Unit)

SENSOR5

10 A

Fuel Pump Relay, ECU (Engine Control Unit)

SENSOR3

20 A

ECU (Engine Control Unit)

SENSOR2

15 A

Oxygen Sensor (Up 1/Down 1)

Oxygen Sensor (Up/Down)

FRT WIPER1

30 A

Front Wiper Motor, PCB Block (Front Wiper Relay High, Low)

RR WIPER

15 A

Rear Wiper Motor, PCB Block (Rear Wiper Relay High, Low)

HORN

15 A

PCB Block (Horn Relay)

A/C

10 A

PCB Block (Air-con Compressor Relay)

B/ALARM HORN

15 A

PCB Block (Burglar Alarm Horn Relay)

SENSOR4

10 A

Cooling Fan, Variable Intake Solenoid, Recirculation Control Valve, Oil Control Valve, Canister Control Valve, Variable Oil, Pump Solenoid Valve, Oil Level Sensor, Purge. Control Solenoid Valve

SENSOR7

10 A

Electric Oil Pump

ECU1

15 A

ECU (Engine Control Unit)

ABS4

7.5 A

ABS/ESC

POWER OUTLET2

20 A

Rear Console Power Outlet

POWER OUTLET1

20 A

Luggage Power Outlet

TCU2

10 A

TCU (Transmission Control Unit), DCT Lever
Relay

Refer to the following table for the relay type.

Relay Name

TYPE

Start Relay

MICRO

Fuel Pump Relay

MICRO

PTC Heater Relay

MICRO

Blower Relay

MINI

Rear Heated Relay

MICRO

E-CVVT Relay

MICRO

Vacuum Pump Relay

MICRO

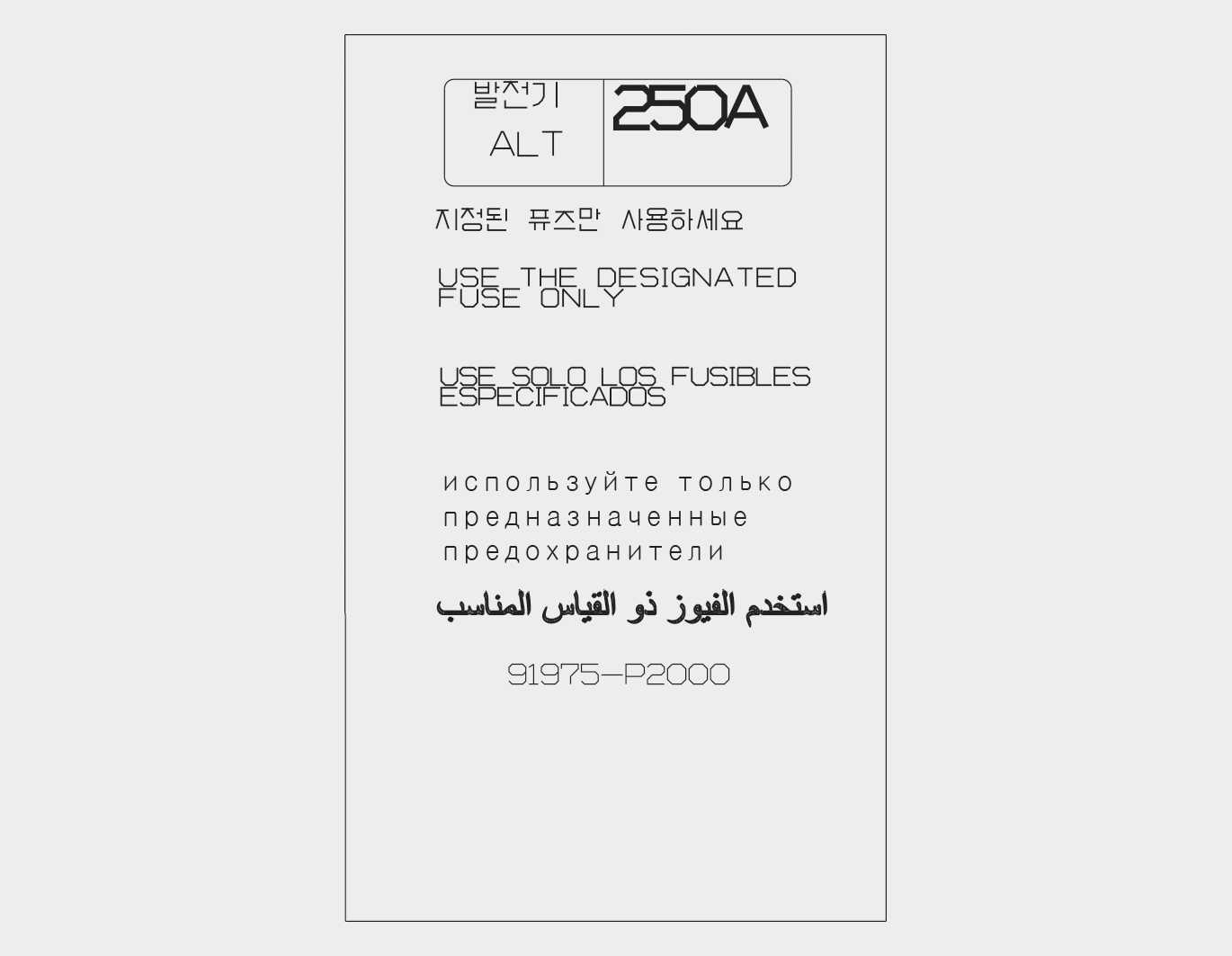

Engine compartment fuse panel (Battery terminal cover)

OMQ4073108
OMQ4070081L
