Replacing map light (Bulb type)

OMQ4073126L
WARNING

Prior to working on the Interior lights, ensure that the "OFF" button is depressed to avoid burning your fingers or receiving an electric shock.

  1. Turn off vehicle and disconnect the negative terminal from the battery.

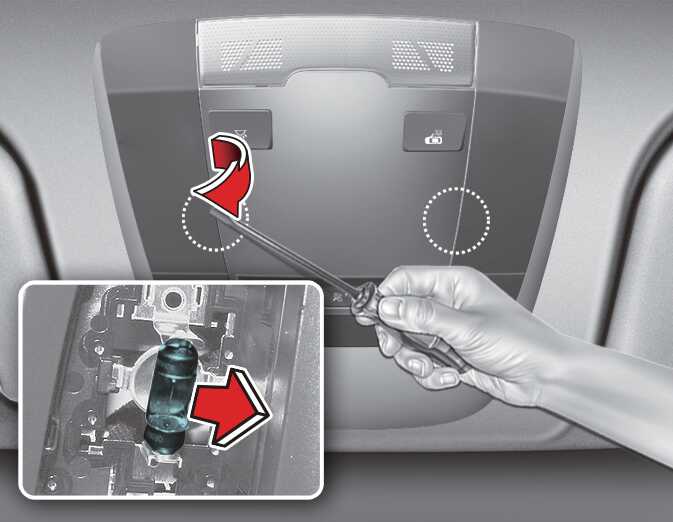

  2. Using a flat-tip screwdriver, gently pry the lens cover from lamp housing.

  3. Remove the bulb by pulling it straight out.

  4. Install a new bulb in the socket.

  5. Align the lens cover tabs with the lamp housing notches and snap the lens into place.

CAUTION

Be careful not to dirty or damage the lens, lens tab, and plastic housings.
