LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

	Mode
	Trip Computer	Turn By Turn (TBT)*	Driving Assist	User Settings	Master warning
Up/Down	Fuel Economy	Route Guidance	Lane Safety	Head-up display*	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Accumulated Info	Destination Info		Driver Assistance
	Drive Info			Door
	Drive Info		DAW	Lights
	Speedometer		DAW	Sound
	Drive mode		TPMS	Convenience
				Service Interval
				Other features
				Language
				Reset

The information provided may differ depending on which functions are applicable to your vehicle.

* : if equipped

NOTICE

Keep the engine running when configuring the display settings to prevent the battery from discharging.

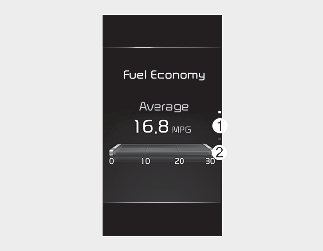

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

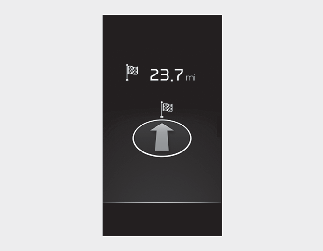

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Driving Assist mode

This mode displays the state of:

Smart Cruise Control (if equipped)

Navigation-based Smart Cruise Control (if equipped)

Lane Keeping Assist

Lane Following Assist

Highway Driving Assist (if equipped)
Driver Attention Warning
Tire pressure

* For more details, refer to each system information in More Details.

Tire pressure status

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

Master warning mode

This warning light informs the driver the following situations.

Driver assistance system malfunction, limitation or radar/camera blockage
Lamp malfunction
High Beam Assist malfunction (if equipped)
TPMS failure, low tire pressure, etc.

At this time, a Master Warning icon 「」 will appear beside the User Settings icon 「」, on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

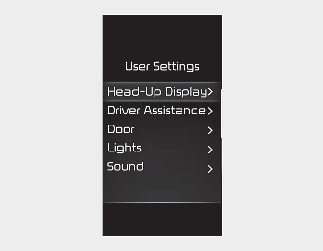

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Head-up display
Driver Assistance
Door
Lights
Sound
Convenience
Service Interval
Other features
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Head-Up Display (if equipped)

Items	Explanation
Enable Head-up display	If this item is checked, Head-Up Display will be activated.
Display Height	Adjust the height (1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5~+5) of the HUD rotation.
Brightness	Adjust the intensity (1~20) of the HUD brightness.
Content Selection	If below items are checked, the items will be activated. Turn by Turn/Traffic Signs/Driving Assist Info/Lane Safety Info/Blind-Spot Safety Info
Speed Size	To select the size of number of the head-up display on the windshield
Speed Color	To select the color of speedometer of head-up display on the windshield

2. Driver Assistance (if equipped)

Items	Explanation
Driving Assist	To adjust Highway Driving Assist Highway Driving Assist Highway Auto Speed Change For more details, refer to More Details.
Warning Timing	Normal/Late To select the Warning time
Warning Volume	High/Medium/Low To select the Warning volume
Driver Attention Warning	Inattentive Driving Warning To select the function. * For more details, refer to the More Details.
Forward Safety	To adjust Forward Collision-Avoidance Assist system. Active Assist/Warning Only/Off To select the functions.
Lane Safety	To adjust Lane Keeping Assist system. Lane Keeping Assist/Lane Departure Warning/Off To select the functions.
Blind-Spot Safety	Blind-Spot View To activate or deactivate Blind-Spot View. Safe Exit Assist To activate or deactivate Safe Exit Assist. For more details, refer to More Details. Active assist Warning only Off For more details, refer to More Details.
Parking safety	Surround View Monitor Auto On To select the function. For more details, refer to "Surround View Monitor (SVM) (if equipped)" on page 4-112. Parking Distance Warning Auto ON Rear Cross-Traffic Safety To Activate or deactivate Rear Cross-Traffic Collision-Avoidance Assist system. Active Assist Warning only Off For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

3. Door

Items	Explanation
Auto Lock	Off: The auto door unlock operation will be canceled. Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 9.3 mph (15 km/h) Enable on Shift (if equipped with Automatic transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (With the Engine ON, it is activated.)
Auto Unlock	Off: The auto door unlock operation will be canceled. Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position. On shift to P (if equipped with Automatic transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.)
2 Press Unlock	If this item is checked, the two press unlock will be activated. Press the door unlock button once to unlock the driver's door, and press the button once more within 4 seconds to unlock the rest of the doors.
Smart Trunk	To activate or deactivate the smart trunk. For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

4. Lights

Items	Explanation
Ambient light	Settings of the ambient light.
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Headlight Delay	If this item is checked, the head lamp delay function will be activated.
High Beam Assist	If this item is checked, High Beam Assist will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Sound

Items	Explanation
Welcome Sound	If this item is checked, the welcome sound function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Convenience

Items	Explanation
Seat Easy Access	Off/Normal/Extended To select the seat movement.
Rear Occupant Alert	If this item is checked, the Rear Occupant Alert (ROA) display will be activated.
Welcome Mirror/Light	On door unlock / On driver approach To select the welcome mirror/light function.
Wireless Charging System	If this item is checked, the wireless charging function will be activated.
Traffic Signs	If this item is checked, the traffic signs display will be activated.
Wiper/Lights Display	If this item is checked, the wiper/lights display will be activated.
Icy Road Warning	If this item is checked, the icy road warning will be activated.
Vehicle Auto-Shut Off	60 min/30 min: To set the vehicle auto-shut off timer Disable: The vehicle auto-shut off function will be canceled. * For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

7. Service interval

Items	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

NOTICE

To use the service interval menu, consult an authorized Kia dealer.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

8. Other features

Items	Explanation
Fuel Economy Auto Reset	Off: The average fuel economy will not reset. After ignition / After refueling: The average fuel economy will reset automatically after ignition/refueling.
Speedometer Unit	mph, km/h To select the Speedometer unit.
Fuel Economy Unit	US gallon, UK gallon To select the Fuel economy unit. For more details, refer to More Details.
Temperature Unit	°F/°C To select the Temperature unit.
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

9. Language

Items	Explanation
Language	To select language.

10. Reset

Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
