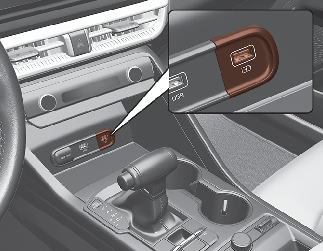

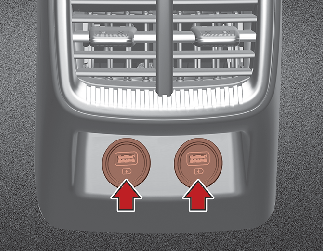

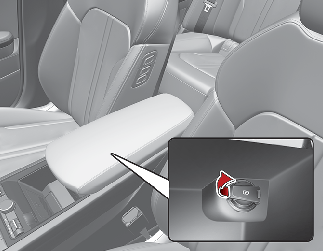

USB charger
Connect the cable to the USB port, charging will begin.
The USB car charger is available with either the ACC state or the ignition on. We recommend you to connect the USB port and digital devices while the engine is running. See the display screen of the device to check its charging process completion. Your smart phone or tablet PC could get heated up while charging. This is no reason to worry, as it doesn't impact life or functions of the device. For safety, charging can be stopped if the battery heats up to a high temperature that can damage the device.Charging some digital devices may not be available or may require dedicated adapters in order to properly connect to USB charging port. Quick Charge 2.0 is available on the smart phone or the table PC equipped with fast charging capabilities. The applicable is as follows: (https://www.qualcomm.com/documents/quick-charge-device-list)
The smart phone or PC tablet without fast charging is charged at a regular speed.
Rated output:
-
Digital devices with fast charging:
-
9.0 V, 1.67 A
-
-
Digital devices with normal charging:
-
5.0 V, 2.1 A
-
-
Use the USB car charger with the ignition on. Otherwise, Vehicle battery can be discharged.
-
Use the official USB cable of the manufacturer of the digital device to be charged.
-
Make sure that any foreign object, drinks, or water do not come into contact with the USB car charger. Water or foreign object can damage the USB charger.
-
Do not use the device those current consumption exceeds 2.1 A.
-
If the charger is connected incorrectly, it can cause serious damage to the devices. Please note that damages due to incorrect usage are not covered by warranty service.
Do not connect an electrical device that generates excessive electromagnetic noise to the USB car port. If you do so, noise can be caused or vehicle electronic devices can be interrupted while audio or AV is on.
