Replacing map lamp bulb (Bulb/LED type) (if equipped)
Interior lamps
Prior to working on the Interior lamps, ensure that the "OFF" button is depressed to avoid burning your fingers or receiving an electric shock.
-
Engage the parking brake, shift to P and turn the ignition OFF.
-
Turn off the lamp.
-
Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.
-
Remove the bulb by pulling it straight out.
-
Install a new bulb in the socket.
-
Align the lens cover tabs with the lamp housing notches and snap the lens into place.

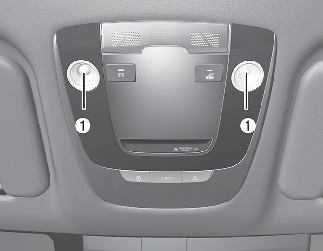

If the map lamp bulb/LED (1) does not operate, have the vehicle checked by an authorized Kia dealer.
The LED lamp cannot be replaced as a single unit because it is an integrated unit. The LED lamp has to be replaced with the unit.
A skilled technician should check or repair the map lamp (LED), for it may damage related parts of the vehicle.
Be careful not to dirty or damage the lens, lens tab, and plastic housings.
