Fuse/relay panel description

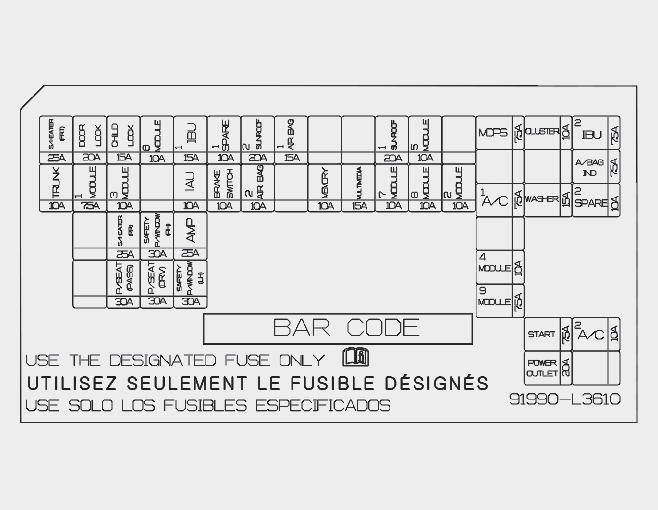

Driver's side fuse panel
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.
Refer to the following table for a description of the fuse.
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
S/HEATER (FRT) |
25A |
Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
|
TRUNK |
10A |
Trunk Lid Relay |
|
DOOR LOCK |
20A |
Door Lock Relay, Door Unlock Relay |
|
MODULE1 |
7.5 |
Front Console Switch #1, Key Solenoid, Driver/Passenger Smart Key Outside Handle |
|
CHILD LOCK |
15A |
Rear Child Lock Relay, Rear Child Unlock Relay |
|
MODULE3 |
10A |
Hazard Switch, Front Mood Lamp Right Handle side, Front Mood Lamp Unit, Driver Door Module, Driver/Passenger Door Mood Lamp |
|
S/HEATER (RR) |
25A |
Rear Seat Warmer Control Module |
|
P/SEAT (PASS) |
30A |
Passenger Seat Manual Switch |
|
MODULE6 |
10A |
Sport Mode Switch, Driver Door Module |
|
SAFETY P/WINDOW (RH) |
30A |
Passenger Power Window Switch, Passenger Safety Power Window Module, Rear Power Window Switch Right Handle side, Rear Safety Power Window Module Right Handle side |
|
P/SEAT (DRV) |
30A |
Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module |
|
IBU1 |
15A |
Ignition Switch, IBU (Integrated Body Control Unit) |
|
IAU |
10A |
Not Used |
|
AMP |
25A |
DC-DC Converter (AMP (Amplifier)), AMP (Amplifier) |
|
SAFETY P/WINDOW (LH) |
30A |
Driver Safety Power Window Module, Rear Power Window Switch Left Handle side, Rear Safety Power Window Module Left Handle side |
|
SPARE1 |
15A |
Not Used |
|
BRAKE SWITCH |
10A |
IBU (Integrated Body Control Unit), Stop Lamp Switch |
|
SUNROOF2 |
20A |
Sunroof Controller (Blind Motor), Data Link Connector |
|
AIR BAG2 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
AIR BAG1 |
15A |
SRS (Supplemental Restraint System) Control Module |
|
MEMORY |
10A |
Head-up Display, Driver IMS (Integrated memory system) Module, Driver/Passenger Power Outside Mirror, Rain Sensor, Instrument Cluster, Air Conditioner Control Module, Air Conditioner Switch |
|
MULTI MEDIA |
15A |
DC-DC Converter (Audio), Audio, Audio/Video & Navigation Head Unit |
|
SUNROOF1 |
20A |
Sunroof Controller (Glass Motor) |
|
Fuse Name |
(A) |
Circuit Protected |
|
MODULE7 |
10A |
Audio/Video 4WD (4 Wheel Drive) ECU (Engine Control Unit), Front Console Switch #1/#2, Lane Keeping Assist Unit, IBU (Integrated Body Control Unit), Crash Pad Switch, Parking Collision Avoidance Assist Unit |
|
MDOULE5 |
10A |
Stop Lamp Switch |
|
MODULE8 |
10A |
AMP (Amplifier), Driver IMS (Integrated memory system) Module, Front Wireless Charger, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, ATM (Automatic Transmission) Shift Lever Indicator, Data Link Connector, Audio, Audio/Video & Navigation Head Unit, Air Conditioner Switch, Surround View Monitor Unit, Air Conditioner Control Module, DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror |
|
MODULE2 |
10A |
Cooling Fan Motor, Parking Collision Avoidance Assist Unit, Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Engine Room Junction Block (W/S Heated Glass Left Handle side/Right Handle side Relay) |
|
MDPS |
7.5A |
MDPS (Motor Driven Power Steering) Unit (Column Type) |
|
A/C1 |
7.5A |
Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay) |
|
MODULE4 |
10A |
Rear USB Charger, PCB Block (Power Outlet Relay), Console USB Charger (Outside Rear Left Handle side/Right Handle side), Console USB Charger (Inside), AMP (Amplifier), IBU (Integrated Body Control Unit), DC-DC Converter (Audio/AMP (Amplifier)), Audio, Audio/Video & Navigation Head Unit, Surround View Monitor Unit, Parking Collision Avoidance Assist Unit |
|
MODULE9 |
7.5A |
IBU (Integrated Body Control Unit) |
|
CLUSTER |
10A |
Instrument Cluster, Head-up Display |
|
WASHER |
15A |
Multifunction Switch |
|
START |
7.5A |
B/Alarm Relay, IBU (Integrated Body Control Unit), ECM (Engine Control Module), Transmission Range Switch, Engine Room Junction Block (Start Relay) |
|
POWER OUTLET |
20A |
Not Used |
|
IBU2 |
7.5A |
IBU (Integrated Body Control Unit) |
|
A/BAG IND |
7.5A |
Instrument Cluster, Overhead Console Lamp |
|
SPARE2 |
10A |
Not Used |
|
A/C2 |
10A |
Air Conditioner Control Module |

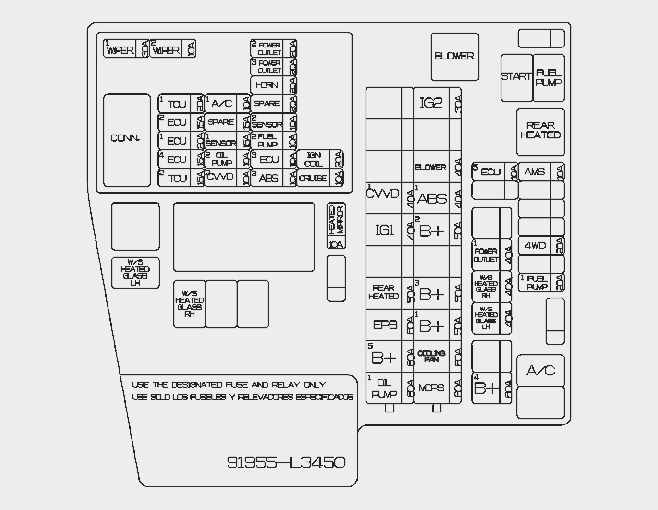

Engine compartment fuse panel
Refer to the following table for a description of the fuse.
|
Fuse Name |
Fuse rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
IG2 |
30A |
Engine Room Junction Block (Start Relay), PCB Block (Ignition switch2 Relay) |
|
BLOWER |
40A |
Engine Room Junction Block (Blower Relay) |
|
|
ABS1 |
40A |
ESC (Electronic Stability Control) Module |
|
|
B+2 |
50A |
ICU Junction Block (Instrument Panel Module1, Instrument Panel Module3, Instrument Panel Module4, Fuse - AMP (Amplifier), IBU (Integrated Body Control Unit)1) |
|
|
B+3 |
50A |
ICU Junction Block (Instrument Panel Module5, Instrument Panel Module6, Instrument Panel Module7, Instrument Panel Module8, Instrument Panel Module9, Instrument Panel Module10, Instrument Panel Module11) |
|
|
B+1 |
50A |
ICU Junction Block (Fuse - P/SEAT(Driver), P/SEAT(PASS), CHILD LOCK, MODULE1, |
|
|
S/HEATER(RR), SAFETY P/WINDOW(Left Handle side), SAFETY P/WINDOW(Right Handle side) |
|||
|
COOLING FAN |
80A |
Cooling Fan Motor |
|
|
MDPS |
80A |
MDPS (Motor Driven Power Steering) Unit |
|
|
MULTI FUSE-2 |
CVVD1 |
30A |
[Smartstream G 1.6 T-GDi] CVVD Actuator |
|
E-CVVT1 |
40A |
[Smartstream G 2.5 T-GDi] Engine Room Junction Block (E-CVVT Relay) |
|
|
IG1 |
40A |
PCB Block (Ignition switch1 Relay, ACC Relay) |
|
|
REAR HEATED |
50A |
Engine Room Junction Block (Rear Heated Relay) |
|
|
EPB |
60A |
ESC (Electronic Stability Control) Module |
|
|
B+5 |
60A |
PCB Block (Engine Control Relay, Fuse - Air Conditioner1, WIPER1, TCU (Transmission Control Unit)1, HORN, ECU (Engine Control Unit)2) |
|
|
OIL PUMP1 |
60A |
[Smartstream G 1.6 T-GDi] Electronic Oil Pump |
|
|
OIL PUMP |
60A |
[Smartstream G 2.5 T-GDi] Electronic Oil Pump |
|
|
FUSE |
POWER OUTLET1 |
40A |
PCB Block (Power Outlet Relay) |
|
W/S HEATED GLASS RH |
40A |
W/S Heated Glass Right Handle side Relay |
|
|
W/S HEATED GLASS LH |
40A |
W/S Heated Glass Left Handle side Relay |
|
|
TCU5 |
60A |
[Smartstream G 2.5 T-GDi] TCM (Transmission Control Module) |
|
|
B+4 |
60A |
ICU Junction Block (Long Term Load Latch Relay, Fuse - MODULE3, AIR BAG2, SUNROOF1, SUNROOF2, |
|
|
S/HEATER (FRT), TRUNK, BRAKE SWITCH, DOOR LOCK) |
|||
|
ECU5 |
10A |
[Smartstream G 1.6 T-GDi] ECM (Engine Control Module) |
|
|
AMS |
10A |
Battery Sensor |
|
|
VACUUM PUMP1 |
20A |
[Smartstream G 2.5 T-GDi] Vacuum Relay |
|
|
4WD |
20A |
[Smartstream G 1.6 T-GDi] Audio/Video 4WD (4 Wheel Drive) ECU (Engine Control Unit) |
|
|
FUEL PUMP1 |
20A |
Engine Room Junction Block (Fuel Pump Relay) |
|
|
VACUUM PUMP2 |
10A |
[Smartstream G 2.5 T-GDi] ESC (Electronic Stability Control) Module |
|
|
E-CVVT3 |
20A |
[Smartstream G 2.5 T-GDi] ECM (Engine Control Module) |
|
|
HEATED MIRROR |
10A |
Air Conditioner Switch |
|
|
E-CVVT4 |
20A |
[Smartstream G 2.5 T-GDi] ECM (Engine Control Module) |
|
PCB Block: Smartstream G1.6 T-GDi
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
WIPER1 |
30A |
PCB Block (Wiper Relay) |
|
WIPER2 |
10A |
IBU (Integrated Body Control Unit), ECM (Engine Control Module) |
|
TCU1 |
20A |
TCM (Transmission Control Module) |
|
ECU2 |
15A |
ECM (Engine Control Module) |
|
ECU1 |
20A |
ECM (Engine Control Module) |
|
ECU4 |
15A |
ECM (Engine Control Module) |
|
TCU2 |
15A |
TCM (Transmission Control Module), Transmission Range Switch |
|
A/C1 |
10A |
Engine Room Junction Block (Air Conditioner Relay) |
|
SENSOR1 |
15A |
Oxygen Sensor (Up/Down) |
|
OIL PUMP2 |
10A |
Electronic Oil Pump |
|
CVVD2 |
10A |
CVVD Actuator |
|
POWER OUTLET2 |
20A |
Front Power Outlet Left Handle side |
|
POWER OUTLET3 |
20A |
Front USB Charger |
|
HORN |
20A |
PCB Block (Horn Relay) |
|
SENSOR2 |
10A |
Oil Control Valve (Intake/Exhaust), Variable Oil Pump Solenoid Valve, Purge Control Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, Canister Close Valve, Engine Room Junction Block (Air Conditioner Relay) |
|
FUEL PUMP2 |
10A |
Engine Room Junction Block (Fuel Pump Relay) |
|
ECU3 |
10A |
ECM (Engine Control Module) |
|
ABS3 |
10A |
ESC (Electronic Stability Control) Module |
|
IGN COIL |
20A |
Ignition Coil #1 ~ #4 |
|
CRUISE |
10A |
Smart Cruise Control Unit |
PCB Block: Smartstream G2.5 T-GDi
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
WIPER1 |
30A |
PCB Block (Wiper Relay) |
|
WIPER2 |
10A |
IBU (Integrated Body Control Unit), ECM (Engine Control Module) |
|
TCU1 |
20A |
Not Used |
|
ECU2 |
15A |
ECM (Engine Control Module) |
|
ECU1 |
20A |
ECM (Engine Control Module) |
|
ECU4 |
15A |
ECM (Engine Control Module) |
|
TCU2 |
15A |
TCM (Transmission Control Module) |
|
A/C1 |
10A |
Engine Room Junction Block (Air Conditioner Relay) |
|
INJECTOR |
15A |
Injector #1 ~ #4 |
|
SENSOR1 |
15A |
Oxygen Sensor (Up/Down) |
|
POWER OUTLET2 |
20A |
Front Power Outlet Left Handle side |
|
POWER OUTLET3 |
20A |
Front USB Charger |
|
HORN |
20A |
PCB Block (Horn Relay) |
|
SENSOR2 |
10A |
Oil Control Valve (Exhaust), Variable Oil Pump Solenoid Valve, Purge Control Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, Canister Close Valve, Engine Room Junction Block (Air Conditioner Relay) |
|
FUEL PUMP2 |
10A |
Engine Room Junction Block (Fuel Pump Relay) |
|
ECU3 |
10A |
ECM (Engine Control Module) |
|
ABS3 |
10A |
ESC (Electronic Stability Control) Module |
|
IGN COIL |
20A |
Ignition Coil #1 ~ #4 |
|
CRUISE |
10A |
Smart Cruise Control Unit |

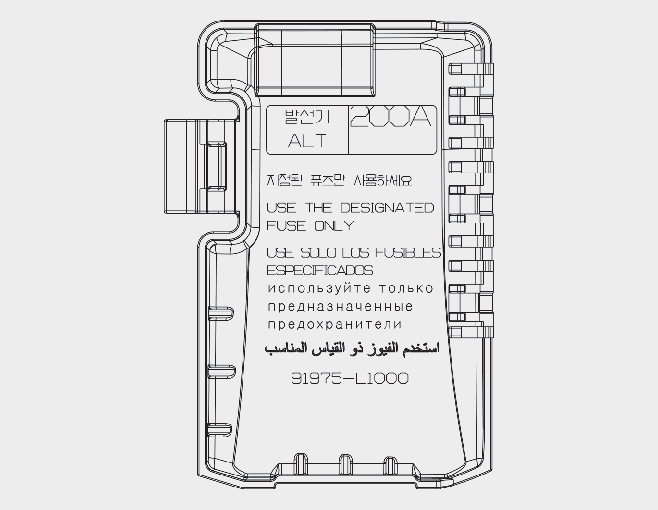

Battery terminal cover
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
