Reverse Parking Distance Warning (PDW) (if equipped)
This function is a supplemental function and it is not intended to nor does it replace the need for extreme care and attention of the driver.

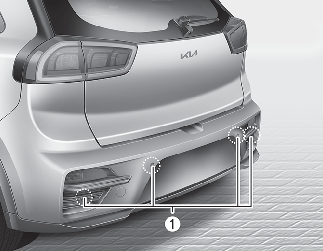

The sensing range and objects detectable by the back sensors (1) are limited. Whenever backing-up, pay as much attention to what is behind you as you would in a vehicle without a Reverse Parking Distance Warning.
Reverse Parking Distance Warning
Never rely solely on Reverse Parking Distance Warning. Always perform a visual inspection to make sure the vehicle is clear of all obstructions before moving the vehicle in any direction. Stop immediately if you are aware of a child or other person anywhere near your vehicle. Some objects may not be detected by the sensors, due to the object's size or material.
Reverse Parking Distance Warning operation

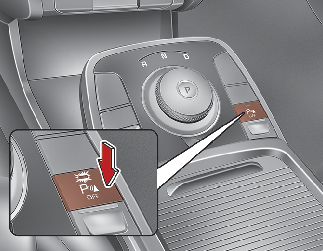

Press the Parking Distance Warning Off button to turn off the Reverse Parking Distance Warning. The indicator light on the button will turn on.
-
This function will activate when backing up with the POWER button ON.
If the vehicle is moving at a speed over 3 mph (5 km/h), the function may not be activated correctly.
-
The sensing distance while Reverse Parking Distance Warning is in operation is approximately 49 inches (120 cm).
-
When more than two objects are sensed at the same time, the closest one will be recognized first.
|
Types of warning sound |
Indicator* |
|---|---|
|
When an object is 24~48 inches (60~ 120 cm) from the rear bumper: Buzzer beeps intermittently. |
 |
|
When an object is 12~24 inches (30~60 cm) from the rear bumper: Buzzer beeps more frequently |
 |
|
When an object is within 12 inches (30 cm) of the rear bumper: Buzzer sounds continuously. |
 |
* if equipped
The indicator may differ from the illustration as objects or sensors status.
If the indicator blinks, have the system checked by a professional workshop, preferably an authorized Kia dealer.
Reverse Parking Distance Warning not operation
-
Moisture is frozen to the sensor. (It will operate normally when the moisture has been cleared.)
-
The sensor is covered with foreign matter, such as snow or water, or the sensor cover is blocked. (It will operate normally when the material is removed or the sensor is no longer blocked.)
-
Driving on uneven road surfaces (unpaved roads, gravel, bumps, gradient).
-
Objects generating excessive noise (vehicle horns, loud motorcycle engines, or truck air brakes) are within range of the sensor.
-
Heavy rain or water spray exists.
-
Wireless transmitters or mobile phones are within range of the sensor.
-
The sensor is covered with snow.
-
Trailer towing
-
The sensor is stained with foreign matter such as snow or water. (The sensing range will return to normal when removed.)
-
Outside air temperature is extremely hot or cold.
-
Sharp or slim objects such as ropes, chains or small poles.
-
Objects which tend to absorb the sensor frequency such as clothes, spongy material or snow.
-
Undetectable objects smaller than 40 in (100 cm) in height and narrower than 6 in (14 cm) in diameter.
-
Reverse Parking Distance Warning may not sound consistently depending on the speed and shapes of the objects detected.
-
Reverse Parking Distance Warning may malfunction if the vehicle bumper height or sensor installation has been modified or damaged. Any non-factory installed equipment or accessories may also interfere with the sensor performance.
-
The sensor may not recognize objects less than 12 in (30 cm) from the sensor, or it may sense an incorrect distance. Use caution.
-
When the sensor is frozen or stained with snow, dirt, or water, the sensor may be inoperative until the stains are removed using a soft cloth.
-
Do not push, scratch or strike the sensor. Sensor damage could occur.
This function can only sense objects within the range and location of the sensors; it can not detect objects in other areas where sensors are not installed. Also, small or slim objects, such as poles, or objects located between sensors may not be detected by the sensors.
Always visually check behind the vehicle when backing up.
Be sure to inform any drivers of the vehicle that may be unfamiliar with the function regarding the functions capabilities and limitations.
Pay close attention when the vehicle is driven close to objects on the road, particularly pedestrians, and especially children. Be aware that some objects may not be detected by the sensors, due to the object's distance, size or material, all of which can limit the effectiveness of the sensor. Always perform a visual inspection to make sure the vehicle is clear of all obstructions before moving the vehicle in any direction.
Self-diagnosis
If you don't hear an audible warning sound or if the buzzer sounds intermittently when shifting the gear to the R (Reverse) position, this may indicate a malfunction in Reverse Parking Distance Warning. If this occurs, have the system checked by a professional workshop. Kia recommends to visit an authorized Kia dealer.
Your new vehicle warranty does not cover any accidents or damage to the vehicle or injuries to its occupants due to a Reverse Parking Distance Warning malfunction. Always drive safely and cautiously.
