LCD Display Modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

	Mode
	Trip Computer	Turn By Turn (TBT)	Driving Assist	User Settings	Master warning
Up/Down	Consumption Info	Route Guidance	Lane Keeping Assist Smart Cruise Control Lane Following Assist	Head-Up Display	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Consumption Info	Route Guidance		Driver Assistance
	Accumulated Info	Destination Info	Driver Attention Warning	Door
	Drive Info		Tire Pressure	Lights
	Driving Style			Sound
	Energy Flow			Convenience
				Service Interval
				Other features
				Language
				Reset

The information provided may differ depending on which functions are applicable to your vehicle.

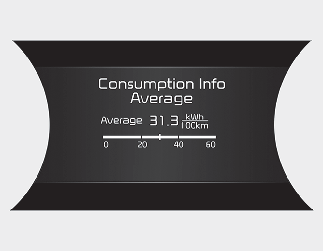

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including drive info, driving style and energy flow.

* For more details, refer to More Details.

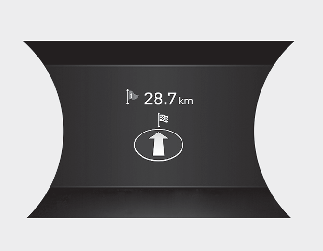

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

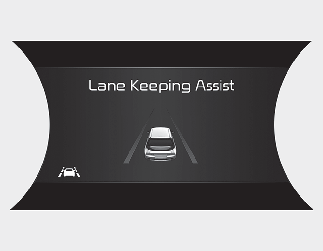

Driving Assist

This mode displays the state of:

Lane Keeping Assist
Smart Cruise Control
Lane Following Assist
Driver Attention Warning
Tire Pressure

* For more details, refer to each function information in More Details.

Tire pressure status

* For more details, refer to More Details.

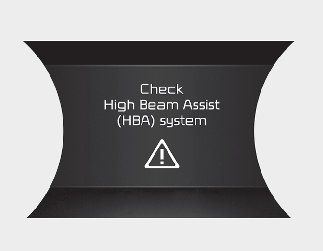

Master warning mode

This warning light informs the driver the following situations.

Forward Collision-Avoidance Assist malfunction (if equipped)
Forward Collision-Avoidance Assist radar blocked (if equipped)
Blind-Spot Collision Warning malfunction (if equipped)
Blind-Spot Collision Warning radar blocked (if equipped)
LED headlamp malfunction (if equipped)
Lamp malfunction
High Beam Assist malfunction (if equipped)
Smart Cruise Control malfunction (if equipped)
Smart Cruise Control radar blocked (if equipped)

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display.

If the warning situation is resolved, the master warning light will be turned off and the Master Warning icon will disappear.

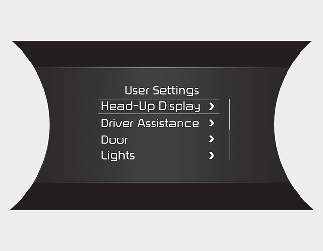

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Head-Up Display
Driver Assistance
Door
Lights
Sound
Convenience
Service Interval
Other features
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

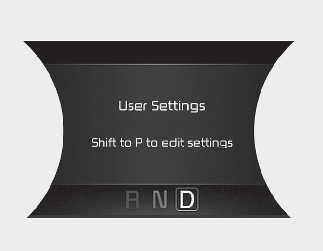

Shift to P to edit settings

This warning message appears if you try to adjust the User Settings while driving.

* For your safety, change the User Settings after parking the vehicle, applying the parking brake and shifting to P (Park).

1. Head-Up Display (if equipped)

	Explanation
Display Height	Adjust the height (1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5~+5) of the HUD rotation.
Brightness	Adjust the intensity (1~20) of the HUD brightness.
Contents Selection	If below items are checked, the items will be activated. Audio/Video info Driving assist info Blind-spot safety info

2. Driver Assistance (if equipped)

	Explanation
SCC Response	Fast/Normal/Slow To adjust the sensitivity of the Smart Cruise Control. * For more details, refer to More Details
Driving Assistance	Driver is able to activate or deactivate below functions. Leading Vehicle Departure Alert Lane Following Assist (LFA)
Driver Attention Warning	High sensitivity / Normal sensitivity / Off To adjust the sensitivity of Driver Attention Warning. * For more details, refer to More Details.
Warning Timing	Normal/Later To select the Warning time
Warning Volume	High/Medium/Low To select the Warning volume
Lane Safety	Active Lane Keeping Assist/Lane Keeping Assist/Lane Departure Warning/Off To select the functions.
Forward Safety	Active assist, Warning only, Off To select the functions.
Blind-Spot Safety	Rear Cross-Traffic Safety/Active Assist/Warning Only/Off To select the functions.

* The information provided may differ depending on which functions are applicable to your vehicle.

3. Door

	Explanation
Automatically Lock	Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph). Enable on shift: All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
Automatically Unlock	Disable: The auto door unlock operation will be canceled. Vehicle off: All doors will be automatically unlocked when the START/STOP button is set to the OFF position. On shift to P: All doors will be automatically unlocked if the gear is shifted to the P (Park) position.
2-press Unlock	Off: The 2-press unlock function will be deactivated. Therefore, all doors will unlock if the door unlock button is pressed. On: Only the driver's door will unlock if the door unlock button is pressed. When the door unlock button is pressed again within 4 seconds, the remaining doors will unlock.

* The information provided may differ depending on which functions are applicable to your vehicle.

4. Lights

	Explanation
One touch turn indicator	Off: The one touch turn signal function will be deactivated. 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Shifter Light Brightness (if equipped)	To select the brightness of the shifter light. (Level 1~4)
Shifter Light Color (if equipped)	To select the color of the shifter light. (White/Grey/Blue/Green/Bronze/Red)
Head Lamp Delay	If this item checked, the head lamp delay function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Convenience (if equipped)

	Explanation
Utility Mode	To activate the utility mode. When activated, electric devices in the vehicle is operated using the high voltage battery. * For more details, refer to More Details.
Lock Charging Cable	This function can be selected one of two menus. Always mode While charging mode
Welcome Mirror/Light	If this item is checked, the welcome mirror/light function will be activated.
Wireless charging system	If this item is checked, the wireless charging system function will be activated.
Wiper/Lights Display	If this item is checked, the Wiper/Lights Display will be activated.
Auto rear wiper (reverse)	If this item is checked, the Auto rear wiper will be activated.
Smart regeneration	If this item is checked the Smart regeneration function will be activated. When activated, the regeneration level is adjusted automatically according to the current driving situation. * For more details, refer to More Details.
Icy Road Warning	If this item is checked, the Icy Road Warning function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Service Interval

	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The fuse switch is turned off.
The battery is discharged.

7. Other features

	Explanation
Energy Consumption Reset	Off: The average fuel economy will not reset automatically whenever recharging. After Ignition: The average fuel economy will reset automatically whenever it has passed 4 hours after turning OFF the vehicle. After Recharging: The average fuel economy will reset automatically when recharging. * For more details, refer to More Details.
Speedometer Unit	km/h or mph To select the Speedometer unit.
Consumption Unit	kWh/100km or km/kWh To select the Consumption unit.
Temperature Unit	°C/°F To select the temperature unit.
Tire Pressure Unit	kPa, psi, bar To select the tire pressure unit.

* The information provided may differ depending on which functions are applicable to your vehicle.

8. Reset

	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
