Suitability of each seating position for belted & ISOFIX Child Restraint Systems (CRS) according to UN regulations
(Information for use by vehicle users and CRS manufacturers)
-
Yes : Suitable for fitment of the designated category of CRS
-
No : Not suitable for fitment of the designated category of CRS
-
“-” : Not applicable
F: Forward facing
R: Rearward facing
|
CRS categories |
Seating positions |
||||||
|---|---|---|---|---|---|---|---|
|
1 |
2 |
3 |
4 (2Point Belt) |
5 |
|||
|
Airbag ON (or Activated) |
Airbag Off (or Dectivated) |
||||||
|
Universal belted CRS |
All mass groups |
- |
No |
Yes*1 F, R |
Yes F, R |
Yes F |
Yes F, R |
|
i-size CRS (If i-size symbol is not applied, No) |
ISOFIX CRF (F2, F2X, R1, R2) |
- |
No |
No |
Yes F, R |
- |
Yes F, R |
|
Carry-cot (ISOFIX lateral facing CRS) |
ISOFIX CRF (L1, L2) |
- |
No |
No |
No |
- |
No |
|
ISOFIX infant* CRS (* : ISOFIX baby CRS) |
ISOFIX CRF (R1) |
- |
No |
No |
Yes R |
- |
Yes R |
|
ISOFIX toddler CRS - small |
ISOFIX CRF (F2,F2X, R2,R2X) |
- |
No |
No |
Yes F, R |
- |
Yes F, R |
|
ISOFIX toddler CRS – large* (*: not booster seats) |
ISOFIX CRF (F3, R3) |
- |
No |
No |
Yes F, R |
- |
Yes F, R |
|
Booster Seat – reduced Width |
ISOFIX CRF (B2) |
- |
No |
No |
Yes |
No |
Yes |
|
Booster Seat – full Width |
ISOFIX CRF (B3) |
- |
No |
No |
Yes |
No |
Yes |
* 1. If cushion height adjuster function is equipped, cushion should be adjusted to the highest position.
otherwise (not equipped cushion height adjuster function) seatback should be adjusted to upright position.
|

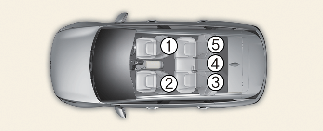

Seat Number Position in the vehicle |
||
|---|---|---|
|
1 |
Front right |
 |
|
2 |
Front left |
|
|
3 |
2nd row left |
|
|
4 |
2nd row centre |
|
|
5 |
2nd row right |
|
* If the vehicle headrest prevents proper installation of a CRS, the headrest of the seating position shall be readjusted or entirely removed
* Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated.
Recommended CRS for Vehicle according to UN regulations (For Latin America)
(Information for use by vehicle users and CRS manufacturers)
|
Mass Group |
Name |
Manufacturer |
Type of Fixation |
ECE-R44 Approval No. |
|---|---|---|---|---|
|
Group 0+/I/II/III |
JOIE SPIN 360 |
JOIE |
ISOFIX & Leg Support Type (Rear & Foward- Facing) |
E11 - 041621 |
CRS Manufacturer information
JOIE: www.joiebaby.com
