Opening the bonnet

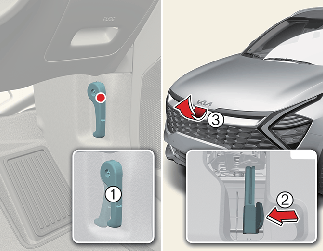

  1. Bonnet release lever

  2. Secondary bonnet release lever

  3. Bonnet

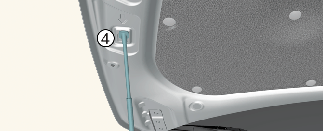

  4. Support rod

Operation

  1. Pull the bonnet release lever (1).

  2. Push the secondary bonnet release lever (2) to the left.

  3. Lift the bonnet (3) upwards.

  4. Pull out the support rod (4).

  5. Hold the bonnet opened with the support rod.

WARNING

Open the bonnet after turning off the engine on a flat surface, shifting the gear to the P (Park) position and setting the parking brake.
