Operating conditions

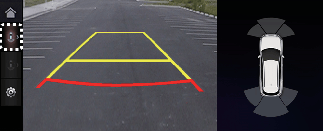

Rear View Monitor will turn on when the following conditions are satisfied:

• Shifting the gear to R (Reverse).

• Pressing the Parking/View button (1) whilst P (Park) gear position is selected

• Pressing the View icon with the Rear top view on the screen

Off conditions

Rear View Monitor will turn off when the following conditions are satisfied:

• Pressing the Parking/View button (1) again whilst P (Park) gear position is selected. with the rear view on the screen.

• Changing the gear from R (Reverse) to P (Park).

NOTICE

The rear view cannot be turned off when the gear is in R (Reverse).

Operating conditions

Rear View Monitor will maintain when the following conditions are satisfied:

• Shifting the gear from R (Reverse) to N (Neutral) or D (Drive).

• The vehicle speed is below approximately 10 km/h (6 mph).

Off conditions

Extended rear view function will turn off when one the following conditions are satisfied:

• The vehicle speed is above approximately 10 km/h (6 mph).

• Pressing the Parking/View button (1).

• Shifting the gear to P (Park).

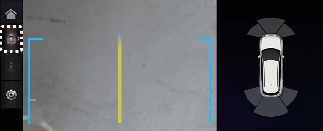

Operating conditions

Press the Parking/View button (1) whilst the gear is in D (Drive) or N (Neutral), rear view whilst driving will appear on the screen.

Off conditions

Rear view whilst driving function will turn off when one the following conditions are satisfied:

• Pressing the Parking/View button (1) or the infotainment system button.

• Shifting the gear to P (Park).
