Controlling heating and air conditioning automatically
Operation
-
Set the desired temperature.
-

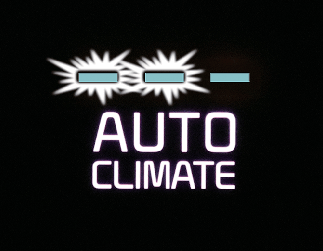

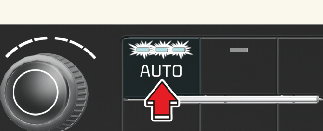

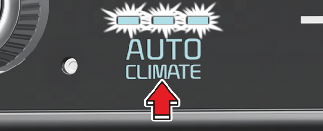

Press the AUTO button to control:
-
Mode
-
Fan speed
-
Air intake
-
Air conditioning
-
|

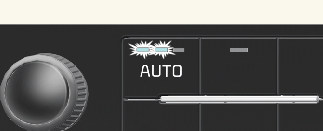

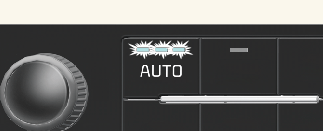

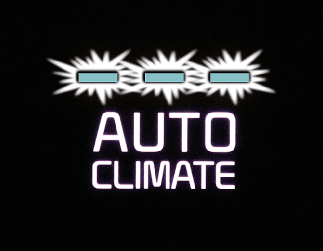

Level |
Indicator |
LCD Display |
Air flow |
|---|---|---|---|
|
High |
 |
 |
1~8 |
|

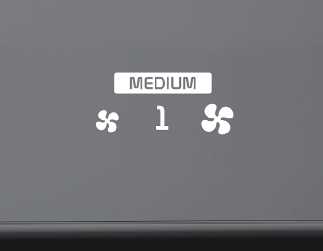

Medium |
 |
 |
1~6 |
|

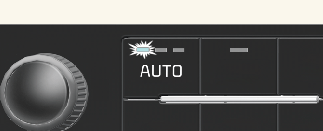

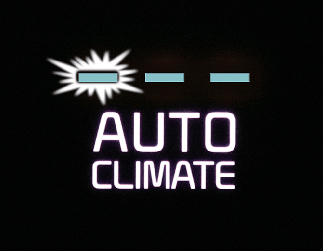

Low |
 |
 |
1~4 |
|

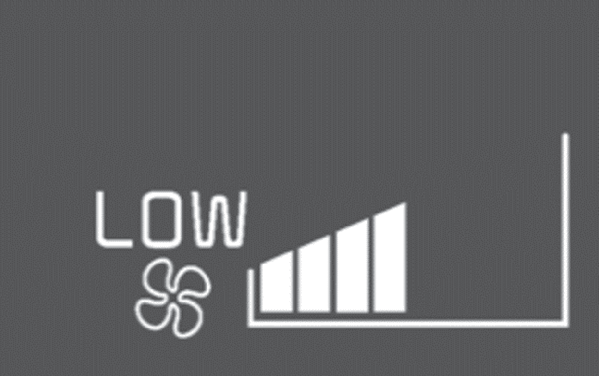

Level |
Indicator |
LCD Display |
Air flow |
|---|---|---|---|
|

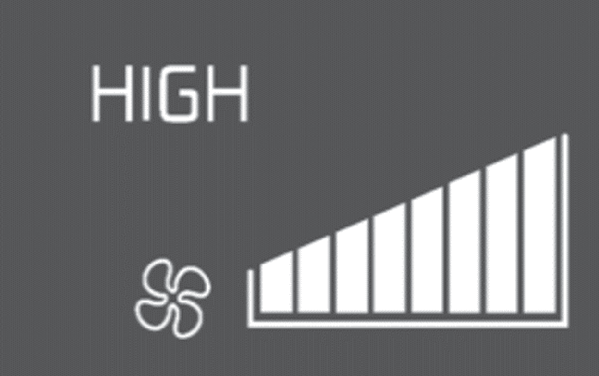

High |
 |
 |
1~8 |
|

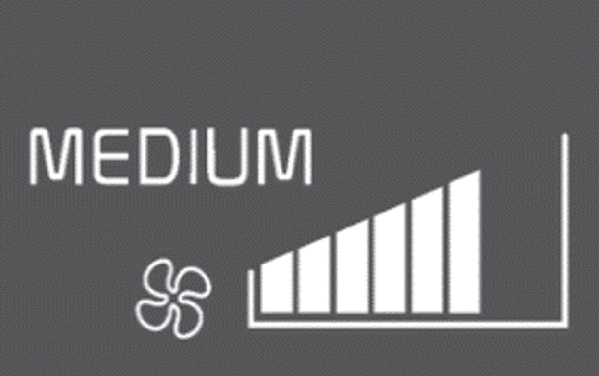

Medium |
 |
 |
1~6 |
|
Low |
 |
 |
1~4 |
-
To turn the automatic operation off, select any button or switch of the following:
-
Temperature controlling knob
-
Mode selection button
-
Air conditioning button
-
Front windscreen defroster button (Press the button one more time to deselect the front windscreen defroster function. The AUTO sign will illuminate on the information display once again.)
-
Fan speed control button
The selected function will be controlled manually whilst other functions operate automatically.
-
-
For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 22 °C (72 °F).
