Blind-Spot Collision Warning settings

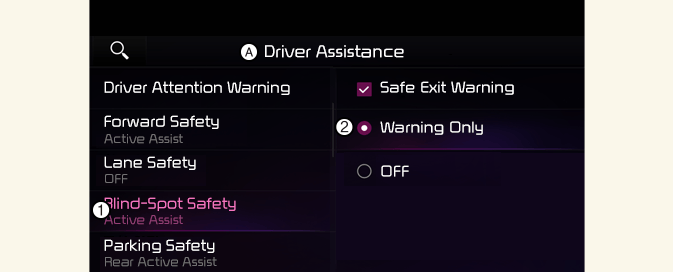

Blind-Spot Safety

A: Driver assistance

  1. Blind-spot safety

  2. Warning only

  3. Off

With the engine on, select or deselect 'Driver Assistance → Blind Spot Safety' from the Settings menu to set whether or not to use each function.

  • Warning Only: Blind-Spot Collision Warning will warn the driver with audible warning will be applied depending on the collision risk levels. Braking will not be assisted, so driver operate the vehicle directly.

  • Off: Blind-Spot Collision Warning will turn off.

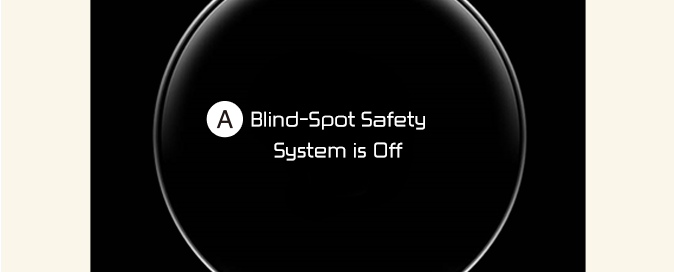

A: Blind-Spot Safety System is Off

If 'Blind-Spot Safety' function turn on (select except for 'Off' function), when the engine is restarted, the outside rearview mirror will blink for 3 seconds. It means the function is operated.

When the engine is restarted with Blind-Spot Collision Warning off, the 'Blind-Spot Safety System is Off' message will appear on the cluster.

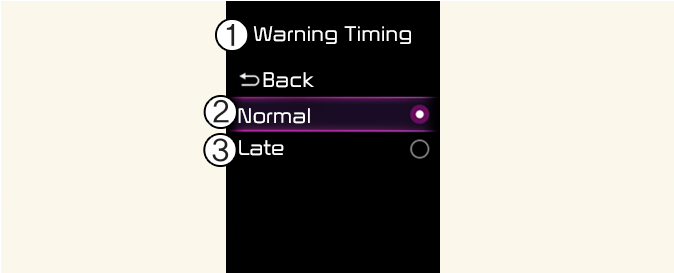

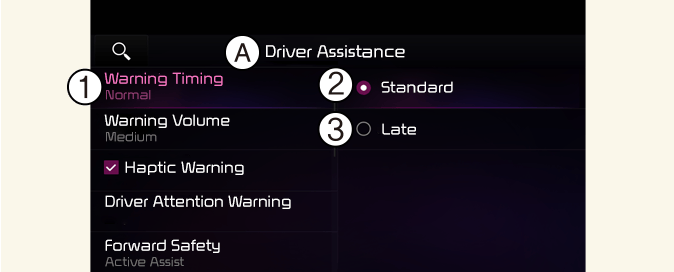

Warning Timing

A: Driver assistance

  1. Warning timing

  2. Normal

  3. Late

With the engine on, select Driver Assistance → Warning Timing from the Settings menu to change the initial warning activation time for Blind-Spot Collision Warning.

To select the Warning time Normal or Late.

  • Normal: Use under normal driving conditions. If it feels too sensitive, set the warning timing to Late.

NOTICE

If you change the Warning Timing, the warning time of other Driver Assistance systems may change.

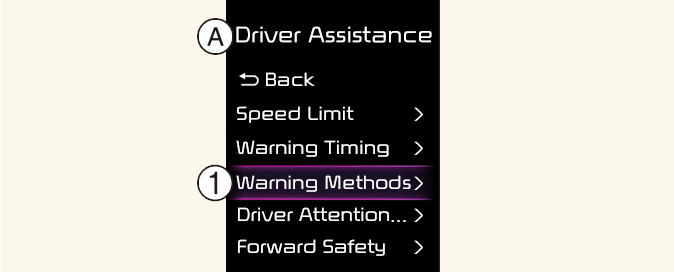

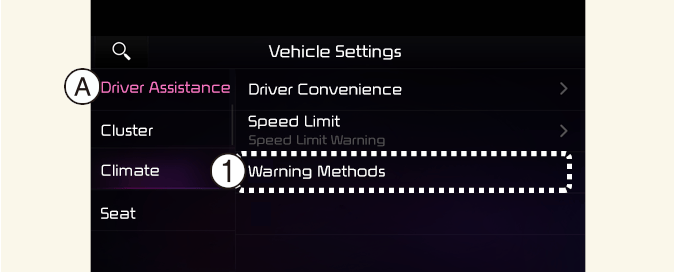

Warning methods

Type A
Type B

A: Driver Assistance

  1. Warning Methods

The Warning Methods can be set with the vehicle on. Select User Settings → Driver Assistance → Warning Methods from the settings menu in the instrument cluster or Settings → Vehicle → Driver Assistance → Warning Methods from the settings menu in the infotainment system to change the following settings:

  • Warning Volume: Adjusts the volume of the warning sound.

  • Haptic Warning: Activate the steering wheel vibration warning. (if equipped)

  • Driving Safety Priority: Lowers all other audio volumes when the Driving Safety system sounds a warning.

NOTICE

  • If you change the Warning Methods, it can be applied to each function of the driver assistance system. Please check and change it in each function.

  • If the vehicle is restarted, Warning Methods will maintain the last setting.

  • The setting menu may not exist based on vehicle specification.

  • The Warning Volume and Haptic Warning cannot be turned off at the same time. When one of the warning is turned off the other is activated.
