Suitability of each seating position for belted & ISOFIX Child Restraint Systems (CRS) according to UN regulations (Information for use by vehicle users and CRS manufacturers)
-
Yes: Suitable for fitment of the designated category of CRS
-
No: Not suitable for fitment of the designated category of CRS
-
"-": Not applicable
-
The table is based on LHD vehicle. Except for the front passenger seat, the table is valid for RHD vehicle. For RHD vehicle front passenger seat, please use information for the seating position number 3.
F: Forward facing
R: Rearward facing
|
CRS categories |
Seating positions |
|||||||
|---|---|---|---|---|---|---|---|---|
|
1 |
2 |
3 |
4 |
5 |
6 |
|||
|
Airbag ON |
Airbag Off |
|||||||
|
Universal belted CRS |
All mass groups |
- |
- |
No |
Yes*1 (F, R) |
Yes*2 (F, R) |
Yes*3 (F, R) |
Yes*2 (F, R) |
|
i-Size CRS |
ISOFIX CRF: F2,F2X,R1,R2 |
- |
- |
No |
No |
No |
No |
No |
|
Carry-cot (ISOFIX lateral facing CRS) |
ISOFIX CRF: L1,L2 |
- |
- |
No |
No |
No |
No |
No |
|
ISOFIX infant* CRS (*: ISOFIX baby CRS) |
ISOFIX CRF: R1 |
- |
- |
No |
No |
Yes (R) |
No |
Yes (R) |
|
ISOFIX toddler CRS - small |
ISOFIX CRF: F2,F2X, R2, R2X |
- |
- |
No |
No |
Yes (F, R) |
No |
Yes (F, R) |
|
ISOFIX toddler CRS - large* (*: not booster seats) |
ISOFIX CRF: F3, R3 |
- |
- |
No |
No |
Yes (F, R) |
No |
Yes (F, R) |
|
Booster seat - reduced width |
ISO CRF: B2 |
- |
- |
No |
No |
Yes |
No |
Yes |
|
Booster seat - full width |
ISO CRF: B3 |
- |
- |
No |
No |
Yes |
No |
Yes |
* 1: To install Universal CRS to 1st row passenger seating positions, seat back should be adjust to most upright.
* 2: To install Universal CRS to 2nd row outer seating positions, 1st row seat should be adjust forward properly.
* 3: Never install CRS with a support leg on 2nd row center seating position.
* If the vehicle headrest prevents proper installation of a CRS, the headrest of the seating position shall be readjusted or entirely removed.
* Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated.
|

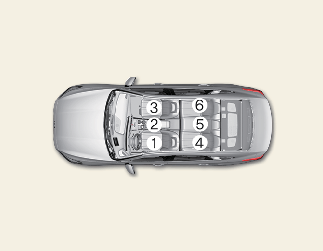

Seat Number |
Position in the vehicle |
Seating positions |
|---|---|---|
|
1 |
Front left |
![]() |
|
2 |
Front center |
|
|
3 |
Front right |
|
|
4 |
2nd row left |
|
|
5 |
2nd row center |
|
|
6 |
2nd row right |
