Trip information (trip computer)
The trip computer is a microcomputer- controlled driver information system that displays information related to driving.
Some driving information stored in the trip computer resets if the battery is disconnected.
Trip modes
* : if equipped
* : if equipped
To change the trip mode, scroll the toggle the switch (
/
) on the steering wheel.
Fuel economy (if equipped)
This information is always displayed at the bottom center of the Full LCD cluster.
-
The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.
-
Fuel economy range: 0~99.9 km/L, L/100 km or mpg
-
-
To make the average fuel economy be reset automatically whenever refueling, select the 'Vehicle settings → Cluster → Reset fuel economy' from the Settings menu of the Infotainment system.
-
At vehicle start - The information will automatically reset when the driver's door is opened after the ignition is turned off, or approximately 3 minutes have passed after the ignition is turned off.
-
After refueling - After refueling more than 6 liters and driving over 1 km/h (1 mph), the vehicle will reset to default automatically
-
Manually - To clear the average fuel economy manually, press the OK button on the steering wheel for more than 1 second when the average fuel economy is displayed.
-
The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 50 meters (0.03 miles) since the ENGINE START/STOP button is in ON position.
-
This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 10 km/h (6.2 mph).
-
Fuel economy range:
0~30 km/L, L/100 km or 0~50.0 mpg
-

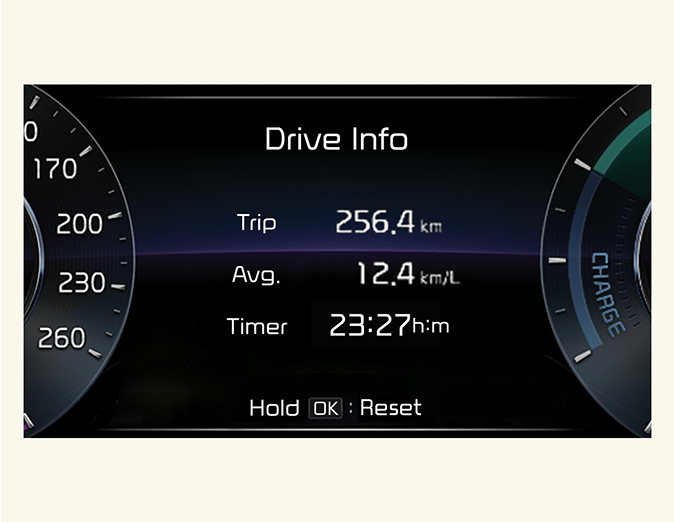

Drive Info display
This display shows the trip distance, the average fuel efficiency, and the total driving time information once per one ignition cycle.
-
Fuel efficiency is calculated after the vehicle has run for more than 300 meters.
-
The Driving Information will be reset 3 minutes after ignition has been turned off. So, when the vehicle ignition is turned on within 3 minutes, the information will not be reset.
-
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.
Information since refueling
This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refueling.
-
Information since refueling is calculated after the vehicle has run for more than 300 m (0.19 miles).
-
If you press "OK" button for more than 1 second after the information since refueling is displayed, the information will be reset.
-
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

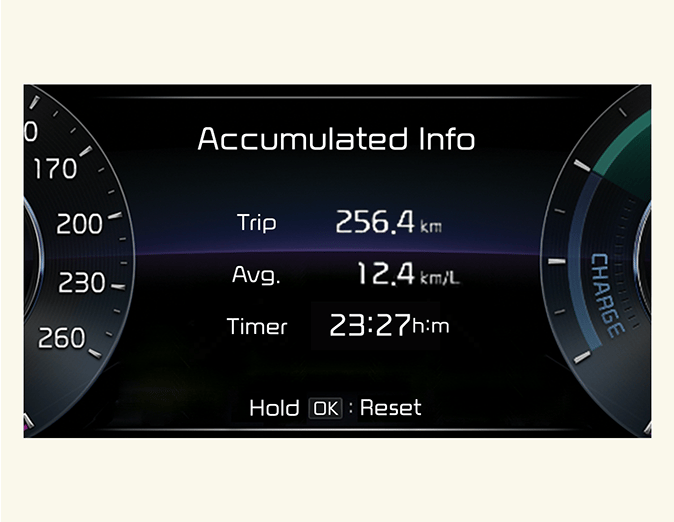

Accumulated driving information mode
This display shows the accumulated trip distance, the average fuel efficiency, and the total driving time.
-
Accumulated information is calculated after the vehicle has run for more than 300 meters.
-
If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.
-
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.
Digital speedometer
This digital speedometer display shows the speed of the vehicle.
Energy flow
The hybrid system informs the driver about its energy flow in various operating modes. While driving, the current energy flow is specified in 11 modes. For more details, refer to More Details.
