LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

Mode

Driving Assist

Trip Computer

Turn By Turn (TBT)*

User Settings*1

Information/Master Warning

Up/Down

Lane Keeping Assist*

Blind-Spot Collision-Avoidance Assist*

Smart Cruise Control*

Lane Following Assist*

Drive information

Route Guidance

Driver Assistance*

TPMS

Driver Attention Warning*

Since Refuelling

Destination Info

Cluster

Engine Temperature

Accumulated Info

Lights

The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.

Energy Flow

Door

Digital Speedometer*2

Convenience

Units

Reset

* : if equipped

* 1: Conventional cluster (Type A)

* 2: Full LCD cluster (Type B)

Driving Assist mode

This mode displays the state of:

  • Lane Keeping Assist*

    Blind-Spot Collision-Avoidance Assist*

    Smart Cruise Control*

    Lane Following Assist*

  • Driver Attention Warning (if equipped)

* For more details, refer to each function information in More Details.

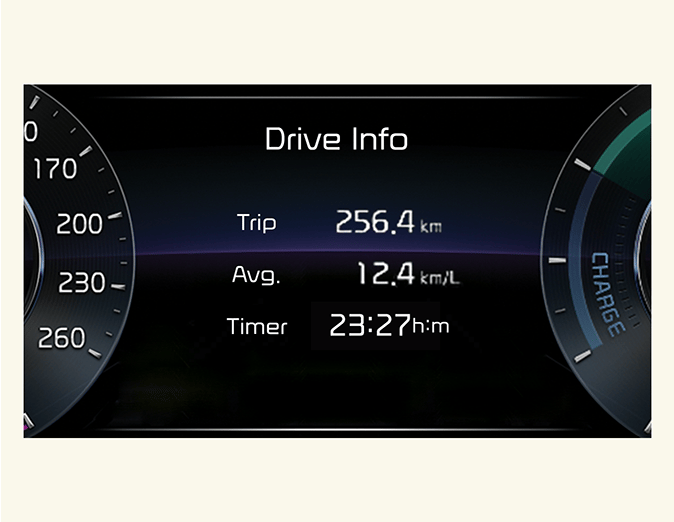

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

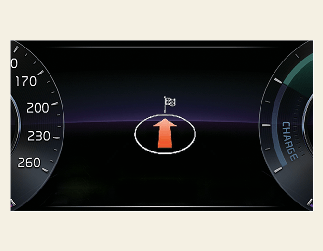

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Master warning mode

This warning light informs the driver the following situations.

  • Driver assistance system malfunction, limitation or radar/camera blockage

  • LED headlamp malfunction

  • Lamp malfunction

  • TPMS failure, low tire pressure, etc.

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

Information icon () will change to a Master Warning icon(). For Full LCD cluster (Type B), the same Master Warning icon () will appear under the Power gauge.

Information mode

Tire pressure

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

Engine Temperature

Indicates the temperature of the engine coolant when the engine is running.

NOTICE

When the gauge indicator gets out of thenormal range, toward the "130 or H(Hot)" position, it indicates overheatingof the engine. It may damage the engine.Do not continue driving with the overheatedengine.

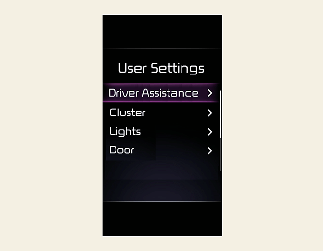

User settings mode (if equipped)

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

  1. Driver Assistance

  2. Cluster

  3. Lights

  4. Door

  5. Convenience

  6. Units

  7. Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Driver Assistance (if equipped)

Items

Explanation

Warning Timing

  • Normal/Late

To select the Warning timing

Warning Methods

  • Warning Volume

To select the Warning volume

Driver Attention Warning

  • Leading Vehicle Departure Alert

  • Inattentive Driving Warning

To select the function.

* For more details, refer to the More Details.

Forward Safety

To adjust Forward Collision-Avoidance Assist.

  • Forward Cross-Traffic Safety

  • Active Assist/Warning Only/Off

To select the functions.

* For more details, refer to the More Details or More Details.

Lane Safety

To adjust Lane Keeping Assist.

  • Assist/Warning Only/Off

To select the functions.

* For more details, refer to the More Details.

Blind-Spot Safety

  • Safe Exit Warning

To activate or deactivate Safe Exit Warning (if equipped).

* For more details, refer to More Details.

  • Safe Exit Assist

To activate or deactivate Safe Exit Assist (if equipped).

For more details, refer to More Details.

  • Active Assist/Warning Only/Off

* For more details, refer to More Details.

Parking Safety

  • Parking Distance Warning Auto On

  • Rear Cross-Traffic Safety

To Activate or deactivate Rear Cross-Traffic Collision-Avoidance Assist.

* For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

2. Cluster

Items

Explanation

Wiper/Lights Display

If this item is checked, the wiper/lights display will be activated.

Traffic Signs

If this item is checked, the traffic signs display will be activated.

Icy Road Warning

If this item is checked, the icy road warning will be activated.

Cluster Voice Guidance Volume

To adjust the Cluster Voice Guidance Volume.

  • 0~3 level

Welcome Sound

If this item is checked, the welcome sound function will be activated.

Theme Selection

  • Link to Drive Mode/Theme A/Theme B/Theme C/Theme D

If this item is checked, the cluster theme will change accordingly.

* The information provided may differ depending on which functions are applicable to your vehicle.

3. Lights

Items

Explanation

Illumination

To adjust the instrument cluster illumination.

  • 1~20 level

One Touch Turn Signal

  • Off: The one touch turn signal function will be deactivated.

  • 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

* For more details, refer to More Details.

Ambient Light Brightness

  • Off/1/2/3/4

To adjust the ambient light brightness.

Ambient Light Color

To adjust the ambient light color.

Headlight Delay

If this item is checked, the head lamp delay function will be activated.

* For more details, refer to More Details.

High Beam Assist

If this item is checked, High Beam Assist will be activated.

* For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

4. Door

Items

Explanation

Automatically Lock

  • Off: The auto door unlock operation will be canceled.

  • Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph)

  • Enable on shift: All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (With the Engine ON, it is activated.)

Automatically Unlock

  • Off: The auto door unlock operation will be canceled.

  • Vehicle Off: All doors will be automatically unlocked when the ENGINE START/STOP button is set to the OFF position.

  • On shift to P: All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.)

Power Trunk Opening Height

  • Full Open/Half Open

The power trunk will be opened in a certain angle.

Smart Trunk

To activate or deactivate the smart trunk with Auto Open.

* For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

5. Convenience

Items

Explanation

Seat Easy Access

  • Off/Normal/Extended

To select the seat movement.

Rear Occupant Alert

If this item is checked, the Rear Occupant Alert (ROA) display will be activated.

Welcome Mirror/Light

  • On door unlock/On driver approach

To select the welcome mirror/light function.

Wireless Charging System

  • If this item is checked, the wireless charging function will be activated.

Service Interval

  • Enable Service Interval

If this item is checked, the Service Interval function will beactivated.

  • Adjust Interval

If the service interval menu is activated, you may adjustthe time and distance.

  • Reset

To reset the service interval function.

* The information provided may differ depending on which functions are applicable to your vehicle.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

  • Service in: Displayed to inform the driver the remaining mileage and days to service.

  • Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

  • The battery connector is disconnected.

  • The battery is discharged.

  • The fuse switch is turned off.

6. Units

Items

Explanation

Speed Unit

  • km/h or MPH

To select the Speedometer unit.

Fuel Economy Unit

  • km/L, L/100km

To select the Fuel economy unit.

* For more details, refer to More Details.

Temperature Unit

  • °C/°F

To select the Temperature unit.

Tire Pressure Unit

  • psi, kPa, bar

To select the Tire Pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

7. Reset

Items

Explanation

Reset

You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
