Trip information (Trip computer)
Some driving information stored in the trip computer resets if the battery is disconnected.

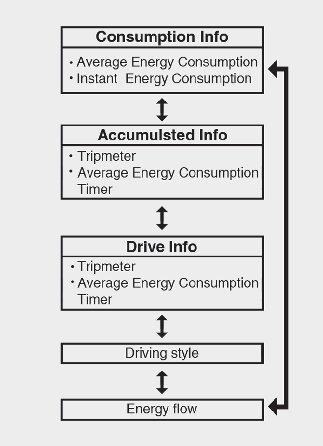

Trip Modes
To change the trip mode, scroll the toggle the switch (
/
) on the steering wheel.

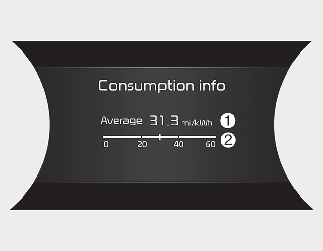

Consumption info display
-
The average energy consumption is calculated by the total driving distance and the high voltage battery consumption since the last average energy consumption reset.
-
The average energy consumption can be reset both manually and automatically.
Manual reset
To clear the average energy consumption manually, press the OK button on the steering wheel for more than 1 second when the average energy consumption is displayed.
Automatic reset
To automatically reset the average energy consumption select either menu from the 'Energy Consumption Reset' in the User Settings mode on the LCD display.
-
After ignition: The average energy consumption will reset automatically whenever it has passed 4 hours after turning OFF the vehicle.
-
After recharging: The average energy consumption will reset automatically when driving speed exceeds 1 mph (1 km/h), after recharging more than 10%.
The vehicle must be driven for a minimum of 0.19 miles (300 meters) since the last ignition key cycle before the average energy consumption will be recalculated.
-
The instantaneous energy consumption is displayed according to the bar graph in the LCD display while driving.
Accumulated Info display
This display shows the accumulated trip distance (1), the average energy consumption (2), and the total driving time (3).
The information is accumulated starting from the last reset.
To reset the details, press and hold the OK button when viewing the Accumulated driving info. The trip distance, the average energy consumption, and total driving time will reset simultaneously.
The accumulated driving information will continue to be counted while the vehicle is in the ready (
) mode (for example, when the vehicle is in traffic or stopped at a stop light).
The vehicle must be driven for a minimum of 0.19 miles (300 meters) since the last ignition key cycle before the average accumulated driving information is recalculated.

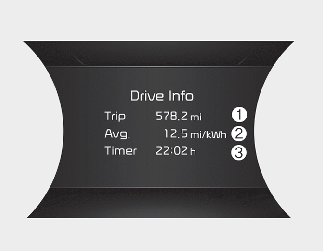

Drive Info display
This display shows the trip distance (1), the average energy consumption (2), and the total driving time (3).
The information is combined for each ignition cycle. However, when the vehicle has been OFF for 4 hours or longer the Drive Info screen will reset.
To reset the details, press and hold the OK button when viewing the Drive Info. The trip distance, the average energy consumption, and total driving time will reset simultaneously.
The driving information will continue to be counted while the vehicle is in the ready () mode (for example, when the vehicle is in traffic or stopped at a stop light).
The vehicle must be driven for a minimum of 0.19 miles (300 meters) since the last ignition key cycle before the driving information is recalculated.

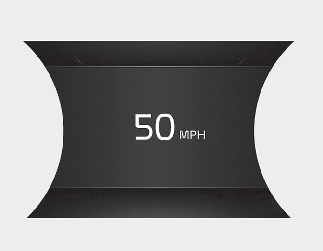

Digital speedometer
This digital speedometer display shows the speed of the vehicle.

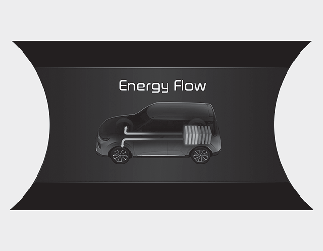

Energy flow
The electric vehicle system informs the driver its energy flow in various operating modes. While driving, the current energy flow is specified in 3 modes.

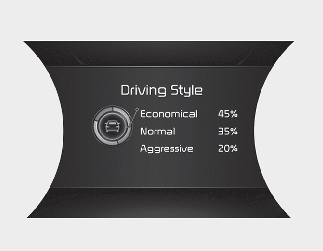

Driving style
This display shows whether the driver's driving style is Economical, Normal or Aggressive.
