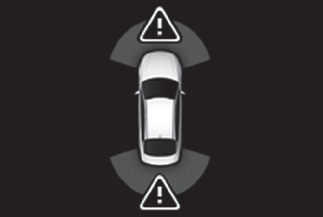

Forward/Reverse Parking Distance Warning (PDW) (if equipped)

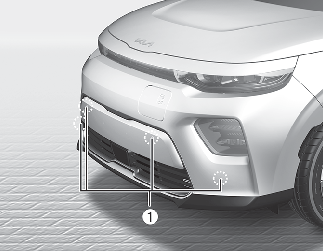

The sensing range and objects detectable ultrasonic sensors (1) are limited. Whenever moving pay as much attention to what is in front and behind of you as you would in a vehicle without Forward/Reverse Parking Distance Warning.
Forward/Reverse Parking Distance Warning is a supplemental function only.
The operation of Forward/Reverse Parking Distance Warning can be affected by several factors (including environmental conditions).
It is the responsibility of the driver to always check the front and rear views before and while parking.
Forward/Reverse Parking Distance Warning operation
-

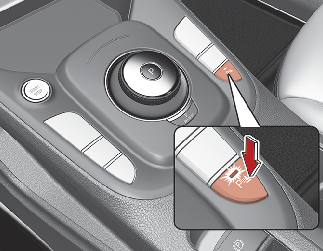

Forward/Reverse Parking Distance Warning activates when the Parking Safety button is pressed with the ignition switch or START/STOP button ON.
-
The indicator of the Parking Safety button turns on automatically and activates Forward/Reverse Parking Distance Warning when you shift the gear to the R (Reverse) position. It will turn off automatically when you drive above 6.2 mph (10 km/h).
-
The sensing distance while backing up is approximately 48 in (120 cm) when you are driving less than 6.2 mph (10 km/h).
-
The sensing distance while moving forward is approximately 40 in (100 cm) when you are driving less than 6.2 mph (10 km/h).
-
When more than two objects are sensed at the same time, the closest one will be recognized first.
-
The side sensors are activated when you shift the gear to the R (Reverse) position.
-
If the vehicle speed is above 6.2 mph (10 km/h) the function automatically turns off.
It may not operate if the vehicle's distance from the object is already less than approximately 10 in (25 cm) when the function is activated.
|
Distance from object |
Warning indicator |
Warning sound |
||
|---|---|---|---|---|
|
When driving forward |
When driving backward |
|||
|
24 ~ 40 in (60 ~ 100 cm) |
Front |
 |
- |
Buzzer beeps intermittently |
|
24 ~ 48 in (60 ~ 120 cm) |
Rear |
- |
 |
Buzzer beeps intermittently |
|
12 ~ 24 in (30 ~ 60 cm) |
Front |
 |
 |
Buzzer beeps frequently |
|
Rear |
- |
Buzzer beeps frequently |
||
|
less than 12 in (less than 30 cm) |
Front |
 |
 |
Buzzer beeps continuously |
|
Rear |
- |
Buzzer beeps continuously |
||
-
The actual warning sound and indicator may differ from the illustration depending on the objects or sensor status.
-
Do not wash the vehicle's sensor with high pressure water.
-
This function can only sense objects within the range and location of the sensors; it cannot detect objects in other areas where sensors are not installed. Also, small or slim objects, such as poles, or objects located between sensors may not be detected by the sensors.
Always visually check behind the vehicle when backing up.
-
Be sure to inform any drivers of the vehicle that may be unfamiliar with the function regarding the function’s capabilities and limitations.
Forward/Reverse Parking Distance Warning not operation
-
Moisture is frozen to the sensor. (It will operate normally when moisture melts.)
-
Sensor is covered with foreign matter, such as snow or water, or the sensor cover is blocked. (It will operate normally when the material is removed or the sensor is no longer blocked.)
-
Sensor is stained with foreign matter such as snow or water. (Sensing range will return to normal when removed.)
-
The Parking Safety button is off.
-
Driving on uneven road surfaces such as unpaved roads, gravel, bumps, or gradient.
-
Objects generating excessive noise such as vehicle horns, loud motorcycle engines, or truck air brakes can interfere with the sensor.
-
Heavy rain or water spray.
-
Wireless transmitters or mobile phones present near the sensor.
-
Sensor is covered with snow.
-
The sensor is covered with foreign matter such as snow or water. (The sensing range will return to normal when removed.)
-
Outside air temperature is extremely hot or cold.
-
Sharp or slim objects such as ropes, chains or small poles.
-
Objects which tend to absorb the sensor frequency such as clothes, sound absorbent material or snow.
-
Undetectable objects smaller than 40 in (100 cm) in height and narrower than 6 in (14 cm) in diameter.
-
The warning may not sound consistently depending on the speed and shapes of the objects detected.
-
Forward/Reverse Parking Distance Warning may malfunction if the vehicle bumper height or sensor installation has been modified. Any non-factory installed equipment or accessories may also interfere with the sensor performance.
-
Sensor may not recognize objects less than 12 in (30 cm) from the sensor, or it may sense an incorrect distance. Use with caution.
-
When the sensor is frozen or stained with snow or water, the sensor may be inoperative until the stains are removed using a soft cloth.
-
Do not push, scratch or strike the sensor with any hard objects that could damage the surface of the sensor. Sensor damage could occur.
This function can only sense objects within the range and location of the sensors, it cannot detect objects in other areas where sensors are not installed. Also, small or slim objects, or objects located between sensors may not be detected.
Always visually check in front and behind the vehicle when driving. Be sure to inform any drivers in the vehicle that may be unfamiliar with the function regarding the function’s capabilities and limitations.
Pay close attention when the vehicle is driven close to objects on the road, particularly pedestrians, and especially children. Be aware that some objects may not be detected by the sensors, due to the objects distance, size or material, all of which can limit the effectiveness of the sensor. Always perform a visual inspection to make sure the vehicle is clear of all obstructions before moving the vehicle in any direction.
Self-diagnosis
When you shift the gear to the R (Reverse) position and if one or more of the below occurs you may have a malfunction in Forward/Reverse Parking Distance Warning.
-
You don't hear an audible warning sound or if the buzzer sounds intermittently.
-
(blinks) is displayed.
If this occurs, we recommend that the function be checked by an authorized Kia dealer.
Your new vehicle warranty does not cover any accidents or damage to the vehicle or injuries to its occupants. Always drive safely and cautiously.
