Reverse Parking Distance Warning (PDW) (if equipped)

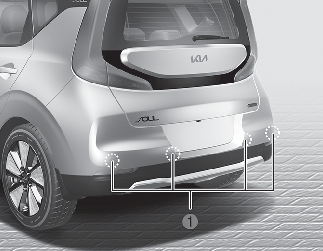

Reverse Parking Distance Warning is a supplemental function and it is not intended to nor does it replace the need for extreme care and attention of the driver. The sensing range and objects detectable by Rear ultrasonic sensors (1) (if equipped) are limited. Whenever backing-up, pay as much attention to what is behind you as you would in a vehicle without Reverse Parking Distance Warning.
Reverse Parking Distance Warning
Never rely solely on Reverse Parking Distance Warning. Always perform a visual inspection to make sure the vehicle is clear of all obstructions before moving the vehicle in any direction. Stop immediately if you are aware of a child anywhere near your vehicle. Some objects may not be detected by the sensors, due to the object's size or material.
Reverse Parking Distance Warning operation
-
Reverse Parking Distance Warning will activate when the indicator on the Parking Safety button is not illuminated. If you desire to deactivate Reverse Parking Distance Warning, press the Parking Safety button again. (The indicator on the button will illuminate.) To turn the function on, press the button again. (The indicator on the button will go off.)
-
Reverse Parking Distance Warning will activate when backing up with the ignition switch ON.
If the vehicle is moving at a speed over 3 mph (5 km/h), the function may not be activated correctly.
-
The sensing distance while Parking Distance Warning is in operation is approximately 48 in (120 cm) at the rear bumper center area, 24 in (60 cm) at the rear bumper side area.
-
When more than two objects are sensed at the same time, the closest one will be recognized first.
-
When an object is 24 in to 48 in (60 cm to 120 cm) from the rear bumper: Buzzer beeps intermittently.
-
When an object is 12 in to 24 in (30 cm to 60 cm) from the rear bumper: Buzzer beeps more frequently.
-
When an object is within 12 in (30 cm) of the rear bumper:
Buzzer sounds continuously.
Reverse Parking Distance Warning not operation
-
Moisture is frozen to the sensor. (It will operate normally once the moisture clears.)
-
The sensor is covered with foreign matter, such as snow or water, or the sensor cover is blocked. (It will operate normally when the material is removed or the sensor is no longer blocked.)
-
Driving on uneven road surfaces (unpaved roads, gravel, bumps, gradient).
-
Objects generating excessive noise (vehicle horns, loud motorcycle engines, or truck air brakes) are within range of the sensor.
-
Rain or water spray exists.
-
Wireless transmitters or mobile phones are within range of the sensor.
-
The sensor is covered with snow.
-
Trailer towing
-
The sensor is covered with foreign matter such as snow or water. (The sensing range will return to normal when removed.)
-
Outside air temperature is extremely hot or cold.
-
Sharp or slim objects such as ropes, chains or small poles.
-
Objects which tend to absorb the sensor frequency such as clothes, sound absorbent material or snow.
-
Undetectable objects smaller than 40 in (100 cm) in height and narrower than 6 in (15 cm) in diameter.
Reverse Parking Distance Warning precautions
-
Reverse Parking Distance Warning may not sound consistently depending on the speed and shapes of the objects detected.
-
Reverse Parking Distance Warning may malfunction if the vehicle bumper height or sensor installation has been modified or damaged. Any non-factory installed equipment or accessories may also interfere with the sensor performance.
-
The sensor may not recognize objects less than 12 in (30 cm) from the sensor, or it may sense an incorrect distance. Use caution.
-
When the sensor is frozen or covered with snow, dirt, or water, the sensor may be inoperative until the material is removed using a soft cloth.
-
To prevent damage, do not push, scratch or strike the sensor.
This function can only sense objects within the range and location of the sensors; it cannot detect objects in other areas where sensors are not installed. Also, small or slim objects, such as poles or objects located between sensors may not be detected by the sensors. Pay close attention when the vehicle is driven close to objects on the road, particularly pedestrians, and especially children. Always visually check behind the vehicle when backing up.
Be sure to inform any drivers of the vehicle that may be unfamiliar with the function regarding the function’s capabilities and limitations.
Self-diagnosis
If you don't hear an audible warning sound or if the buzzer sounds intermittently when shifting the gear to the R (Reverse) position, this may indicate a malfunction in Reverse Parking Distance Warning. If this occurs, have your vehicle checked by an authorized Kia dealer as soon as possible.
Your new vehicle warranty does not cover any accidents or damage to the vehicle or injuries to its occupants. Always drive safely and cautiously.
