Front seat adjustment for power seat (if equipped)
The driver's seat can be adjusted by using the control switches located on the outside of the seat cushion. Before driving, adjust the seat to the proper position so as to easily control the steering wheel, pedals and switches on the instrument panel.
The power seat is operable with the ignition OFF.
Therefore, children should never be left unattended in the car.
-
The power seat is driven by an electric motor. Stop operating once the adjustment is completed. Excessive operation may damage the electrical equipment.
-
When in operation, the power seat consumes a large amount of electrical power. To prevent unnecessary charging system drain, don't adjust the power seat longer than necessary while the engine is not running.
-
Do not operate two or more power seat control switches at the same time. Doing so may result in power seat motor or electrical component malfunction.

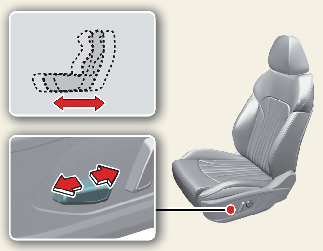

Moving forward and backward
To move the seat forward or backward:
-
Push the control switch forward or rearward to move the seat to the desired position.
-
Release the switch once the seat reaches the desired position.

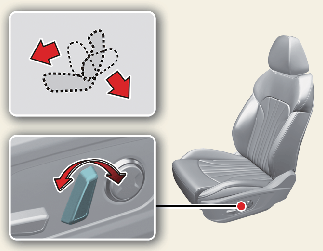

Reclining seatback
To recline the seatback:
-
Push the control switch forward or rearward to move the seatback to the desired angle.
-
Release the switch once the seat reaches the desired position.

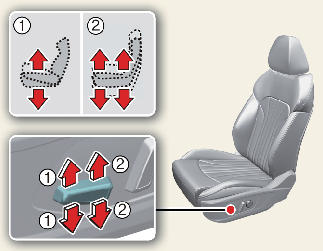

Changing seat cushion tilt and height
To change the height of the seat:
-
Pull the front portion of the control switch up to raise or press down to lower the front part of the seat cushion.
Pull the rear portion of the control switch up to raise or press down to lower the seat cushion.
-
Release the switch once the seat reaches the desired position.

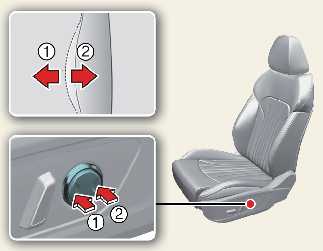

Adjusting lumbar support (if equipped)
The lumbar support can be adjusted by pressing the lumbar support switch on the side of the seat.
-
Press the front portion of the switch to increase support, or the rear portion of the switch, to decrease support.
-
Release the switch once it reaches the desired position.

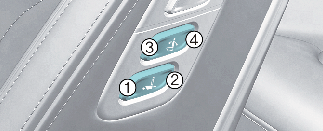

Front passenger seat control (if equipped)
The rear seat passenger may use the switches to control the front passenger seat.
Sliding forward or rearward:
-
To move the front passenger seat forward, press the switch (1). To move the front passenger seat rearward, press the switch (2).
Angle adjustment:
-
To recline the front passenger seat forward, press the switch (3). To recline the front passenger seat rearward, press the switch (4).
Relaxion comfort seat (for passenger’s seat, if equipped)
Relaxion comfort seats distribute body pressure and concentrated weight on specific body parts that occur while sitting in the same position for a long period of time. The seat relieves fatigue and discomfort by providing the optimal sit position.
Take the following precautions when using the relaxion comfort seat:
-
Do not use the relaxion comfort seat while the vehicle is moving. Using the comfort seat could increase the risk of injuries in the event of a collision or sudden stop.
-
Do not use the relaxion comfort seat while the vehicle is moving. The shoulder belt may not adhere to your chest firmly.

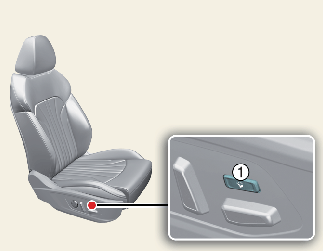

If you press the (1) switch, the seat is automatically adjusted to the relaxion comfort seat position.
-
The seat cushion will move forward or rearward.
-
The seat cushion and seatback angle will be adjusted.
You can adjust moves simultaneously the seat directly by using the seat adjustment switches (2) and (3).

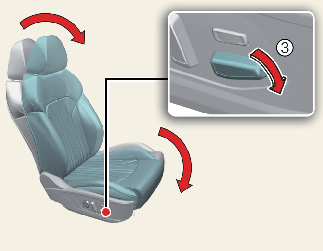

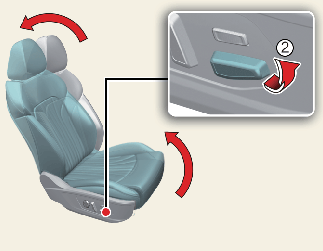

If you pull up the (2) switch, the seat will be slightly adjusted to the return position. If you push down the (3) switch, the seat will be slightly adjusted to the relaxion comfort position.
Do not use the seat switches simultaneously. It may damage the seat system.
-
Return function
If you press the switch (1) while the seat is in the relaxion comfort seat position, the seat return backs to the position the front passenger has adjusted.
