Defogging logic (if equipped)

To reduce the possibility of fogging up the inside of the windshield, the air intake or air conditioning is controlled automatically according to certain conditions such as or position.

To cancel automatic defogging logic or return to the automatic defogging logic, do the following.

Manual climate control system

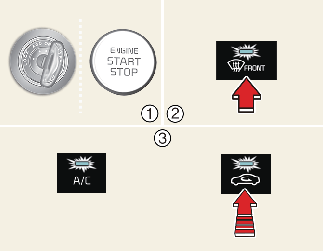

  1. Turn the ENGINE START/STOP button to the ON position.

  2. Select the () position.

  3. While holding the air conditioning button (A/C) pressed, press the air intake control button at least 5 times within 3 seconds.

    The indicator light in the air intake control button will blink 3 times. It indicates that the defogging logic is canceled or returned to the programmed status.

If the battery has been discharged or disconnected, it resets to the defog logic status.

Automatic climate control

  1. Turn the ENGINE START/STOP button to the ON position.

  2. Press the defroster button ().

  3. While pressing the air conditioning (A/C) button, press the air intake control button at least 5 times within 3 seconds.

    The recirculation indicator blinks 3 times in 0.5 second of intervals. It indicates that the defogging logic is canceled or returned to the programmed status.

If the battery has been discharged or disconnected, it resets to the defog logic status.
