Replacing engine compartment fuse

1
Turn the ignition switch or ENGINE START/STOP button and all other switches off.
2

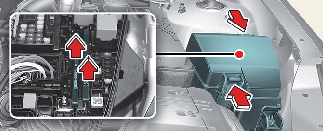

Remove the fuse panel cover by pressing the tab and pulling the cover up.
3
Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4
Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.
CAUTION

After checking the fuse panel in the engine compartment, securely install the fuse panel cover through the audible clicking sound.

If not, electrical failures may occur from water contact.

Main fuse (Multi fuse)

If the multi fuse is blown, it must be removed as follows:

1
Turn the ignition switch or ENGINE START/STOP button and all other switches off.
2
Disconnect the negative battery cable.
3
Remove the nuts shown in the picture above.
4
Replace the fuse with a new one of the same rating.
5
Reverse these steps to reinstall the multi fuse.
NOTICE

If the multi fuse is blown, consult a professional workshop. Kia recommends to consult an authorized Kia dealer/service partner.

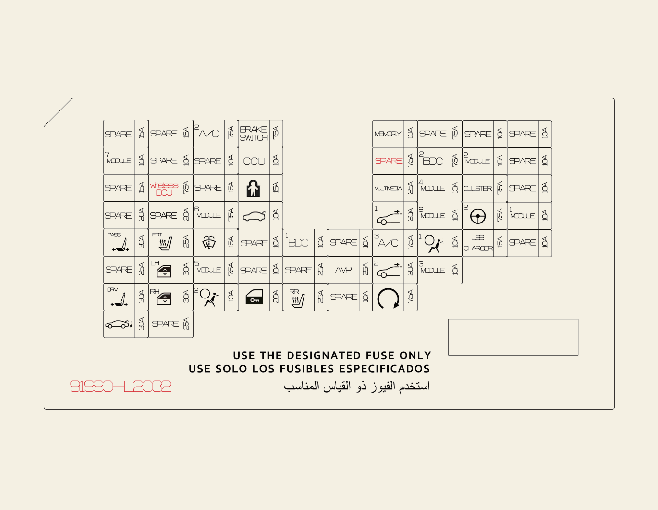

Driver's side fuse panel

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.

Refer to the following table for a description of the fuse.

ICU Junction Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

S/HEATER (FRT)

25 A

Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module

TRUNK

10 A

Trunk Lid Relay

DOOR LOCK

20 A

Door Lock Relay, Door Unlock Relay

MODULE1

7.5 A

Front Console Switch #1, Driver/Passenger Smart Key Outside Handle

CHILD LOCK

15 A

Rear Child Lock Relay, Rear Child Unlock Relay

MODULE3

10 A

Hazard Switch, Front Mood Lamp Unit, Driver/Passenger Mood Lamp, Front Mood Lamp Right Handle side, Data Link Connector, Driver Door Module, Passenger Seat Relax Un

S/HEATER (RR)

25 A

Rear Seat Warmer Control Module

P/SEAT (PASS)

30 A

Passenger Seat Manual Switch, Passenger Seat Relax Unit

MODULE6

10 A

Sport Mode Switch, Driver Door Module

SAFETY P/WINDOW (RH)

30 A

Passenger Safety Power Window Module, Passenger Power Window Switch, Rear Power Window switch Left Handle side

P/SEAT (DRV)

30 A

Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module

IBU1

15 A

IBU (Integrated Body Control Unit), Ignition Switch

AMP

25 A

AMP (Amplifier)

SAFETY P/WINDOW (LH)

30 A

DriverSafety Power Window Module, Rear Power Window Switch Left Handle side

BRAKE SWITCH

10 A

Stop Lamp Switch, IBU (Integrated Body Control Unit)

SUNROOF2

20 A

Sunroof Controller (Blind Motor)

AIR BAG2

10 A

SRS (Supplemental Restraint System) Control Module

AIR BAG1

15 A

SRS (Supplemental Restraint System) Control Module

MEMORY

10 A

Driver IMS (Integrated memory system) Module, Driver/Passenger Power Outside Mirror, Rain Sensor, Head-Up Display, Instrument Cluster, Air Conditioner Control Module, Air Conditioner Switch

E-CALL

10 A

MTS (Mozen Telematics System) E-call Module

MULTI MEDIA

15 A

Audio, Audio/Video & Navigation Head Unit

SUNROOF1

20 A

Sunroof Controller (Glass Motor)

MODULE7

10 A

Front Console Switch #1/#2, Front View Camera, Crash Pad Switch, IBU (Integrated Body Control Unit), ADAS Parking ECU

MODULE5

10 A

Stop Lamp Switch

MODULE8

10 A

Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Passenger Seat Relax Unit, Rear Seat Warmer Control Module, AMP (Amplifier), Driver IMS (Integrated memory system) Module, Data Link Connector, Audio, Audio/Video & Navigation Head Unit, Head Lamp Left Handle side/Right Handle side, Surround View Monitor Unit, Air Conditioner Control Module, Air Conditioner Switch, Front Wireless Charger, MTS (Mozen Telematics System) E-Call Module, Electro Chromic Mirror, Overhead Console Lamp (Lamp), Crash Pad Switch, ATM Shift Lever Indicator

MODULE2

10 A

Engine Room Junction Block (W/S Heated Glass Left Handle side Relay/W/S Heated Glass Right Handle side Relay), Cooling Fan Motor, ADAS Parking ECU, Passenger Seat Relax Unit, Front Seat Warmer Control Module Front Air Ventilation Seat Control Module, Rear Seat Warmer Control Module

MDPS*1

7.5 A

Motor Driven Power Steering Unit

A/C

7.5 A

Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay)

MODULE4

10 A

Overhead Console Lamp (Lamp), Rear USB Charger, Rear Power Outlet, IBU (Integrated Body Control Unit), MTS (Mozen Telematics System) E-Call Module, Audio, Audio/Video & Navigation Head Unit, AMP (Amplifier), Surround View Monitor Unit, ADAS Parking ECU

MODULE9

7.5 A

IBU (Integrated Body Control Unit)

CLUSTER

10 A

Instrument Cluster, Head-Up Display

WASHER

15 A

Multifunction Switch

START

7.5 A

B/Alarm Relay, Transmission Range Switch

POWER OUTLET

20 A

Rear Power Outlet

IBU2

7.5 A

IBU (Integrated Body Control Unit)

A/BAG IND

7.5 A

Instrument Cluster, Overhead Console Lamp (Lamp)

* 1. MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).

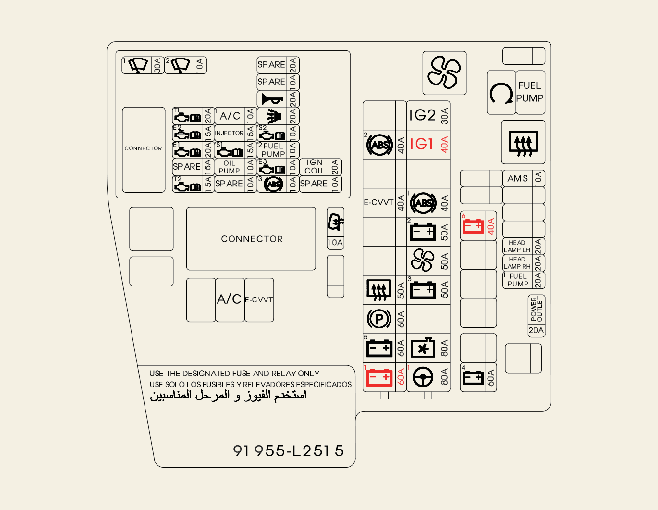

Engine compartment fuse panel

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.

Refer to the following table for a description of the fuse.

Engine Room Junction Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

ABS2

30 A

ESP (Electronic Stability Program) Control Module

E-CVVT

40 A

E-CVVT Relay

IG1

40 A

PCB Block (ACC Relay, IG1 Relay)

REAR DEFOGGER

50 A

Rear Defogger Relay

PARKING BRAKE

60 A

ESP (Electronic Stability Program) Control Module

B+5

60 A

PCB Block (Engine Control Relay, Fuse - ECU2, TCU1, A/C1, B/A HORN, HORN, WIPER1)

IG2

30 A

Start Relay, PCB Block (IG2 Relay)

ABS1

40 A

ESP (Electronic Stability Program) Control Module

B+2

50 A

ICU Junction Block (Fuse - IBU1, AMP, IPS1, IPS2, IPS3, IPS4, IPS10)

BLOWER

50 A

Blower Relay

B+3

50 A

ICU Junction Block (IPS5, IPS6, IPS7, IPS8, IPS9, IPS11)

B+1

50 A

ICU Junction Block (Fuse - MODULE1, CHILD LOCK, S/HEATER (RR), P/SEAT (PASS), SAFETY P/WINDOW (RH), P/SEAT (DRV), SAFETY P/WINDOW (LH))

COOLING FAN

80 A

Cooling Fan Motor

MDPS1*1

80 A

Motor Driven Power Steering Unit

POWER OUTLET1

40 A

PCB Block (Power Outlet Relay)

W/S HTD GLASS RH

40 A

W/S Heated Glass Right Handle side Relay

W/S HTD GLASS LH

40 A

W/S Heated Glass Left Handle side Relay

B+4

60 A

ICU Junction Block (Long Term Load Latch Relay, Fuse - S/HEATER (FRT), TRUNK, DOOR LOCK, MODULE3, BRAKE SWITCH, SUNROOF2, AIR BAG2, SUNROOF1)

AMS

10 A

Battery Sensor

FUEL PUMP

20 A

Fuel Pump Relay

A/C2

10 A

Air Conditioner Control Module

MIRROR HEATED

10 A

Driver/Passenger Power Outside Mirror, Air Conditioner Control Module, Air Conditioner Switch

* 1. MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).

PCB Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

TCU2

15 A

Transmission Range Switch

ABS3

10 A

ESP (Electronic Stability Program) Control Module

CRUISE

10 A

Front Radar

ECU3

10 A

PCM (Power train Control Module)

IGN COIL

20 A

Ignition Coil #1#2/#3/#4, Condenser(G4NA)

ECU1

20 A

PCM (Power train Control Module)

SENSOR1

15 A

Oxygen Sensor (Up/down)

FUEL PUMP

10 A

Engine Room Junction Block (Fuel Pump Relay)

ECU2

15 A

PCM (Power train Control Module)

INJECTOR

15 A

Injector #1/#2/#3/#4

SENSOR2

10 A

G4NA : Variable Intake Solenoid Valve, Oil Control Valve (Intake/Exhaust), Purge Control Solenoid Valve, Engine Room Junction Block (Air Conditioner Comp Relay) G4K3 : Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Oil Control Valve, Purge Control Solenoid Valv Engine Room Junction Block (Air Conditioner Comp Relay)

TCU1

20 A

PCM (Power train Control Module)

A/C1

10 A

Engine Room Junction Block (Air Conditioner Comp Relay)

B/A HORN

20 A

B/alarm Horn Relay

HORN

20 A

Horn Relay

POWER OUTLET3

20 A

Front Power Outlet Right Handle side, Front USB Charger

POWER OUTLET2

20 A

Front Power Outlet Left Handle side

WIPER1

30 A

Wiper Relay

WIPER2

10 A

PCM (Power train Control Module), IBU (Integrated Body Control Unit)

Refer to the following table for the relay type.

Relay Name

Type

Blower Relay

MINI

Start Relay

MICRO

Fuel Pump Re Relay

MICRO

Rear Heated Relay

MINI

W/S Heated Glass Left Handle side Relay

MICRO

W/S Heated Glass Right Handle side Relay

MICRO

E-CVVT Relay

MICRO

Air Conditioner Relay

MICRO
