Trip information (trip computer)

The trip computer is a microcomputer- controlled driver information system that displays information related to driving.

NOTICE

Some driving information stored in the trip computer resets if the battery is disconnected.

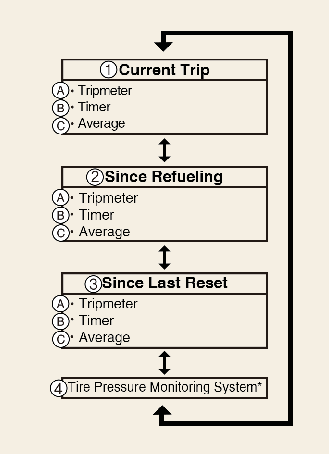

Trip Modes

A: Tripmeter

B: Timer

C: Average

  1. Current Trip

  2. Since Refueling

  3. Since Last Reset

  4. Tire Pressure Monitoring System

*: if equipped

To change the trip mode, scroll the toggle the switch ( / ) on the steering wheel.

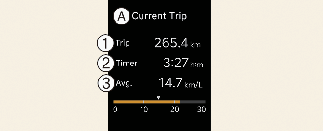

Drive Info display

This display shows the trip distance (1), the average fuel efficiency (2), and the total driving time (3) information once per one ignition cycle.

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

  • Fuel efficiency is calculated after the vehicle has run for more than 300 meters.

  • If opening the driver's door after turning off the engine or 3 minutes passes after restarting the engine, Driving Information is reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

Fuel economy

Average Fuel Economy

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

  • The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.

    • Fuel economy range: 0~99.9 L/100km, km/L or MPG

  • The average fuel economy can be reset both manually and automatically.

NOTICE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 300 meters (0.19 miles) after the ignition switch or ENGINE START/STOP button is turned to ON.

Instant Fuel Economy

  • This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 8 km/h (5 MPH).

    • Fuel economy range:

      0~30 L/100km, km/L or 0~50 MPG

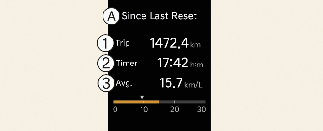

Accumulated driving information mode

This display shows the accumulated trip distance (1), the average fuel efficiency (2), and the total driving time (3).

A: Since Last Reset

  1. Trip

  2. Timer

  3. Avg.

  • Accumulated information is calculated after the vehicle has run for more than 300 meters.

  • If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.
