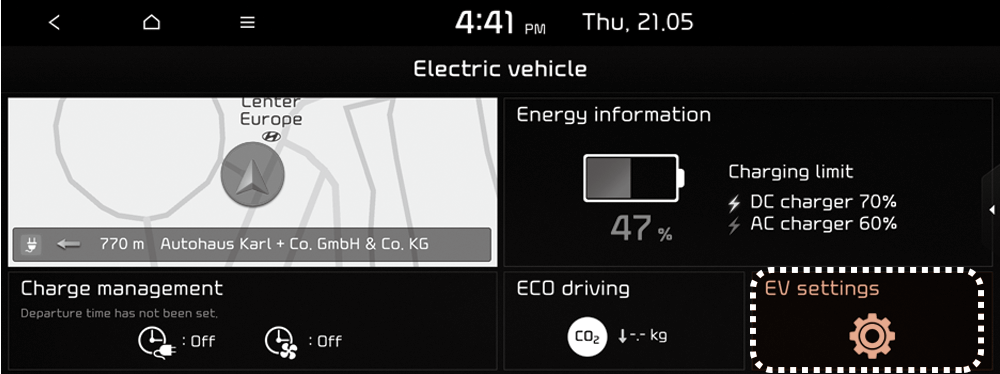

Select 'EV → EV Setting' on the screen.

You can set Winter Mode, Warning and EV route functions.

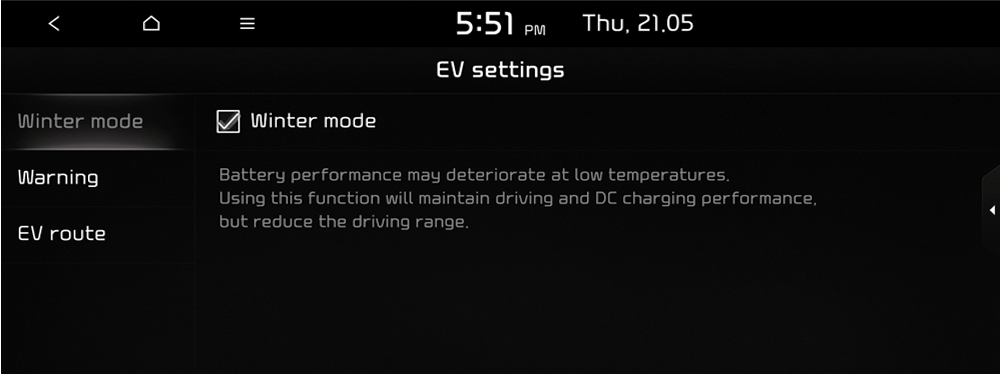

• The Winter mode is efficient during the winter time when the high voltage battery temperature is low. This mode is recommended to improve driving and DC charging performances during winter by raising the battery temperature to an adequate level. However, this may reduce the distance to empty significantly as the high voltage battery consumes a lot more electricity.

• Also, if the battery temperature is low during driving or when scheduled air conditioner/heater is activated, this mode is operated to improve driving performance.

  However, when the battery level is low, the mode is not operated to ensure driving distance.

* This mode is available for the vehicles equipped with the battery heater.

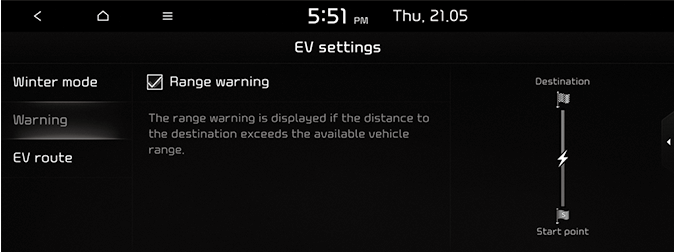

Range Warning:

If the destination set in the navigation cannot be reached with the remaining battery, a warning message is displayed.

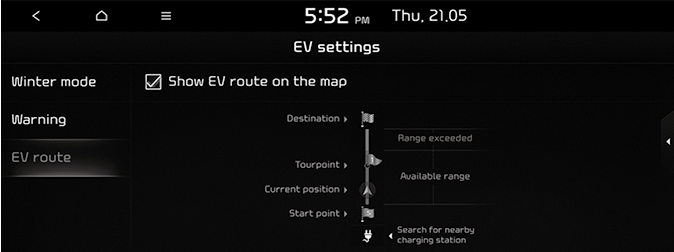

You can apply electric car-related functions for guiding the route. It allows you to check the distance that you can go with the current battery amount. Travelable and non-travelable sections on your way to the destination are displayed on the screen. The search station icon is also displayed so that you can find nearby stations immediately.

The high voltage battery is used instead of the 12V auxiliary battery for operating the convenient features of the vehicle. When driving is not necessary such as while camping or when stopping the vehicle for a long time, it is possible to use the electrical devices (audio, lights, air conditioner, heater, etc.) for long hours.

System setting and activation

System setting

The driver can activate the Utility mode function when the following conditions are satisfied.

• The vehicle is in READY mode and the gear is shifted to P (Park).

• The EPB (Electronic Parking Brake) is not a malfunction.

• Convenience → Utility mode is selected from the User Settings mode in the cluster LCD display.

System activation

When the system is activated:

• The () indicator will turn off, and the UTIL indicator will appear on the cluster and the EPB is applied.

• All electric devices are usable but the vehicle cannot be driven.

• The EPB can be canceled by pressing the EPB switch.

Gear cannot be shifted out of P (Park). If a shift attempt is made, a warning message will be displayed on the infotainment system screen.

System deactivation

The Utility mode can be deactivated by pressing the START/STOP button to the OFF position. The function cannot be deactivated from the EV settings.

NOTICE

The infotainment system may change after software updates. For more information, refer to the manual provided in the infotainment system and the quick reference guide.
