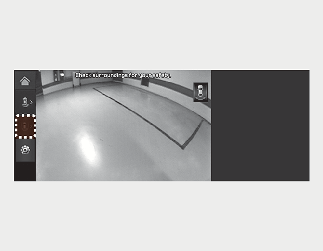

Rear View Monitor operation
Rear view function
Operating conditions
Rear View Monitor will turn on when the following conditions are satisfied:
-
Shifting the gear to R (Reverse).
-
Pressing the View icon with the Rear top view on the screen
Off conditions
Rear View Monitor will turn off when the following conditions are satisfied:
-
Changing the gear from R (Reverse) to P (Park).
Rear View Monitor will not turn off when the vehicle is in R (Reverse).

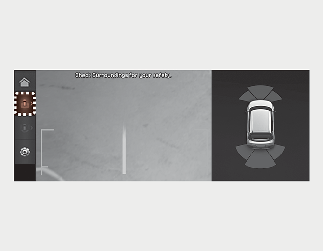

Extended Rear View Monitor
Extended Rear View Monitor function maintains the rear view of the vehicle when shifting the gear from R (Reverse) to N (Neutral) or D (Drive) to help you park safely.
Operating conditions
Rear View Monitor will maintain when the following conditions are satisfied:
-
Shifting the gear from R (Reverse) to N (Neutral) or D (Drive).
-
The vehicle speed is below approximately 10 km/h (6 mph).
Off conditions
Extended Rear View Monitor function will turn off when one the following conditions are satisfied:
-
The vehicle speed is above approximately 10 km/h (6 mph).
-
Shifting the gear to P (Park).
Rear View while driving
The driver is able to check the rear view on the screen while driving, it is to assist with safe driving.
Operating conditions
Rear View while driving will turn on under the following conditions:
-
Pressing the View icon while Extended Rear View Monitor is operating
Off conditions
Rear View while driving will turn off under the following conditions:
-
The gear is shifted to P (Park).
-
The infotainment system button is pressed.

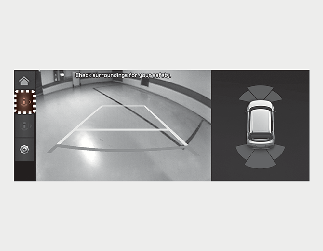

Rear Top View
Rear Top View shows the rear top view of your vehicle when parking for you to check the distance between an object and behind the vehicle.
Rear Top View will turn on under the following conditions:
-
The gear is shifted to R (Reverse) and the icon is selected among the view buttons.
