LCD Display Modes

	Mode
	Trip Computer	Turn By Turn	Driver Assistance	User Settings	Master warning
Up/Down	Consumption Info	Route Guidance	Lane Keeping Assist Smart Cruise Control Lane Following Assist	Head-up display	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Accumulated Info	Destination Info	Driver Attention Warning	Driver Assistance
	Drive Info		TPMS	Door
	Driving Style			Lights
	Energy Flow			Sound
				Convenience
				Service Interval
				Other features
				Reset

The information provided may differ depending on which functions are applicable to your vehicle.

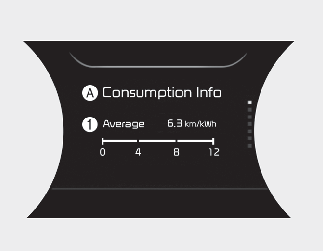

Trip computer mode

A: Consumption Info

Average

The trip computer mode displays information related to vehicle driving parameters average energy consumption info, tripmeter information and vehicle speed.

* For more details, refer to More Details.

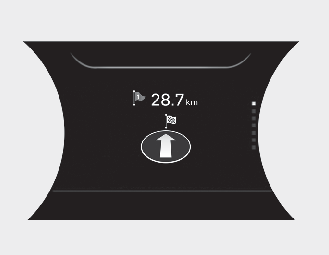

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Driving Assist mode

This mode displays the state of:

Lane Keeping Assist/Smart Cruise Control/Lane Following Assist
Tire Pressure

* For more details, refer to each system information in chapter 7.

Tire pressure status

* For more details, refer to More Details.

Master warning mode

A: Check High Beam Assist (HBA) system

This warning light informs the driver the following situations.

Forward Collision-Avoidance Assist malfunction
Forward Collision-Avoidance Assist radar blocked (if equipped)
Blind-Spot Collision-Avoidance Assist malfunction (if equipped)
Blind-Spot Collision-Avoidance Assist radar blocked (if equipped)
LED headlamp malfunction (if equipped)
Lamp malfunction
High Beam Assist malfunction (if equipped)
Smart Cruise Control malfunction (if equipped)
Smart Cruise Control radar blocked (if equipped)

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display.

If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

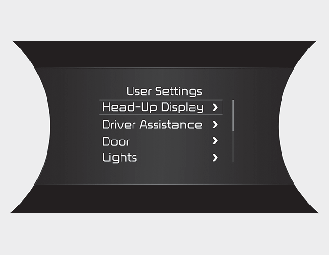

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Head-up display
Driver Assistance
Door
Lights
Sound
Convenience
Service Interval
Other features
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

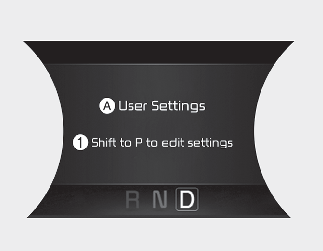

Settings only available in PARK

A: User Settings

Settings only available in PARK

This warning message appears if you try to adjust the User Settings while driving.

For your safety, change the User Settings after parking the vehicle, applying the parking brake and shifting to P (Park).

1. Head-up display (if equipped)

Items	Explanation
Display Height	Adjust the height(1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree(-5~+5) of the HUD rotation.
Brightness	Adjust the intensity(1~20) of the HUD brightness.
Contents Selection	If below items are checked, the items will be activated. Audio/Video info Driving assist info Blind-spot safety info

2. Driver Assistance (if equipped)

Items	Explanation
Driving Convenience	Driver is able to activate or deactivate below functions. Smart Cruise Control Highway Driving Assist Auto Highway Speed Control
Speed Limit	Speed Limit Offset Speed Limit Assist/Speed Assist Warning/Off To adjust the sensitivity of the Smart Cruise Control system. * For more details, refer to More Details.
Warning Volume	High/Medium/Low To select the Warning volume.
Driver Attention Warning	Leading Vehicle Departure Alert To adjust the sensitivity of the Driver Attention Warning. * For more details, refer to More Details.
Forward Safety	Forward Safety Forward Safety Warning Timing Normal/Late * For more details, refer to More Details. Lane Safety * For more details, refer to More Details. Blind-Spot Safety * For more details, refer to More Details. Exit Safety * For more details, refer to More Details.
Parking Safety	Parking Distance Warning Auto On * For more details, refer to More Details. Rear Cross-Traffic Safety * For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

3. Door

Items	Explanation
Auto Lock	Disable: The auto door unlock operation will be canceled. Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph). Enable on shift: All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (with the vehicle ON, it is activated.)
Auto Unlock	Disable: The auto door unlock operation will be canceled. Vehicle Off: All doors will be automatically unlocked when the motor Star/Stop button is set to the OFF position. On shift to P: All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (with the vehicle ON, it is activated.)

* The information provided may differ depending on which functions are applicable to your vehicle.

4. Lights

Items	Explanation
One touch turn indicator	Off: The one touch turn signal function will be deactivated. 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Shifter Light Brightness (if equipped)	To select the brightness of the shifter light. (Level 1~4)
Shifter Light Color (if equipped)	To select the color of the shifter light. (White/Grey/Blue/Green/Bronze/Red)
Head Lamp Delay	If this item checked, the head lamp delay function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Convenience (if equipped)

Items	Explanation
Utility Mode	To activate the utility mode. When activated, electric devices in the vehicle is operated using the high voltage battery * For more details, refer to More Details.
Lock Charging Cable	This function can be selected one of two menus. Always mode While charging mode
Welcome Mirror/Light	If this item is checked, the welcome mirror/light function will be activated.
Wireless charging system	If this item is checked, the wireless charging system function will be activated.
Wiper/Lights Display	If this item is checked, the Wiper/Lights Display will be activated.
Auto rear wiper (reverse)	If this item is checked, the Auto rear wiper will be activated.
Smart recuperation	If this item is checked the Smart recuperation function will be activated.When activated, the regeneration level is adjusted automatically according to the current driving situation. * For more details, refer to More Details.
Icy Road Warning	If this item is checked, the Icy Road Warning function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Service Interval

Items	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

7. Other features (if equipped)

Items	Explanation
Energy consumption auto reset	Off: The average energy consumption info will not reset automatically whenever recharging. After Ignition: The average energy consumption info will reset automatically whenever it has passed 4 hours after turning OFF the vehicle. After Recharging: The average energy consumption info will reset automatically when recharging. * For more details, refer to More Details.
Speedometer Unit	km/h or MPH To select the Speedometer unit.
Consumption Unit	km/kWh or kWh/100km To select the Consumption unit.
Temperature Unit	°C/°F To select the temperature unit.
Tire Pressure Unit	psi/kPa/bar To select the tire pressure unit.

* The information provided may differ depending on which functions are applicable to your vehicle.

8. Reset

Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
