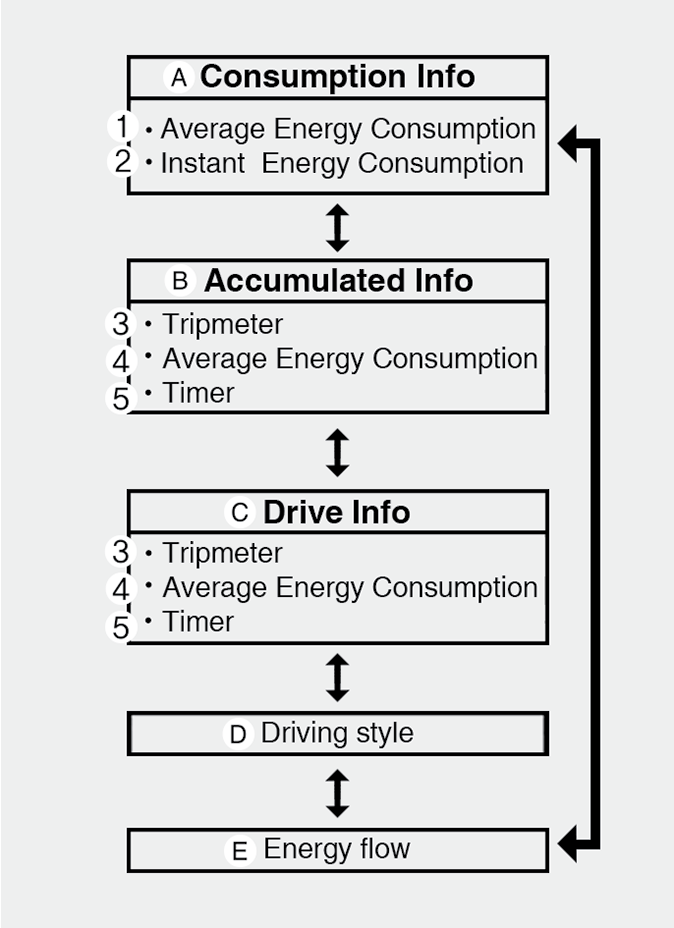

Trip Modes

A: Consumption Info

B: Accumulated Info

C: Drive Info

D: Driving Style

E: Energy flow

1. Average Energy Consumption

2. Instant Energy Consumption

3. Tripmeter

4. Average Energy Consumption

5. Timer

To change the trip mode, scroll the toggle the switch (/) on the steering wheel.

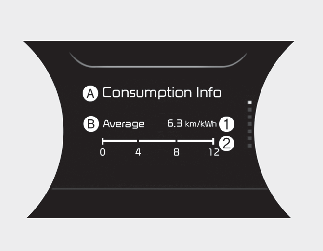

Consumption info display

Average Energy Consumption (1)

A: Consumption Info

B: Average

• The average energy consumption is calculated by the total driving distance and the high voltage battery consumption since the last average energy consumption reset.

• The average energy consumption can be reset both manually and automatically.

Manual reset

To clear the average energy consumption manually, press the OK button on the steering wheel for more than 1 second when the average energy consumption is displayed.

Automatic reset

To automatically reset the average energy consumption select either menu from the ‘Energy Consumption Reset' in the User Settings mode on the LCD display.

• After ignition: The average energy consumption will reset automatically whenever it has passed 4 hours after turning OFF the vehicle.

• After recharging: The average energy consumption will reset automatically when driving speed exceeds 1 km/h (1 mph), after recharging more than 10%.



  NOTICE

  The vehicle must be driven for a minimum of 300 meters (0.19 miles) since the last ignition key cycle before the average energy consumption will be recalculated.

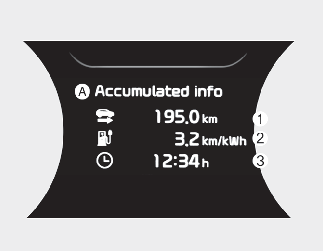

Accumulated Info display

A: Accumulated Info

This display shows the accumulated trip distance (1), the average energy consumption (2), and the total driving time (3).

The information is accumulated starting from the last reset.

To reset the details, press and hold the OK button when viewing the Accumulated driving info. The trip distance, the average energy consumption, and total driving time will reset simultaneously.

The accumulated driving information will continue to be counted while the vehicle is in the ready () mode (for example, when the vehicle is in traffic or stopped at a stop light).

NOTICE

The vehicle must be driven for a minimum of 300 meters (0.19 miles) since the last ignition key cycle before the average accumulated driving information is recalculated.

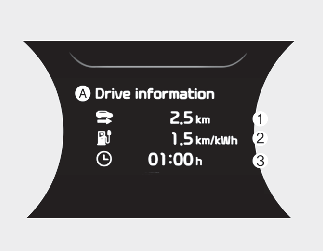

Drive Info display

A: Drive Information

This display shows the trip distance (1), the average energy consumption (2), and the total driving time (3).

The information is combined for each ignition cycle. However, when the vehicle has been OFF for 4 hours or longer the Drive Info screen will reset.

To reset the details, press and hold the OK button when viewing the Drive Info. The trip distance, the average energy consumption, and total driving time will reset simultaneously.

The driving information will continue to be counted while the vehicle is in the ready () mode (for example, when the vehicle is in traffic or stopped at a stop light).

NOTICE

The vehicle must be driven for a minimum of 300 meters (0.19 miles) since the last ignition key cycle before the driving information is recalculated.

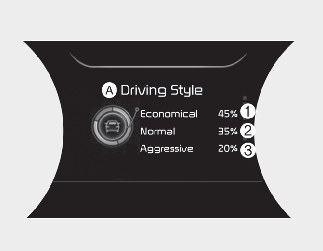

Driving style

A: Driving Style

1. Economical

2. Normal

3. Aggressive

This display shows whether the driver's driving style is Economical, Normal or Aggressive.

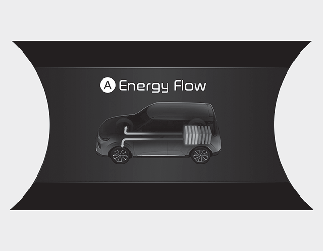

Energy flow

A: Energy flow

The electric vehicle system informs the drivers its energy flow in various operating modes. While driving, the current energy flow is specified in 3 modes.
