Charging Time Information
* Depending on the condition and durability of high voltage battery, charger specifications, and ambient temperature, the time required for charging the high voltage battery may vary.
|
Charging Type |
City-Type |
Cruise-Type |
|
|---|---|---|---|
|
AC Charge |
Takes about 6 hours and 10 minutes at room temperature. (Can be charged from 10% to 80%) |
Takes about 9 hours and 35 minutes at room temperature. (Can be charged from 10% to 80%) |
|
|
DC Charge |
100kW-level charger |
Takes about 47 minutes at room temperature to 80% of SOC. (Can be charged from 10% to 80%) |
Takes about 47 minutes at room temperature to 80% of SOC. (Can be charged from 10% to 80%) |
|
50kW-level charger |
Takes about 48 minutes at room temperature to 80% of SOC. (Can be charged from 10% to 80%) |
Takes about 64 minutes at room temperature to 80% of SOC. (Can be charged from 10% to 80%) |
|
|
Trickle Charge |
Takes about 19 hours at room temperature. (Can be charged to 100%) |
Takes about 31 hours at room temperature. (Can be charged to 100%) |
|
-
Actual charger image and charging method may vary in accordance with the charger manufacturer.
-
For your safety, your vehicle may stop charging if the external charger is outdated or defective. Try charging the vehicle using a different charger that works properly.
-
Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temperature, the time required for charging the high voltage battery may vary.
* : Depending on your region, ICCB cable for trickle charge may not be provided in your vehicle.
|
Category |
Charging Inlet (Vehicle) |
Charging Connector |
Charging Outlet |
How to Charge |
Charging Time |
|---|---|---|---|---|---|
|

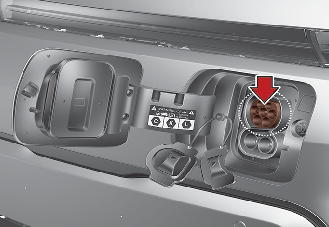

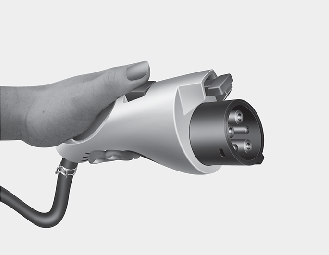

AC Charge |
 |
 |
 |

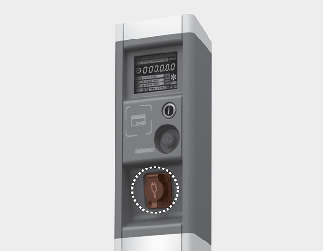

Use the AC Charger installed at home or public charging station |
City-Type: Approx. 4 hours and 30 minutes Cruise-Type: Approx. 7 hours
|
|

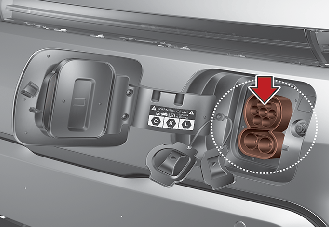

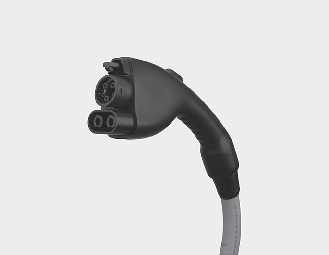

DC Charge |
 |
 |
 |

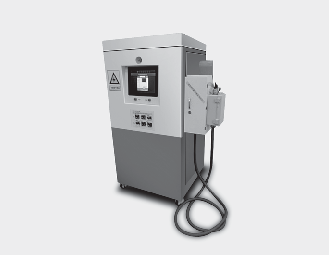

Use the DC Charger at public charging station |
City-Type: Approx. 54 minutes (100kW) Approx. 57 minutes(50kW) Cruise-Type: Approx. 54minutes (100kW) Approx. 75 minutes (50kW)
|
|

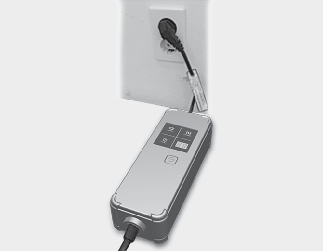

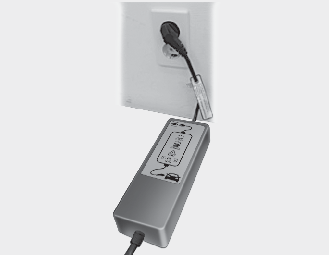

Trickle Charge* |
|
|
Type A
 Type B
 |
Use household current |
City-Type: Approx. 19 hours Cruise-Type: Approx. 31 hours
|
