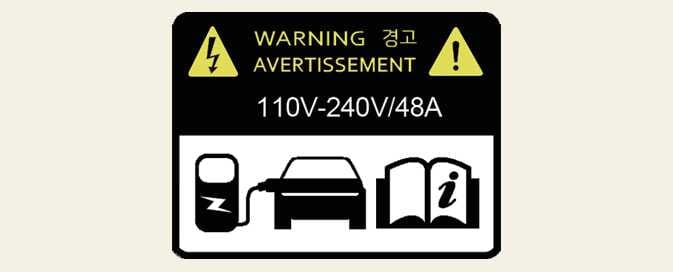

How to check the symbol on the charging label: (if equipped)
|

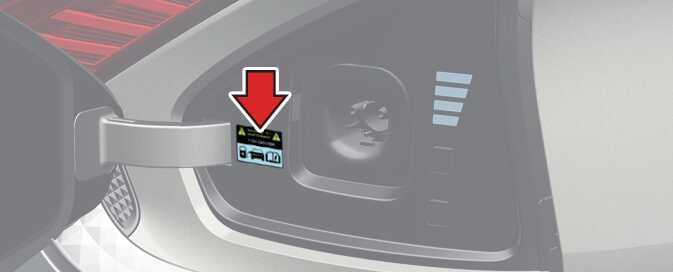

Vehicle charging INLET |
|
|---|---|
 OCVQ014015N |
 OCV081009L |
Precautions for charging AC and Portable charger
-
After opening the charging door, check the charging voltage and current in the middle of the warning label.
-
After checking the charging voltage and current, proceed to the charging step.
-
Using the charging connector with an unmatched symbol poses the risk of failure, fire, injury, and so on.

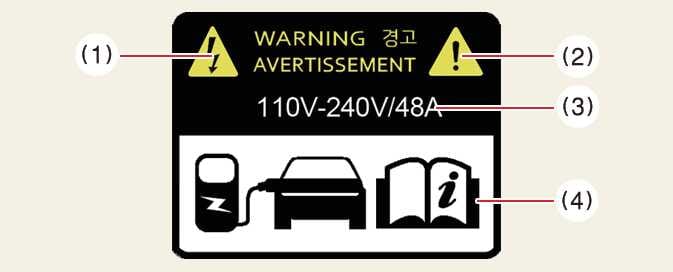

Electric charging label
 OCV035006N |
The electric charging label is attached to the charging door.
1–2: Warning for high voltage
3: Charging voltage and current
4: Identifier for charging door.
