Forward Collision-avoidance Assist (FCA) (Sensor Fusion)

Basic function

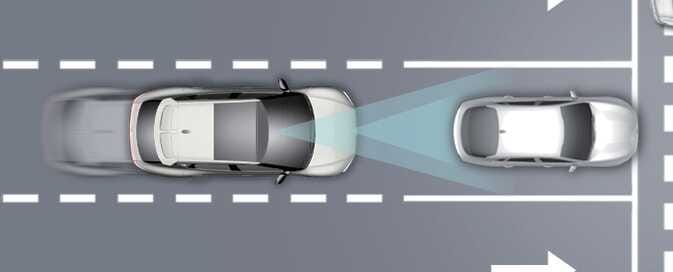

OCV051019L

Forward Collision-Avoidance Assist can detect a vehicle, motorcycle, pedestrian, or cyclist ahead on the road. It may warn you of a possible collision using a warning sound and a warning message on the instrument cluster. Also, Forward Collision-Avoidance Assist may assist with braking your vehicle to help reduce collision speed or avoid a collision.

Forward Collision-Avoidance Assist will detect vehicles ahead and adjacent lanes even at high speeds. If the driver makes a lane change at those speeds, your vehicle will apply emergency braking to mitigate or avoid a collision.: (if equipped)

Junction Turning function

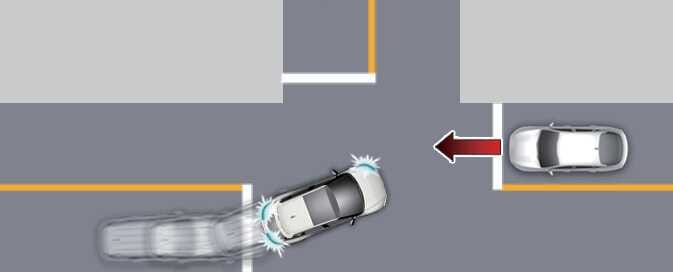

OCV051020L

Junction Turning function can help avoid a collision with an oncoming vehicle, powered two-wheeler and cyclist in an adjacent lane when turning left at a crossroad with the turn signal on by applying emergency braking.

Junction Crossing function: (if equipped)

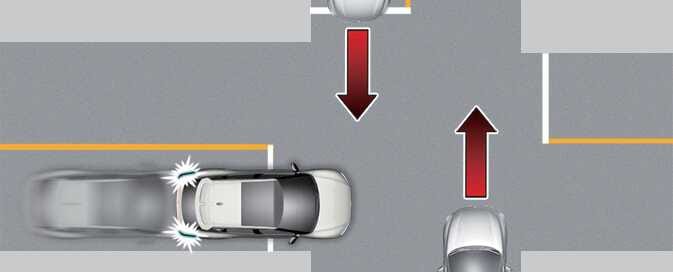

OCV052232

Junction Crossing function will help avoid a collision with oncoming vehicles on the left or right side when crossing an intersection by applying emergency braking.

Direct Oncoming function

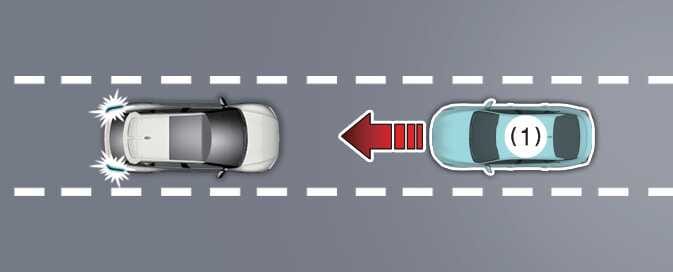

OCV105001N

  1. Oncoming vehicle

Direct Oncoming function helps reduce the speed at the collision when with a vehicle or powered two-wheeler approaching from the opposite side is detected.

Lane-Change Oncoming function: (if equipped)

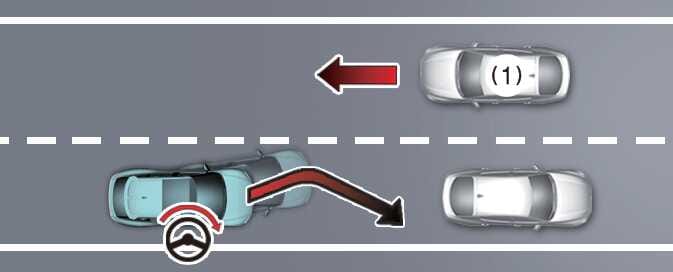

OCV105002N

  1. Oncoming vehicle

Lane-Change Oncoming function will help avoid a collision with oncoming vehicles or powered two-wheelers when changing lanes by assisting the driver’s steering.

Lane-Change Side function: (if equipped)

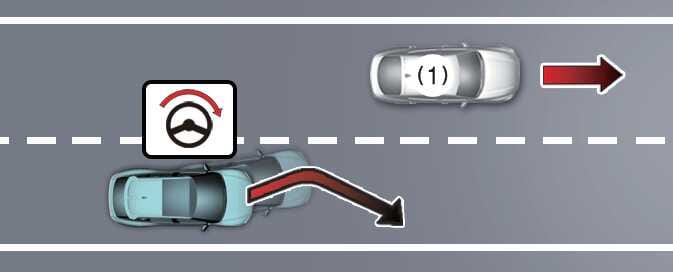

OCV105003N

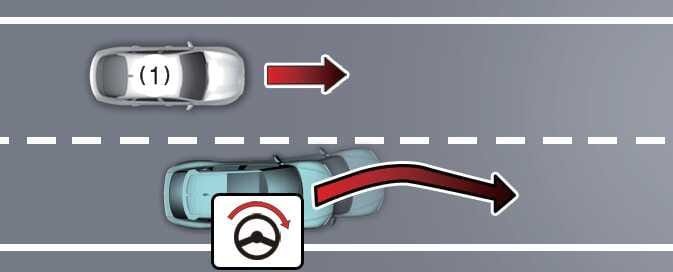

OCV105004N

  1. Approaching car from side

Lane-Change Side function will help avoid a collision with vehicles or powered two-wheelers in the next lane when changing lanes by assisting the driver’s steering.

Evasive Steering Assist function: (if equipped)

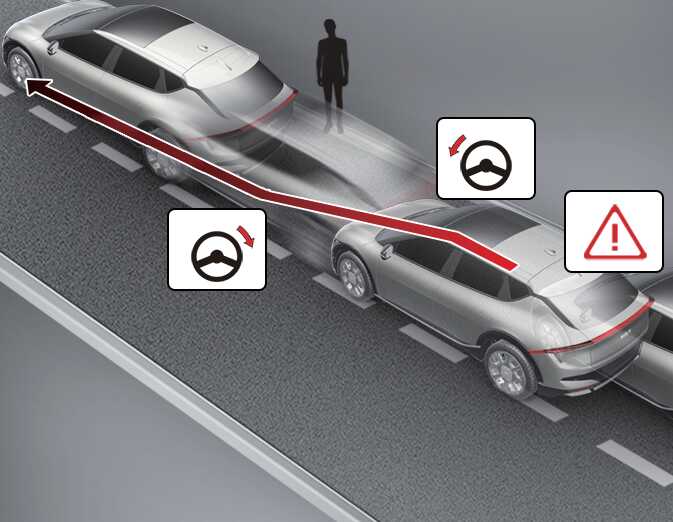

OCV054085L

  • Driver steering assist

    If a possible collision with a vehicle ahead, pedestrians, cyclists and powered two-wheeler is detected and the driver steers to avoid the collision, Evasive Steering Assist will assist the driver in steering.

  • Evasive steering assist

    Evasive Steering Assist function will help avoid a collision with a vehicle, pedestrian cyclist, or powered-two wheeler in front of the car in the same lane. When a risk of collision is detected, Evasive Steering Assist function will warn the driver and assist the driver’s steering if they move the steering wheel.

    Evasive Steering Assist function operates when there is a collision risk and sufficient operating area between your vehicle and the detected pedestrian or cyclist ahead.

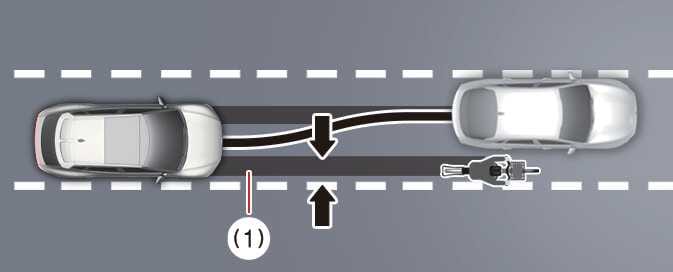

    OCV105071N

    1. Operating Area of Evasive Steering Assist function

Detection sensor

Please refer to Detecting sensor(s) for the applicable sensors and their locations.

CAUTION

  • Never damage or disassemble the detection sensor or sensor assembly.

  • If the detection sensors have been replaced or repaired, have the vehicle inspected by an authorized Kia dealer.

  • If the radar or around the radar experiences an impact, Forward Collision-Avoidance Assist may not operate properly even if a warning message is not displayed on the cluster. Have the vehicle inspected by an authorized Kia dealer.

  • Never install any accessories or stickers on the front windshield, or tint the front windshield.

  • Be extremely careful to keep the front view camera dry.

  • Never place any reflective objects (for example, white paper or a mirror) over the instrument cluster.

  • Do not place any objects near the front windshield or install any accessories on the front windshield. It can affect the performance of the defogging and defrosting function of the climate control system, which may prevent the Driver Assistance systems from operating.

  • Do not apply a license plate frame or objects (such as a bumper sticker, film, or a bumper guard), near the front radar cover.

  • Always keep the front radar cover clean and free of dirt and debris.

    Use only a soft cloth to wash the vehicle. Do not spray pressurized water directly on the sensor or sensor cover.

  • If you apply paint on or change the front, front corner and/or rear corner radar sensor cover, Forward Collision-Avoidance Assist may not function properly.

    Use only Kia genuine parts or those of an equivalent standard with proven quality and performance to repair or replace the radar sensor covers.

  • The function may not work properly if the bumper was replaced, or the surroundings of the front corner radar or rear corner radar were damaged or paint was applied.

  • If you install a trailer or carrier, this may adversely affect the performance of Forward Collision-Avoidance Assist and prevent it from operating properly.

  • Do not arbitrarily attach objects (accessories, moldings, stickers, films, packaging materials, etc.) to the detection sensor or its surroundings, or paint the bumper.
