Detecting sensor(s)

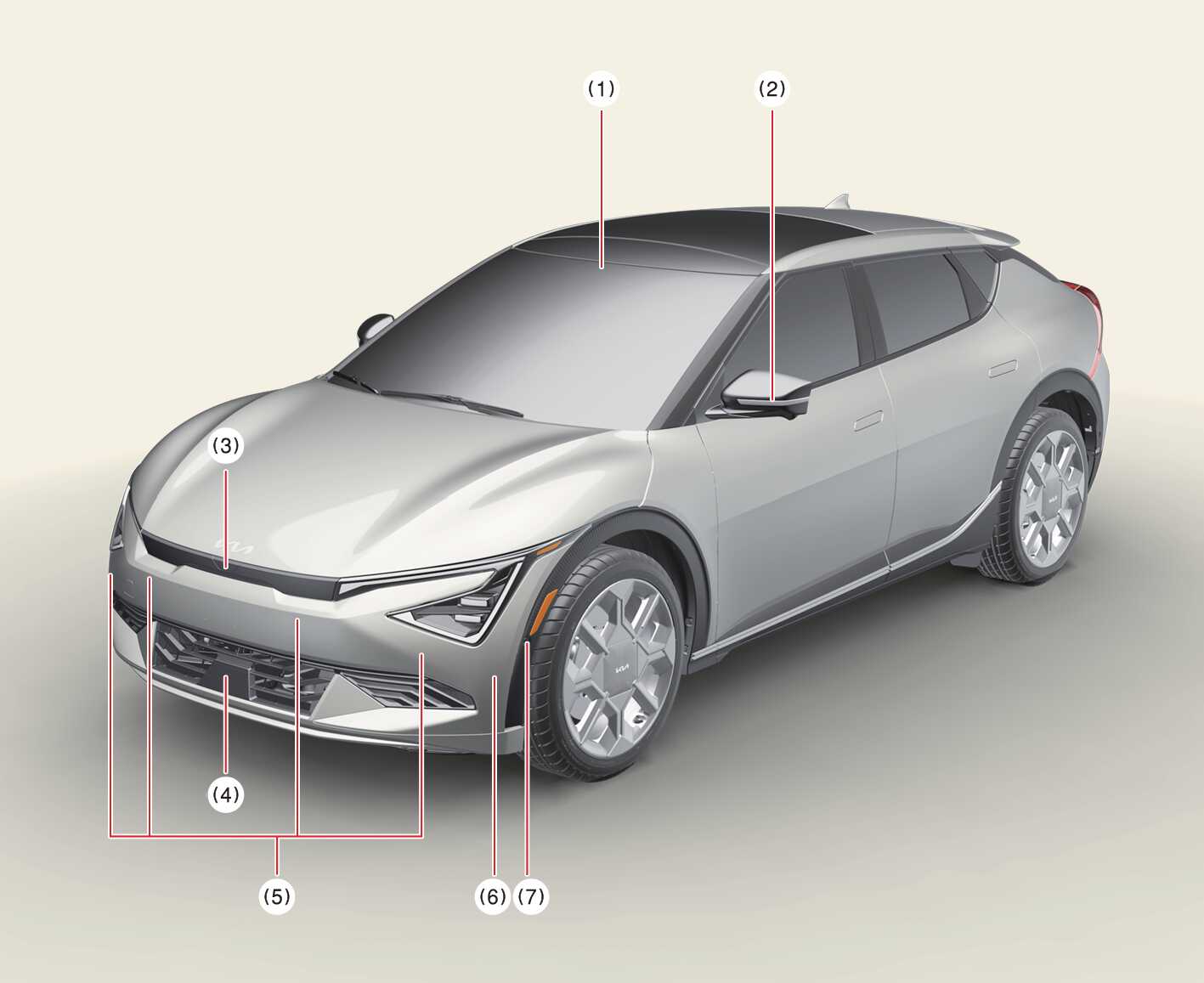

Figure 1. Front view
OCV105065N

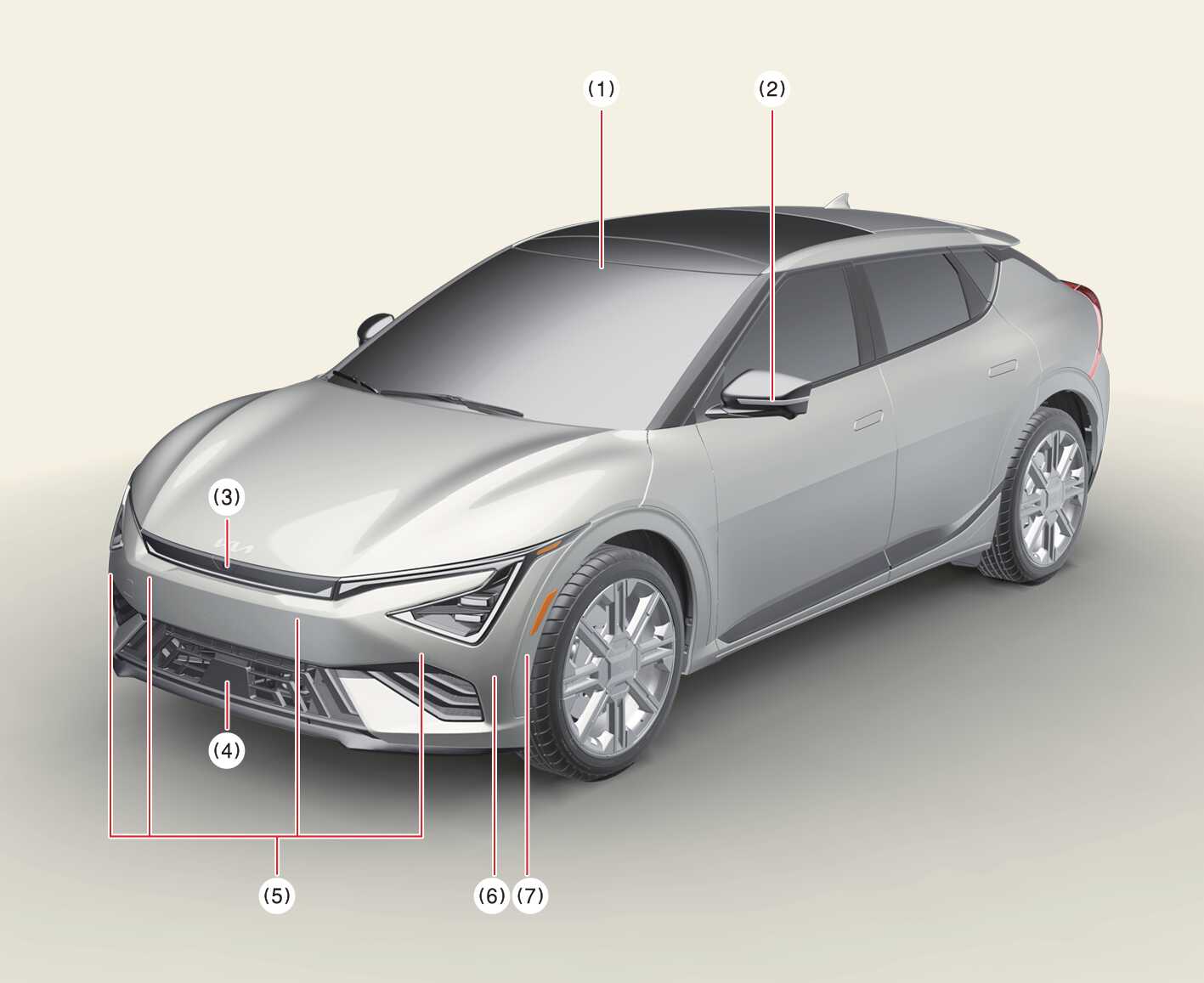

Figure 2. GT-Line Front view
OCVGT105011N

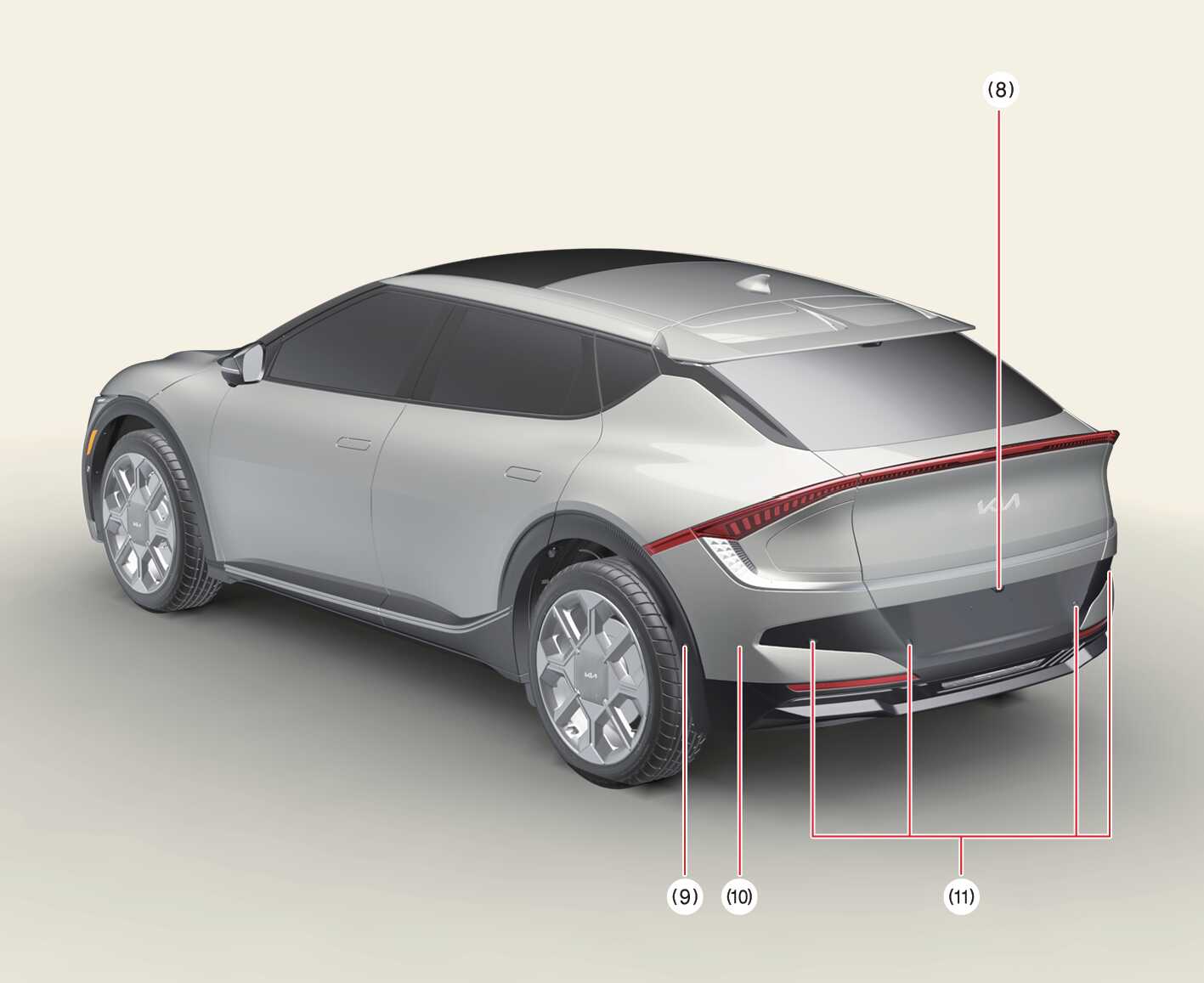

Figure 3. Rear view
OCV105066N

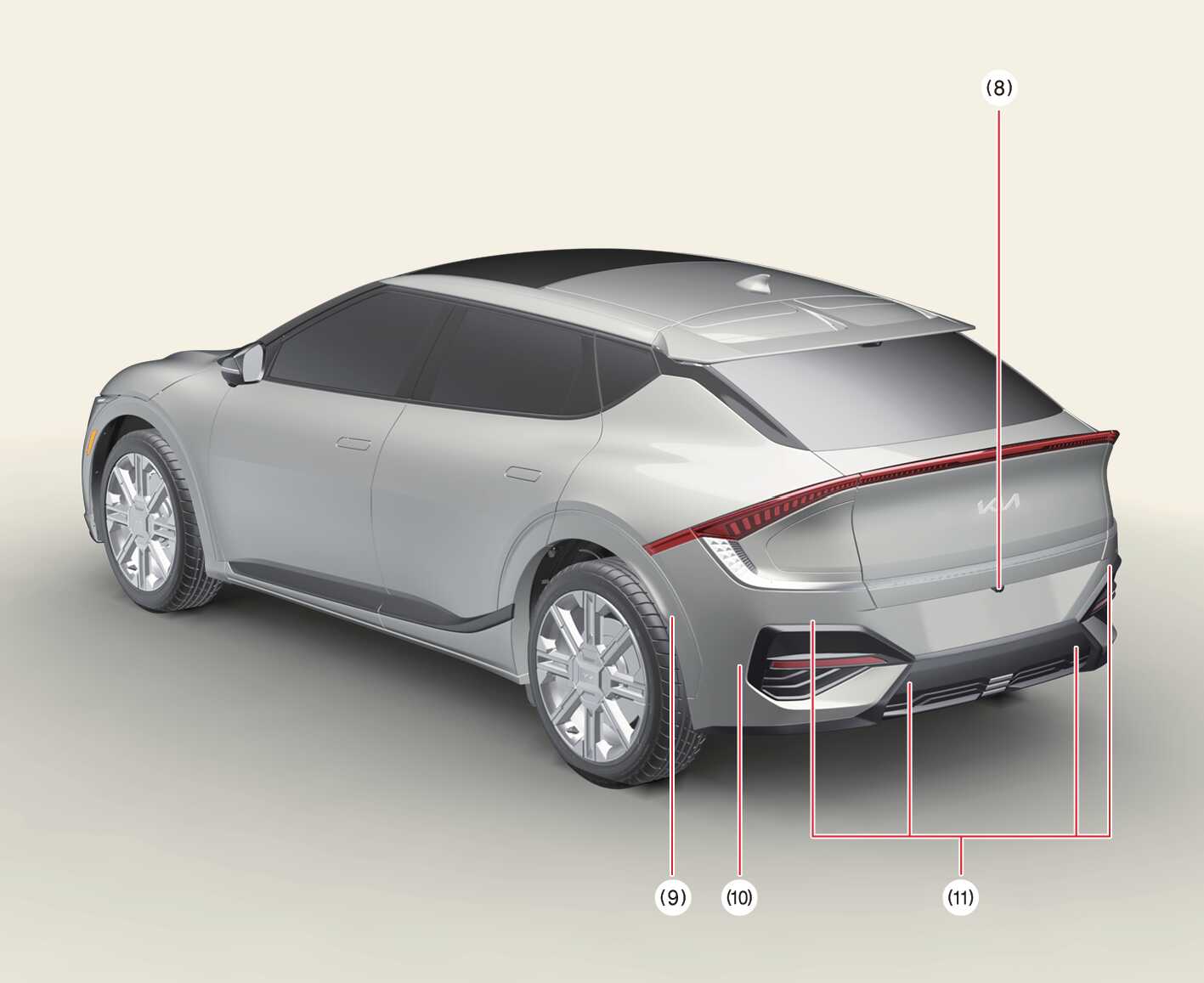

Figure 4. GT-Line Rear view
OCVGT105012N

Refer to the picture above for the detailed location of the detecting sensors.

*: if equipped

No

Sensor

Function

(1)

Front view camera

  • High Beam Assist (HBA)*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Lane Keeping Assist (LKA)

  • Intelligent Speed Limit Assist (ISLA)*

  • Driver Attention Warning (DAW)

  • Smart Cruise Control (SCC)

  • Lane Following Assist (LFA)

  • Highway Driving Assist (HDA)

(2)

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

(3)

Wide-front view camera*

  • Surround View Monitor (SVM)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

(4)

Front radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

(5)

Front ultrasonic sensors

  • Parking Distance Warning (PDW)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

(6)

Front corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

(7)

Front side ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

(8)

Wide Rear View camera

  • Rear View Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

(9)

Rear side ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

(10)

Rear corner radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Blind-Spot Collision-Avoidance Assist (BCA)*

  • Safe Exit Warning (SEW)*

  • Highway Driving Assist (HDA)*

  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)*

(11)

Rear ultrasonic sensors

  • Parking Distance Warning (PDW)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*
