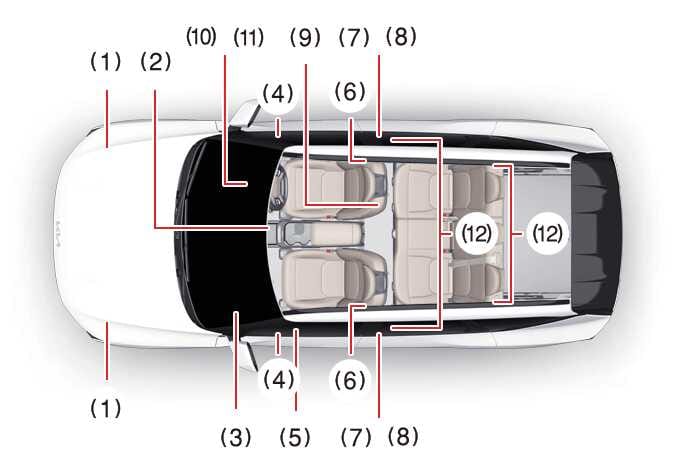

SRS components and functions

OOV025040R

  1. Front impact sensors

  2. SRS control module (SRSCM)/rollover sensor

  3. Passenger's front airbag module

  4. Side pressure sensors

  5. Passenger air bag on/off switch

  6. Side airbag modules

  7. Curtain airbag modules

  8. Side impact sensors

  9. Driver's centre airbag module

  10. Air bag warning light

  11. Driver's front airbag module

  12. Retractor pre-tensioner assemblies

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

Operating conditions

  • When EV button is in POWER ON position, the SRS air bag warning light will appear for approximately 6 seconds and go out.

WARNING

If any of the following conditions occurs, this indicates a malfunction of the SRS. In this case, have the system inspected by a professional workshop. Kia recommends that you visit an authorised Kia dealer/service partner.

  • The light does not turn on briefly when you turn the vehicle ON.

  • The light stays on after illuminating for approximately 6 seconds.

  • The light comes on whilst the vehicle is in motion.

  • The light blinks when the vehicle is in POWER ON position.
